1976 Yamaha TZ350 (TZ350C) Shifter 2 Diagram

← All diagrams

Find the part on the Shifter 2 diagram for your 1976 Yamaha TZ350 (TZ350C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

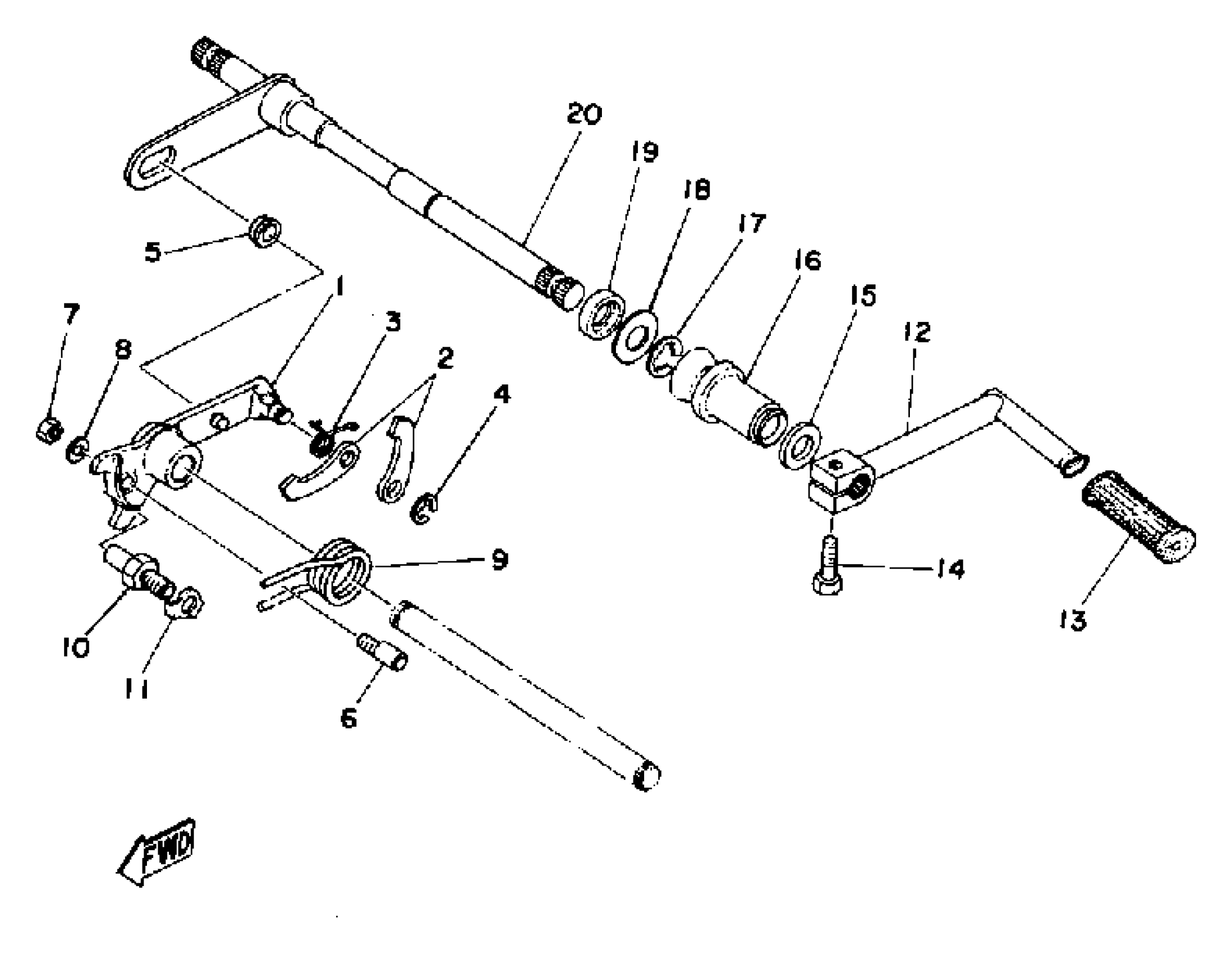

1976 Yamaha TZ350 (TZ350C) Shifter 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET

328-18128-00-00

1
Out of stock

2

LEVER, SHIFT 3

(328-18151-00-00)

1
Out of stock

3

SPRING, TORSION

90508-08007-00

1
Out of stock

4

CIRCLIP

99080-07600-00

1

$2.89

In stock

5

ROLLER, SHIFT LEVER

214-18178-00-00

1
Out of stock

6

SCREW 214181860000

90149-06017-00

1
Out of stock

7

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

8

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

9

SPRING, TORSION

90508-32055-00

1
Out of stock

10

STOPPER, SCREW

278-18127-01-00

1
Out of stock

11

WASHER

90215-08015-00

1
Out of stock

12

PEDAL, SHIFT

(1H3-18111-00-93)

1
Out of stock

13

COVER

240-18113-00-00

1
Out of stock

14

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

15

SEAL, CHANGE SHAFT

170-18132-00-00

1
Out of stock

16

BOOT, SEALING

278-18131-00-00

1
Out of stock

17

CIRCLIP

99006-10600-00

—

$6.91

In stock

18

WASHER, PLATE (353)

90201-12575-00

—
Out of stock

19

SEAL, OIL (30X)

93102-12321-00

—

$10.14

In stock

20

CHANGE SHAFT ASSEMBLY

383-18101-01-00

1
Out of stock
