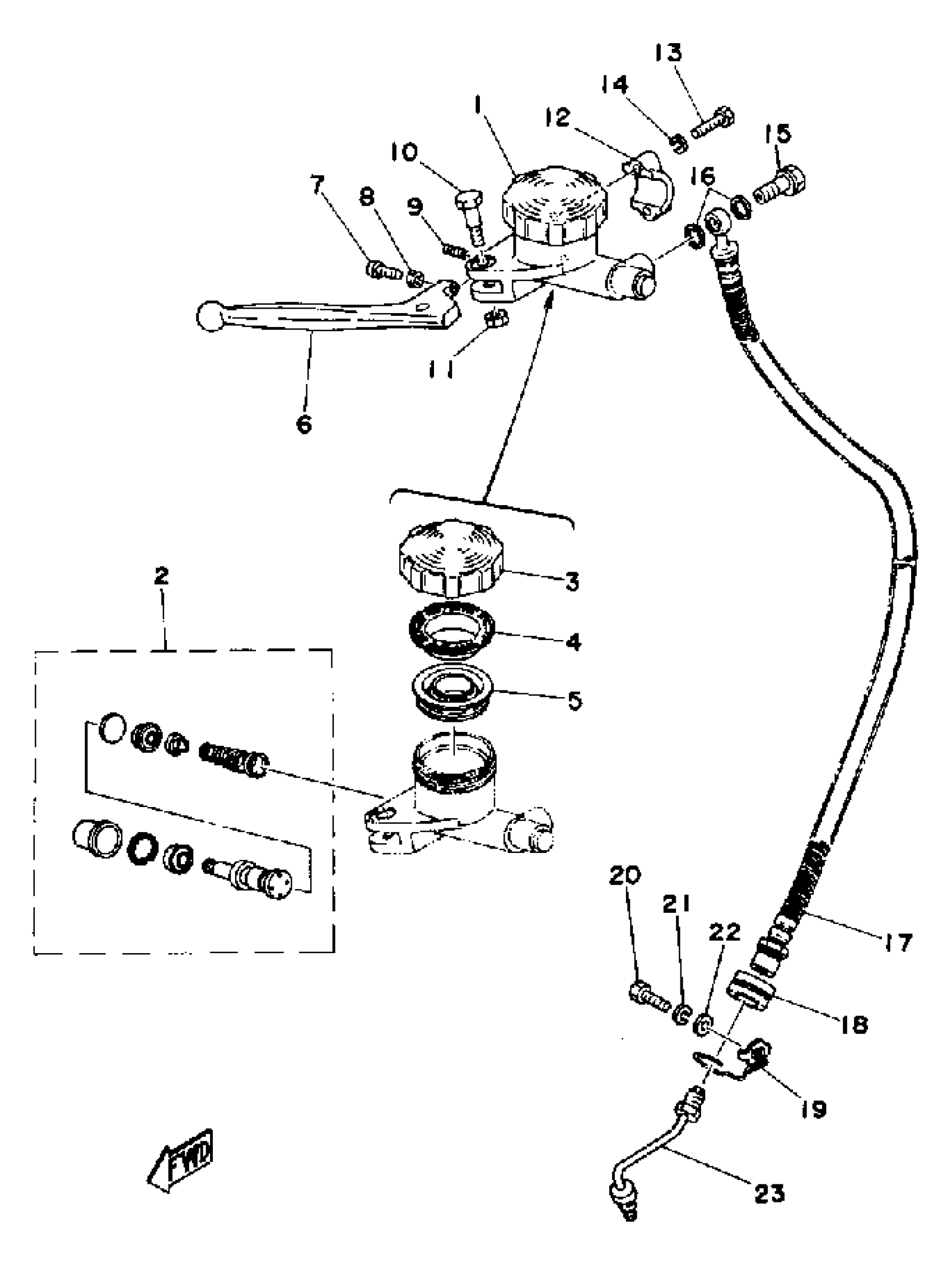

Yamaha TZ350C (TZ350) 1976 MASTER CYLINDER - BRAKE HOSE Diagram

#

Description
Price

1

MSTR CYLINDER ASSEMBLY

(1H3-25850-00-00)

Unavailable

2

. CYLINDER KIT, MASTER (REF NO 3~9)

535-W0041-10-00

Unavailable

3

CAP, RESERVOIR

(409-25852-00-00)

Unavailable

4

BUSH, DIAPHRAGM

(409-25855-00-00)

Unavailable

5

DIAPHRAGM RESERVOR

(409-25854-00-00)

Unavailable

6

LEVER R

(341-83922-00-00)

Unavailable

7

SCREW

90146-06005-00

Unavailable

8

NUT HEXAGON 306839270000

90170-06010-00

$8.49

9

SPRING COMPRESSION306839240000

90501-10312-00

$8.49

10

BOLT (4L0)

90109-06577-00

$5.60

11

NUT(650)

95380-06700-00

$8.49

12

BRACKET, MASTER

1J3-25867-00-00

Unavailable

13

BOLT, HEXAGON

97017-06025-00

$4.24

14

WASHER, SPRING

92995-06100-00

Unavailable

15

BOLT, UNION(3GM)

90401-10159-00

$11.49

16

WASHER, PLATE(481)

90201-10118-00

Unavailable

17

UNAVAILABLE IN PRICE BOOK

409-25873-04-00

Unavailable

18

PROTECTOR, BRAKE HOSE

341-25881-00-00

Unavailable

19

HOLDER, BRKE HOSE 1

(1H3-25875-00-00)

Unavailable

20

BOLT, HEXAGON

97017-06020-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

WASHER, PLAIN (646)

92990-06600-00

Unavailable

23

PIPE, BRAKE

(1H3-25871-00-00)

Unavailable
