1976 Yamaha TZ350 (TZ350C) Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1976 Yamaha TZ350 (TZ350C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

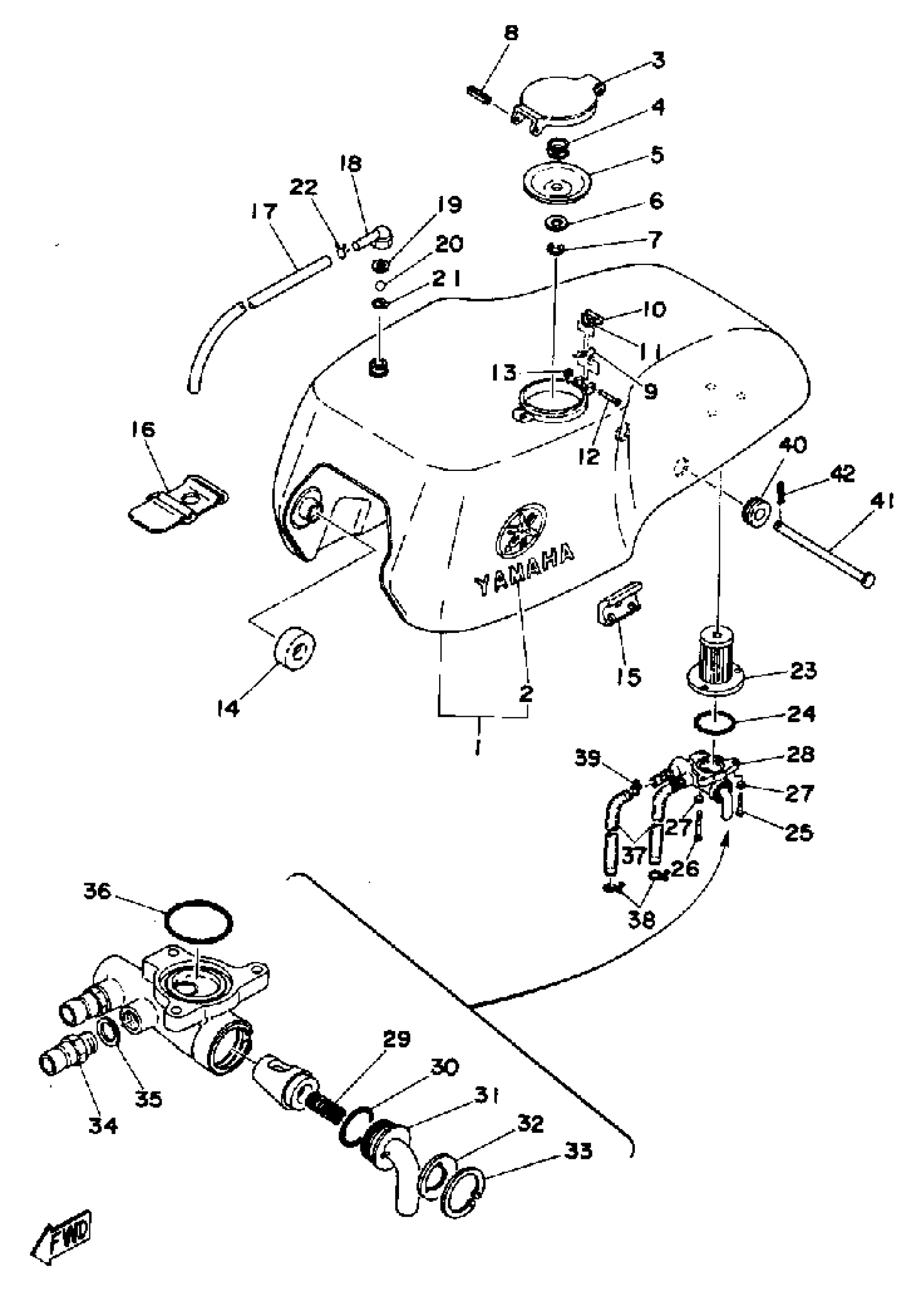

1976 Yamaha TZ350 (TZ350C) Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

(1H3-24110-02-01)

1
Out of stock

2

EMBLEM 1

240-24161-00-00

1
Out of stock

3

. BODY, CAP

294-24611-00-00

1
Out of stock

4

SPRING, CAP

90501-20130-00

1

$6.80

In stock

5

. GASKET, CAP

294-24612-00-00

1
Out of stock

6

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

7

CIRCLIP(53L)

99001-06600-00

1

$0.70

In stock

8

PIN, SPRING (6H4)

91690-30020-00

1

$3.07

In stock

9

SPRING, TORSION (256-24637-00)

90508-08223-00

1
Out of stock

10

HOOK

256-24628-00-00

1
Out of stock

11

O-RING (26H)

93210-06632-00

1

$6.68

In stock

12

PIN, SPEC''L SHAPE

90249-03016-00

1
Out of stock

13

CIRCLIP (604)

93430-02001-00

1

$6.69

In stock

14

DAMPER, LOCATING 1

3TB-24181-00-00

1

$12.29

In stock

15

DAMPER,LOCATING 1

240-24181-00-00

1

$11.58

In stock

16

BAND, TNK FITTING 1

240-24173-00-00

1
Out of stock

17

HOSE (MAXI MAROON)

(90446-06007-00)

1
Out of stock

18

NUT, BREATHER

143-24681-00-00

1
Out of stock

19

GASKET

(90430-10028-00)

1
Out of stock

20

BALL, VALVE

143-24684-00-00

1
Out of stock

21

CLIP, BALL HOLDER

143-24685-00-00

1
Out of stock

22

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock

23

STRAINER

(294-24167-00-00)

1
Out of stock

24

O-RING

(93210-38146-00)

1
Out of stock

25

SCREW, FLAT HEAD (E22)

98780-04520-00

1
Out of stock

26

SCREW, FLAT HEAD

(98701-04035-00)

1
Out of stock

27

WASHER, EX.TOOTH

(92901-04500-00)

1
Out of stock

28

FUEL COCK ASSEMBLY 1

(240-24500-01-00)

1
Out of stock

29

. SPRING

(145-24529-00-00)

1
Out of stock

30

. SEAL, COCK

(240-24534-00-00)

1
Out of stock

31

. LEVER, COCK

(240-24524-00-00)

1
Out of stock

32

. PLATE, LVR FITTING

(240-24525-00-00)

1
Out of stock

33

. BRACKET, FUEL COCK

(240-24544-00-00)

1
Out of stock

34

. NIPPLE

(240-24537-00-00)

1
Out of stock

35

. GASKET

(240-24528-00-00)

1
Out of stock

36

. GASKET

(145-24512-00-00)

1
Out of stock

37

HOSE

(90445-11313-00)

1
Out of stock

38

CLIP

90467-100A1-00

—
Out of stock

39

CLIP(1JH)

90467-11106-00

—
Out of stock

40

GROMMET(87A)

90480-20527-00

—

$10.06

In stock

41

UNAVAILABLE IN PRICE BOOK

91701-05138-00

1
Out of stock

42

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock
