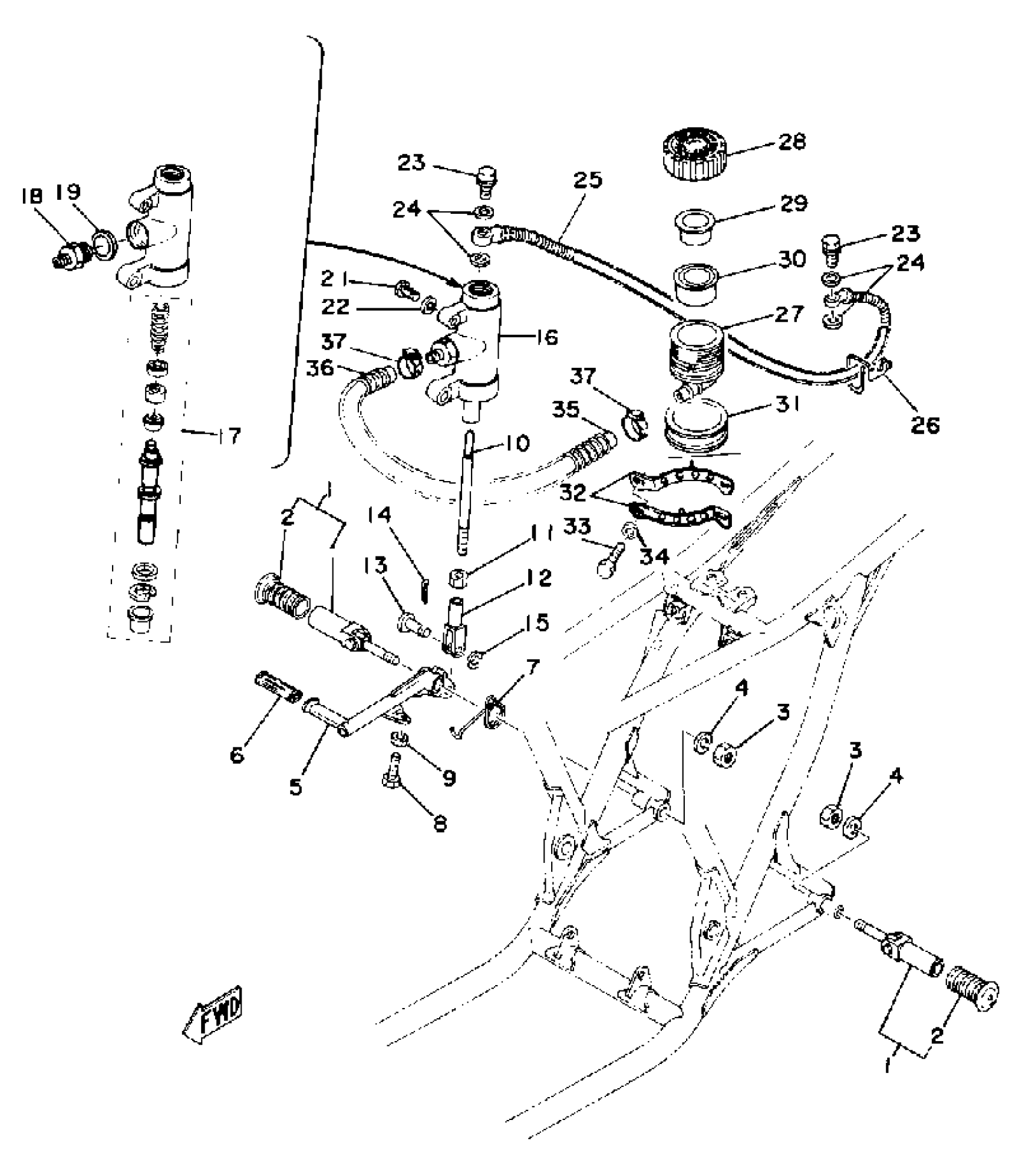

Yamaha TZ350C (TZ350) 1976 BRAKE PEDAL - MASTER CYLINDER Diagram

#

Description
Price

1

FRT FOOTREST ASY L

5F6-27410-10-00

Unavailable

2

. COVER, FOOTREST

240-27413-00-00

Unavailable

3

NUT, SPEC''L SHAPE

(90179-10173-00)

Unavailable

4

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

4

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

5

PEDAL, BRAKE

(1H3-27211-00-00)

Unavailable

6

COVER

240-18113-00-00

$18.49

7

SPRING, TORSION

(90508-23304-00)

Unavailable

8

BOLT, HEXAGON

97017-06025-00

$4.24

9

NUT(650)

95380-06700-00

$8.49

10

ROD, BRAKE

(1H3-27231-00-00)

Unavailable

11

. NUT

95380-08700-00

Unavailable

12

JOINT

(409-27222-00-00)

Unavailable

13

PIN, SPEC''L SHAPE

(90249-08085-00)

Unavailable

14

PIN, COTTER

91490-20025-00

$1.99

15

CIRCLIP(53L)

99001-06600-00

Unavailable

16

MSTR CYLINDER ASSEMBLY

(409-25850-50-00)

Unavailable

17

. CYLINDER KIT, MASTER

409-W0042-50-00

Unavailable

18

BOLT, UNION

(409-25899-50-00)

Unavailable

19

GASKET

(409-25898-50-00)

Unavailable

21

BOLT, FLAT HD.DRILL

(95201-08030-00)

Unavailable

22

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

23

BOLT, UNION(3GM)

90401-10159-00

Unavailable

24

WASHER, PLATE(481)

90201-10118-00

Unavailable

25

HOSE, BRAKE 1

(409-25872-50-00)

Unavailable

26

HOLDER, BRKE HOSE 1

(409-25875-50-00)

Unavailable

27

TANK, RESERVOIR

(1H3-25894-00-00)

Unavailable

28

CAP, RESERVOIR

2KF-25852-50-00

Unavailable

29

BUSH,DIAPHRAGM

2GU-25855-00-00

Unavailable

30

DIAPHRAGM, RESERVER

360-25854-01-00

Unavailable

31

DAMPER

(1H3-25897-00-00)

Unavailable

32

HOSE, BRAKE

(1H3-25874-00-00)

Unavailable

33

BOLT (661)

97013-06012-00

Unavailable

34

WASHER, SPRING

92995-06100-00

Unavailable

35

HOSE

(90445-15324-00)

Unavailable

36

SPRING, COMPRESSION

(90504-10022-00)

Unavailable

37

BAND, HOSE 15

90601-11525-00

Unavailable
