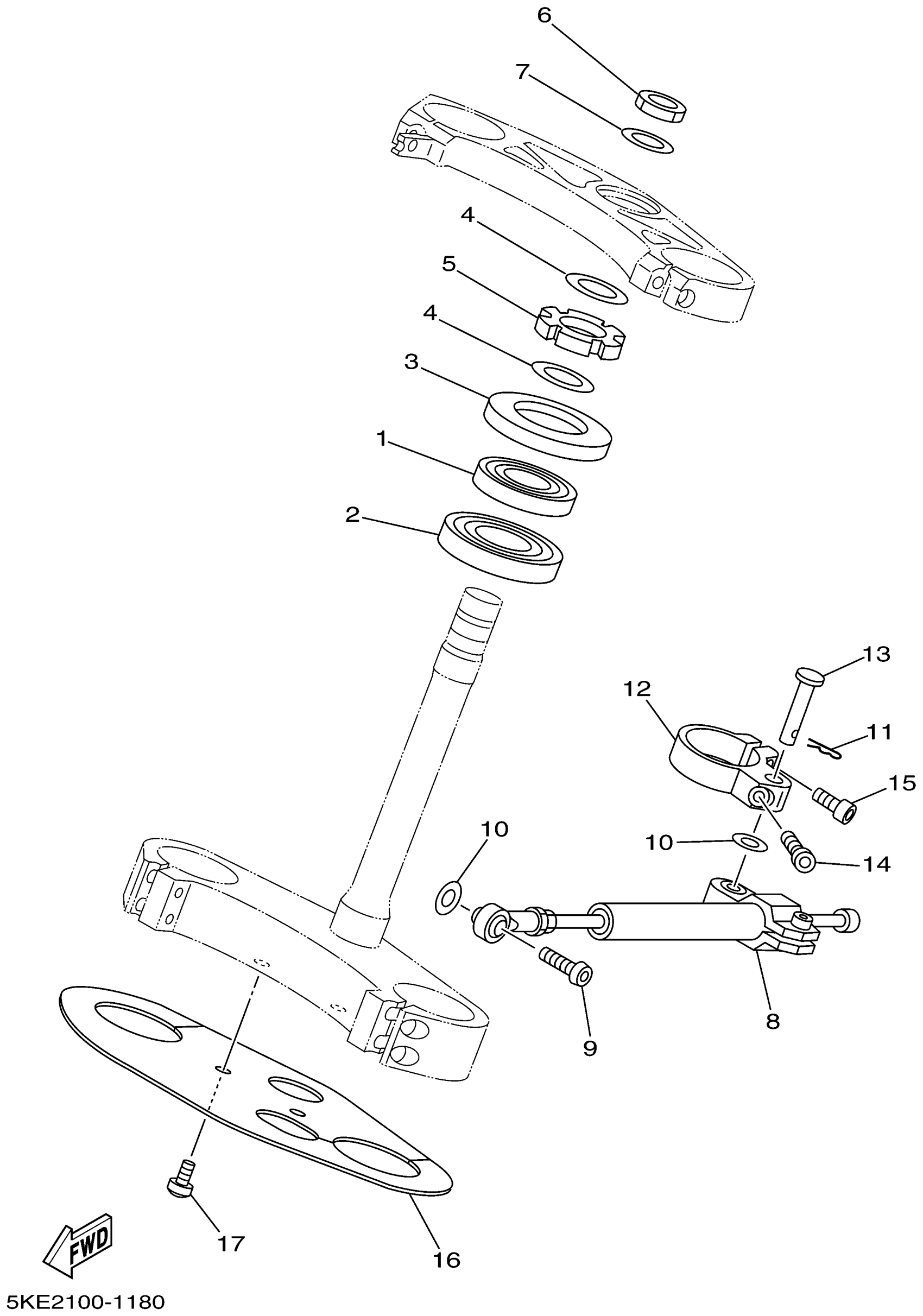

Find the part on the Steering diagram for your 2001 Yamaha TZ250 (TZ250N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha TZ250 (TZ250N) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRG, TAPERED ROLLER (409)

93332-00001-00

1
Out of stock

2

BEARING(4SR)

93332-00081-00

1
Out of stock

3

COVER, BALL RACE 1

1J7-23415-00-00

1
Out of stock

4

WASHER, PLATE (888)

90201-25526-00

1
Out of stock

5

NUT

90179-25004-00

1
Out of stock

6

NUT 1

1RK-22251-00-00

1
Out of stock

7

WASHER, PLATE (8L8)

90201-225A4-00

1
Out of stock

8

HANDLEBAR SHIMMY DAMPER ASSY

5KE-23490-00-00

1
Out of stock

9

BOLT, BUTTON

92017-08025-00

1
Out of stock

10

WASHER, PLATE(J40)

90201-08455-00

1
Out of stock

11

CLIP(4BP)

90468-16192-00

1
Out of stock

12

STAY, DAMPER

5KE-23495-00-00

1
Out of stock

13

PIN, CLEVIS (2A6)

91701-08038-00

1
Out of stock

14

BOLT, SOCKET

91317-05016-00

1
Out of stock

15

BOLT,SOCKET

91317-06020-00

—
Out of stock

16

FENDER, INNER

5KE-21552-10-00

1
Out of stock

17

SCREW, BINDING

98907-06010-00

—
Out of stock
