2001 Yamaha TZ250 (TZ250N) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2001 Yamaha TZ250 (TZ250N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

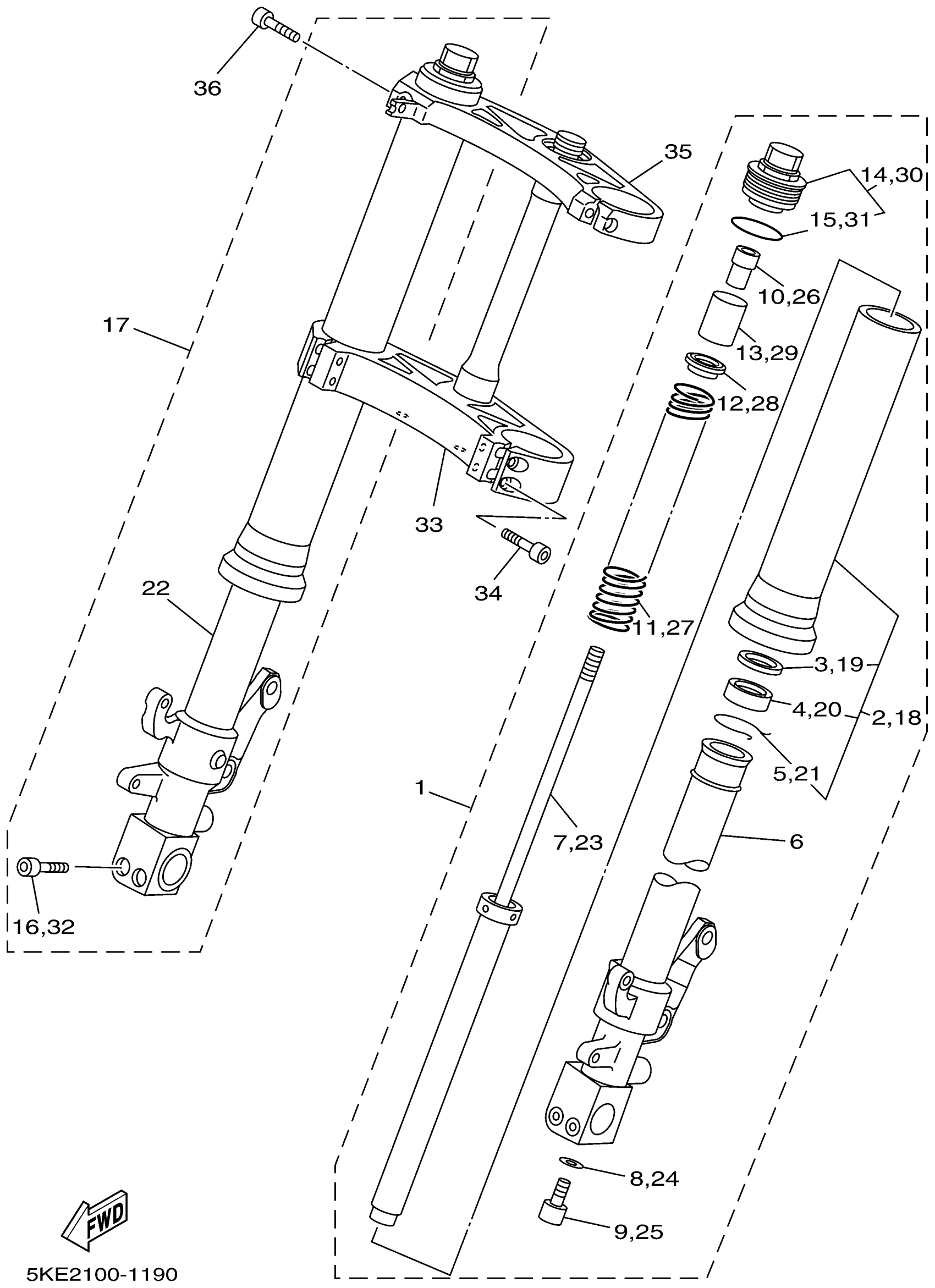

2001 Yamaha TZ250 (TZ250N) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY (L.H)

5KE-23102-10-00

1
Out of stock

2

TUBE, OUTER (RIGHT)

5KE-23136-00-00

—
Out of stock

3

WASHER, OIL SEAL

36Y-23146-10-00

1

$22.06

In stock

4

OIL SEAL

3SP-23145-L0-00

1
Out of stock

5

CLIP, OIL SEAL

26H-23156-00-00

1

$6.62

In stock

6

. INNER TUBE COMP 1

5KE-23110-10-00

1
Out of stock

7

. CYLINDER COMP, FRONT FORK

5KE-23170-10-00

1
Out of stock

8

GASKET

2K8-23158-L0-00

1
Out of stock

9

BOLT, HEXAGON SOCKET HEAD

3LC-23181-00-00

1
Out of stock

10

. NUT

4TW-23357-10-00

1
Out of stock

11

SPRING, FRONT FORK

3YL-23141-00-00

—
Out of stock

12

. SEAT, SPRING UPPER

4TW-23142-10-00

1
Out of stock

13

. SPACER

4TW-23118-10-00

1
Out of stock

14

. BOLT, CAP

4TW-23111-10-00

1
Out of stock

15

O-RING

3SP-23147-M0-00

1
Out of stock

16

BOLT, SOCKET

91314-06040-00

—
Out of stock

17

FRONT FORK ASSY (R.H)

5KE-23103-10-00

1
Out of stock

18

TUBE, OUTER (RIGHT)

5KE-23136-00-00

—
Out of stock

19

WASHER, OIL SEAL

36Y-23146-10-00

1

$22.06

In stock

20

OIL SEAL

3SP-23145-L0-00

1
Out of stock

21

CLIP, OIL SEAL

26H-23156-00-00

1

$6.62

In stock

22

. INNER TUBE COMP 2

5KE-23120-10-00

1
Out of stock

23

. CYLINDER COMP, FRONT FORK

5KE-23170-10-00

1
Out of stock

24

GASKET

2K8-23158-L0-00

1
Out of stock

25

BOLT, HEXAGON SOCKET HEAD

3LC-23181-00-00

1
Out of stock

26

. NUT

4TW-23357-10-00

1
Out of stock

27

SPRING, FRONT FORK

3YL-23141-00-00

—
Out of stock

28

. SEAT, SPRING UPPER

4TW-23142-10-00

1
Out of stock

29

. SPACER

4TW-23118-10-00

1
Out of stock

30

. BOLT, CAP

4TW-23111-10-00

1
Out of stock

31

O-RING

3SP-23147-M0-00

1
Out of stock

32

BOLT, SOCKET

91314-06040-00

—
Out of stock

33

UNDER BRACKET COMP.

4TW-23340-21-00

1
Out of stock

34

BOLT, SOCKET

91314-08035-00

—
Out of stock

35

CROWN, HANDLE

4TW-23435-01-00

1
Out of stock

36

BOLT, SOCKET

91317-08035-00

—
Out of stock
