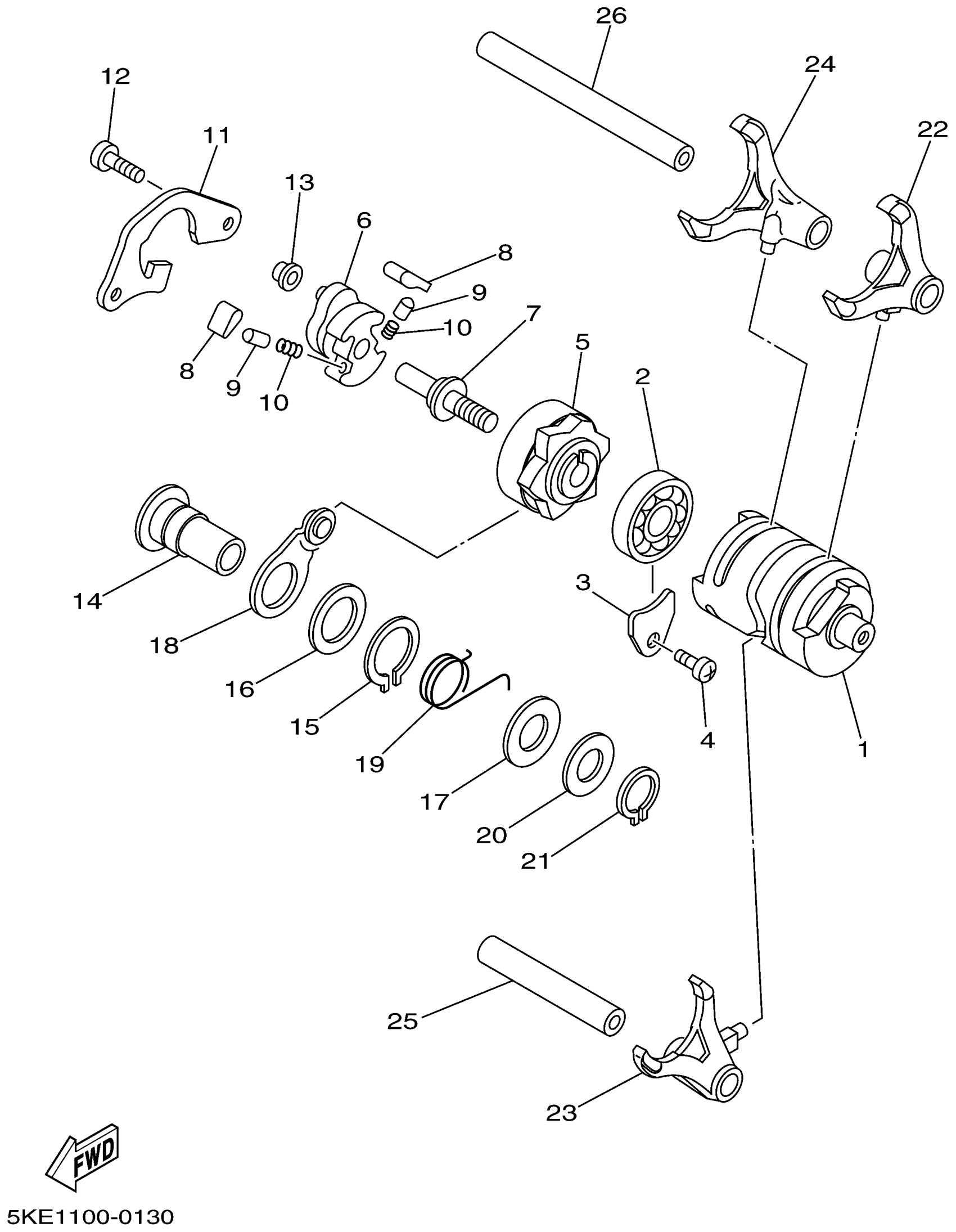

Yamaha TZ250N (TZ250) 5KE2 2001 SHIFT CAM FORK Diagram

#

Description
Price

1

CAM, SHIFT

5KE-18541-00-00

Unavailable

2

BEARING

93306-90302-00

Unavailable

3

PLATE, STOPPER 2

3XV-18562-00-00

Unavailable

4

SCREW, PAN

98517-05012-00

$4.73

5

SEGMENT

3YL-18185-00-00

Unavailable

6

LEVER, SHIFT 2

3XV-18122-00-00

Unavailable

7

PIN, SHIFT

3XJ-18173-10-00

$19.99

8

PAWL, SHIFTER

3YL-18182-00-00

Unavailable

9

PIN, PAWL

3YL-18184-00-00

Unavailable

10

SPRING, COMPRESSION(3XJ)

90501-052G5-00

$8.49

11

GUIDE, SHIFT

5KE-18172-00-00

Unavailable

12

BOLT,SOCKET

91318-06014-00

$0.38

13

ROLLER, SHIFT LEVER

3XJ-18178-00-00

$13.49

14

COLLAR(3MA)

90387-127V3-00

Unavailable

15

CIRCLIP(1EY)

99009-17400-00

$4.73

16

WASHER, PLATE (30X)

90201-177G4-00

Unavailable

17

WASHER, PLATE (4L0)

90201-154E8-00

Unavailable

18

STOPPER LEVER ASSY

3XV-18140-00-00

Unavailable

19

SPRING, TORSION

90508-231A5-00

Unavailable

20

WASHER, PLATE (5N6)

90201-127E1-00

Unavailable

21

CIRCLIP(10Y)

99009-12400-00

Unavailable

22

FORK, SHIFT 1

5KE-18511-00-00

Unavailable

23

FORK, SHIFT 2

5KE-18512-00-00

Unavailable

24

FORK, SHIFT 3

5KE-18513-00-00

Unavailable

25

BAR, SHIFT FORK GUIDE 1

3XV-18531-00-00

Unavailable

26

BAR, SHIFT FORK GUIDE 2

5KE-18535-00-00

Unavailable
