REAR WHEEL

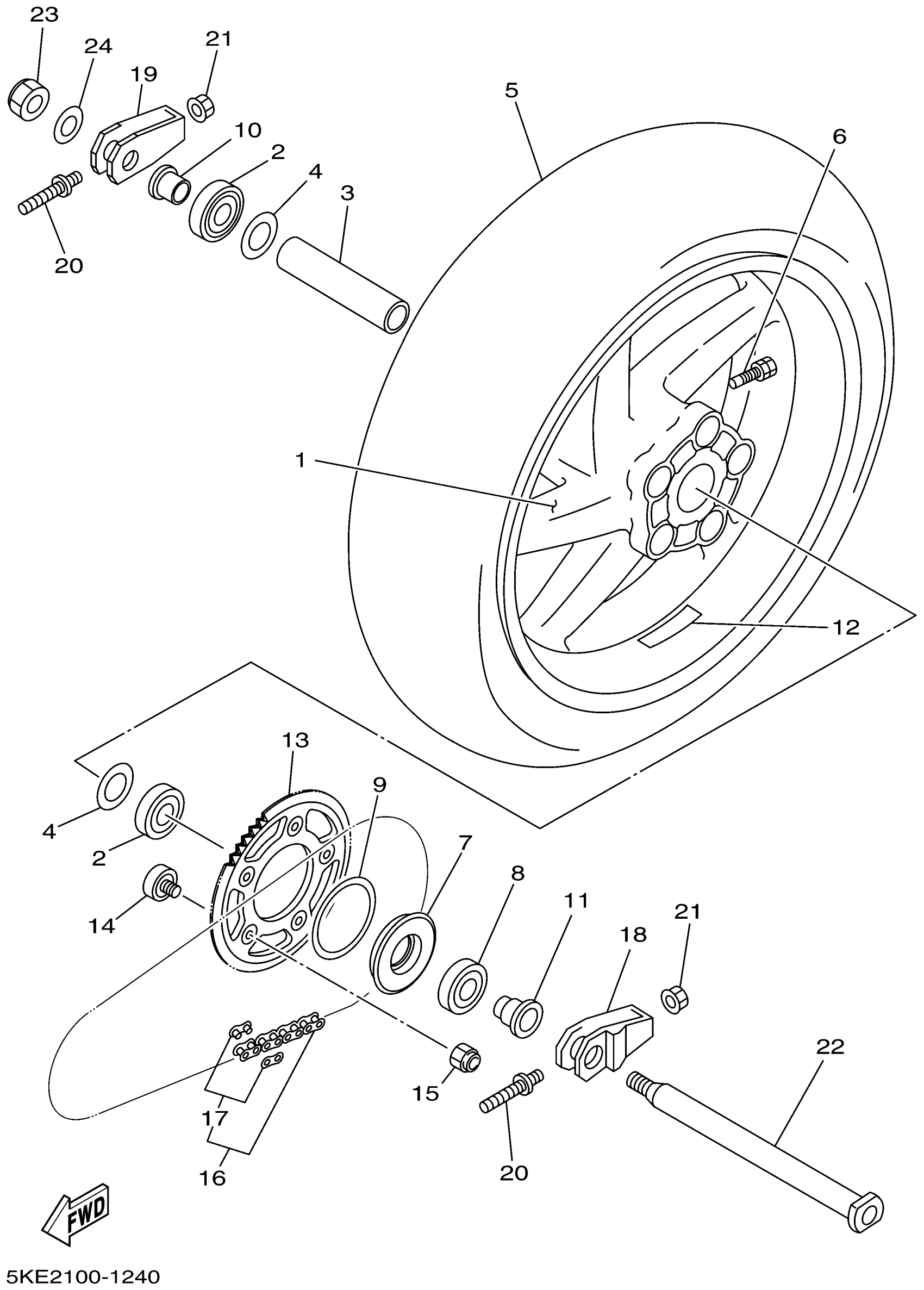

Yamaha TZ250N (TZ250) 5KE2 2001 REAR WHEEL Diagram
#
1
CAST WHEEL, REAR
5KE-25338-00-00
Unavailable
3
SPACER, BEARING
4TW-25317-00-00
Unavailable
4
PLATE, FITTING
4DP-2518A-00-00
Unavailable
5
TIRE (165/55 ZR17 KR108)
94116-1713M-00
Unavailable
7
CLUTCH, HUB
5KE-25366-10-00
Unavailable
8
BEARING
93306-90601-00
Unavailable
9
WASHER, WHEEL
5KE-25384-00-00
Unavailable
10
COLLAR, WHEEL
4TW-25383-00-00
Unavailable
11
COLLAR, WHEEL
5KE-25376-00-00
Unavailable
12
BALANCER, WHEEL
4B1-25398-00-00
Unavailable
13
SPROCKET, DRIVEN (35T)
5KE-25435-10-00
Unavailable
13
SPROCKET, DRIVEN (36T)
5KE-25436-10-00
Unavailable
13
SPROCKET, DRIVEN (37T)
5KE-25437-10-00
Unavailable
13
SPROCKET, DRIVEN (38T)
5KE-25438-10-00
Unavailable
13
SPROCKET, DRIVEN (39T)
5KE-25439-10-00
Unavailable
13
SPROCKET, DRIVEN (40T)
5KE-25440-10-00
Unavailable
14
DAMPER
3YL-25364-01-00
Unavailable
15
NUT, SELF-LOCKING(3BN)
90185-08146-00
Unavailable
16
CHAIN (RKGB520TRU 110L)
94561-62110-00
Unavailable
16
CHAIN (RKGB520TRU 114L)
94561-62114-00
Unavailable
17
. JOINT, CHAIN
94661-62031-00
Unavailable
18
PULLER, CHAIN 1
4TW-25388-01-00
Unavailable
19
PULLER, CHAIN 2
4TW-25389-01-00
Unavailable
20
BOLT, CHAIN PULLAR
4DP-25379-00-00
Unavailable
21
NUT, SELF-LOCKING(3BN)
90185-08146-00
Unavailable
22
AXLE, WHEEL
4TW-25381-00-00
Unavailable
23
NUT, SELF-LOCKING
90185-18009-00
Unavailable
24
WASHER, PLATE(4TW)
90201-183E1-00
Unavailable
