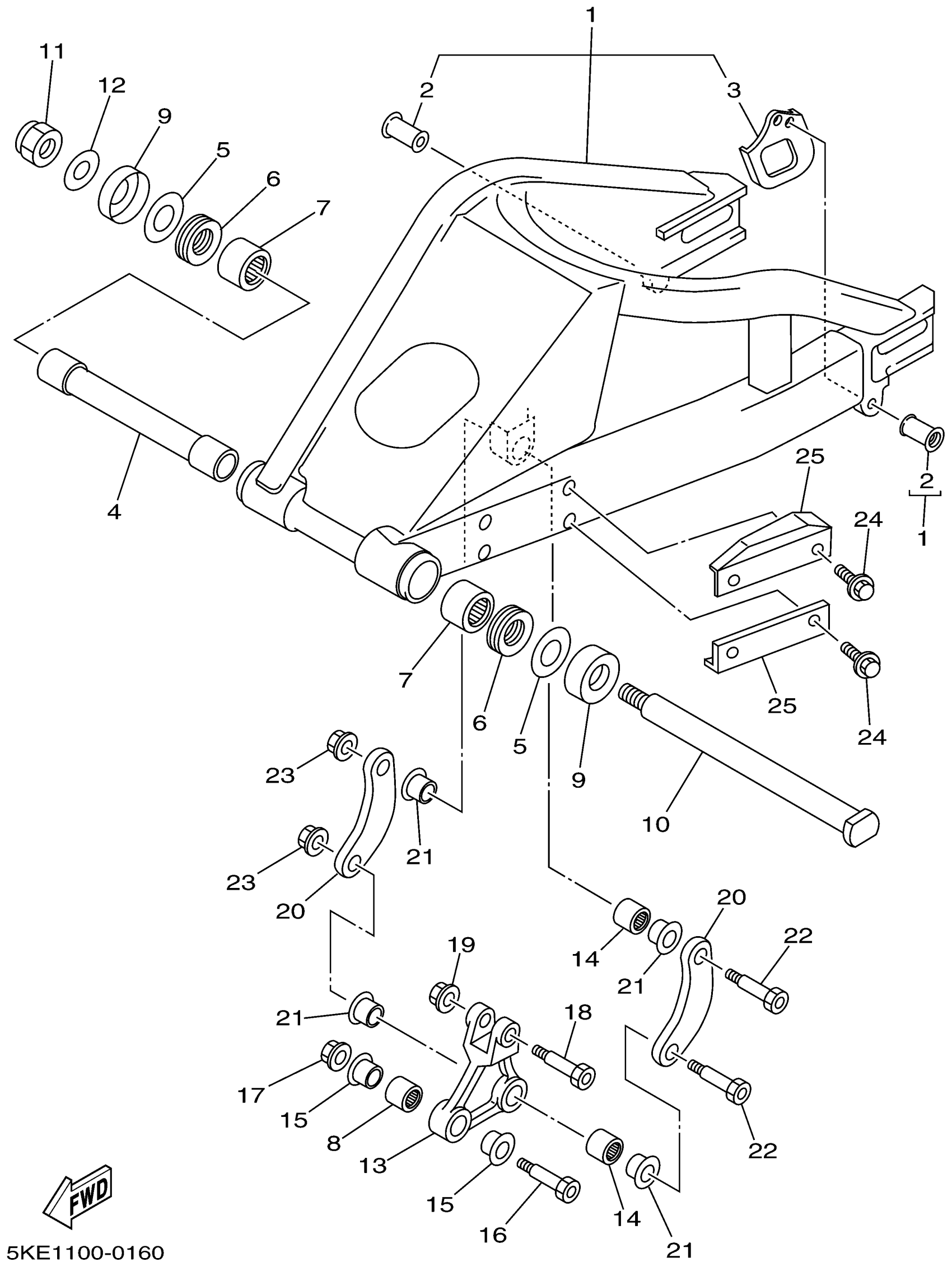

Yamaha TZ250N (TZ250) 5KE2 2001 REAR ARM Diagram

#

Description

Price

1

REAR ARM COMP.

4TW-22110-02-00

Unavailable

2

. HOOK

4JT-2216F-10-00

Unavailable

3

GUIDE, CHAIN

4TW-22187-10-00

Unavailable

4

BUSH

3XV-22184-00-00

Unavailable

5

SHIM, REAR ARM (0.2T)

1X2-22127-00-20

$6.99

6

BEARING

93342-22518-00

Unavailable

7

BRG,CYL-CAL ROLLER 46.8G NT

93315-42523-00

$30.99

8

BEARING(4DP)

93320-21507-00

Unavailable

9

COVER, THRUST 1

3FV-22128-00-00

Unavailable

10

SHAFT, PIVOT

3MA-22141-01-00

Unavailable

11

NUT, SELF-LOCKING

90185-18009-00

$18.99

12

WASHER(8BT)

92907-18200-00

Unavailable

13

ARM, RELAY

5KE-2217A-00-00

Unavailable

14

BEARING(4DP)

93320-21507-00

Unavailable

15

COLLAR(4DP)

90387-124Y8-00

Unavailable

16

BOLT

90101-10709-00

Unavailable

17

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

18

BOLT

90101-10709-00

Unavailable

19

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

20

ROD, CONNECTING 1

5KE-2217F-00-00

Unavailable

21

COLLAR(4DP)

90387-124Y8-00

Unavailable

22

BOLT

90101-10709-00

Unavailable

23

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

24

BOLT, WITH WASHER(81H)

90119-06118-00

Unavailable

25

PROTECTOR, CHAIN

4TW-22147-00-00

Unavailable
