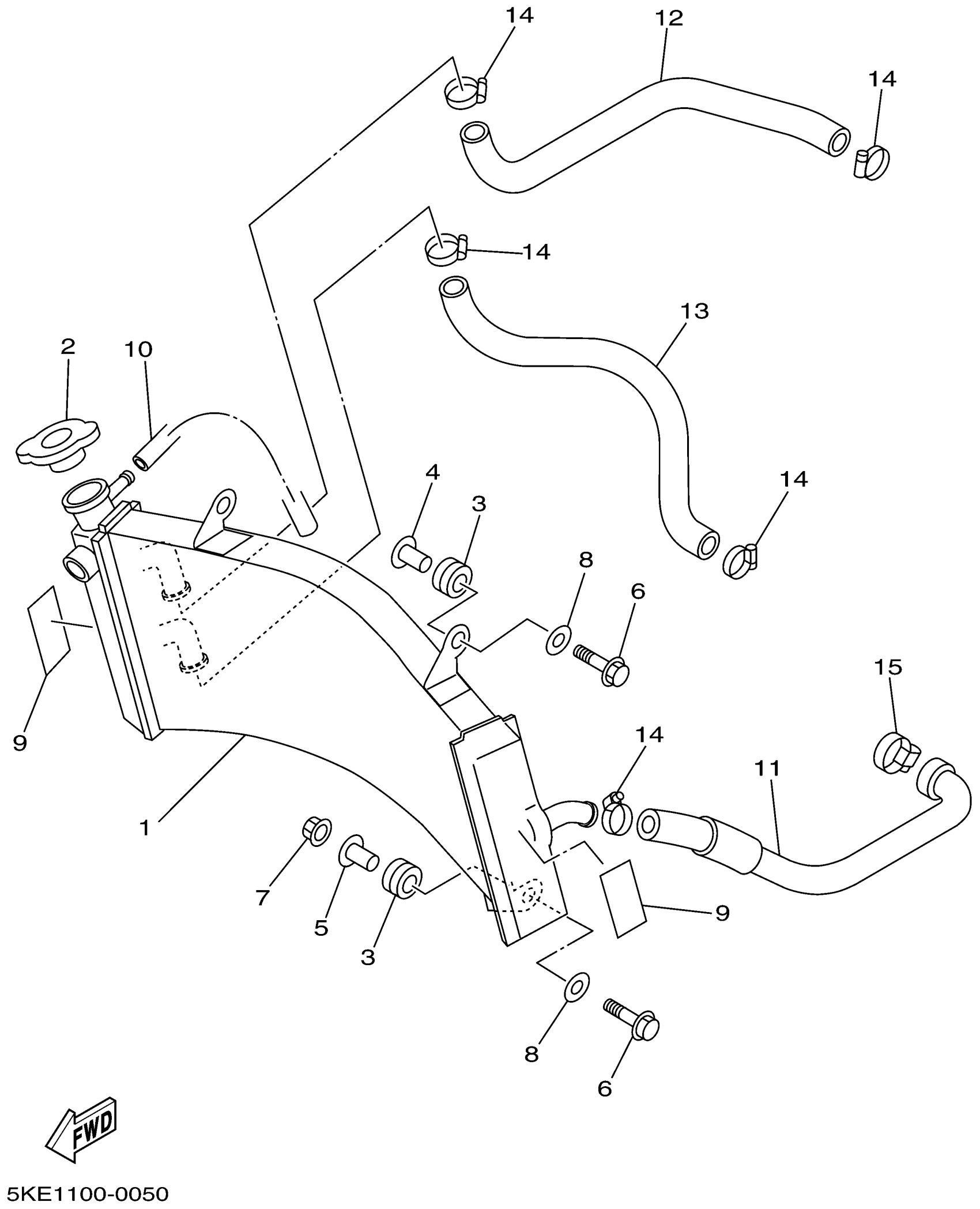

Yamaha TZ250N (TZ250) 5KE2 2001 RADIATOR HOSE Diagram

#

Description
Price

1

RADIATOR ASSY

4TW-12461-01-00

Unavailable

2

CAP, RADIATOR

4FL-12462-00-00

$62.99

3

GROMMET (29L)

90480-15363-00

$8.49

4

COLLAR

90387-06166-00

$12.49

5

COLLAR

90387-06158-00

$8.49

6

BOLT, SMALL FLANGE

95027-06030-00

$3.98

7

NUT,SELF-LOCKING

95607-06200-00

$12.49

8

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

9

DAMPER

5H0-8235Y-M0-00

$6.99

10

HOSE (L420)

90445-092K1-00

$12.49

11

PIPE 2

5KE-12482-00-00

Unavailable

12

PIPE 3

5KE-12483-00-00

Unavailable

13

PIPE 4

5KE-12484-00-00

Unavailable

14

CLAMP

90460-20190-00

Unavailable

15

HOSE CLAMP ASSY(N01)

90450-40009-00

$10.49
