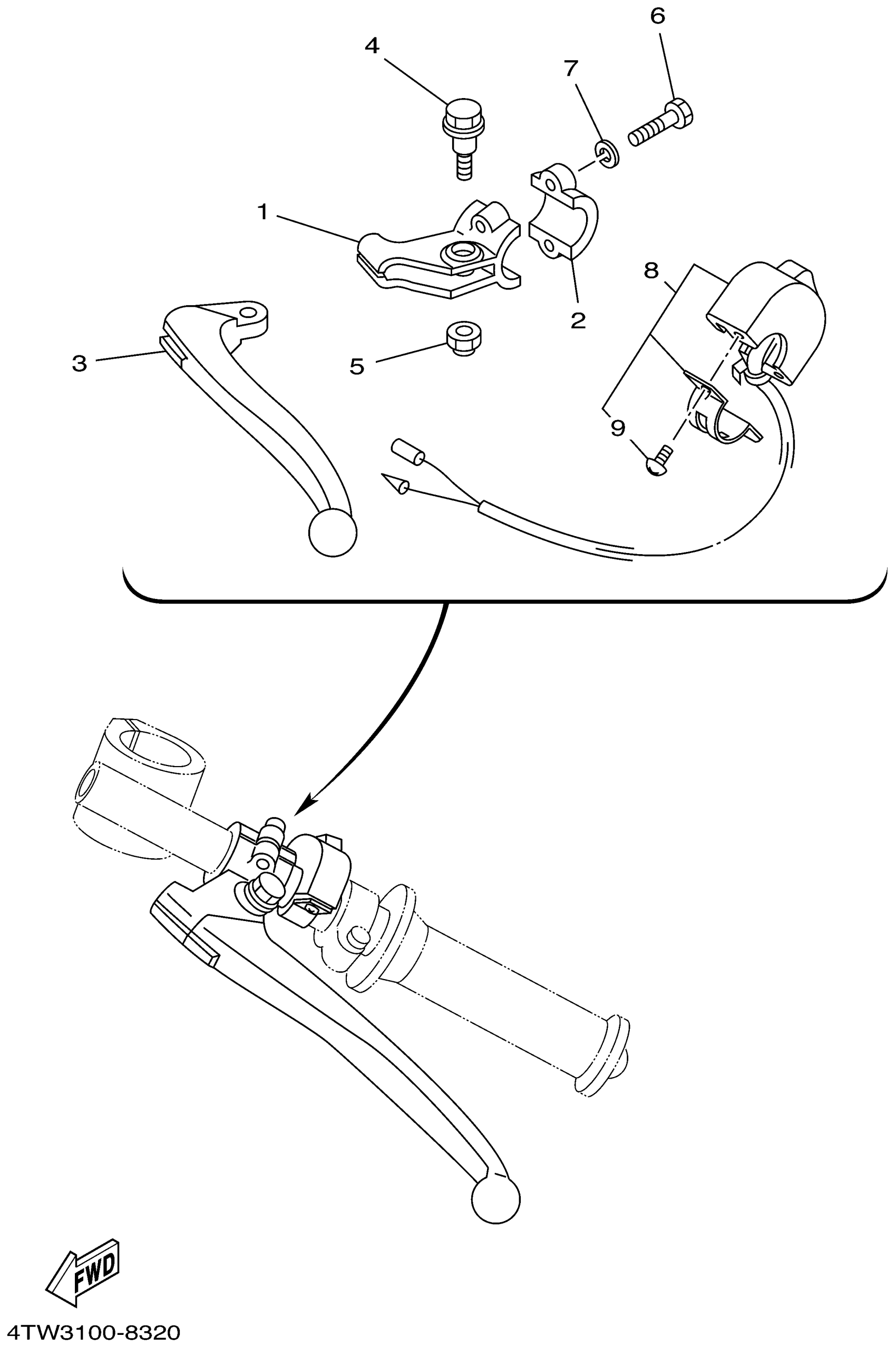

Yamaha TZ250N (TZ250) 5KE2 2001 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

HOLDER, LEVER 1

5F6-82911-00-00

Unavailable

2

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

3

LEVER(L.H)

214-83912-00-00

$18.18

4

BOLT (2YK1)

90109-06799-00

$4.23

5

NUT, SELF-LOCKING

95617-06100-00

$2.17

6

BOLT(3JK)

97027-05020-00

$2.31

7

WASHER(3SX)

92907-05100-00

$5.76

8

SWITCH, HANDLE 1

4TW-83976-00-00

Unavailable

9

SCREW, PAN HEAD(N15)

98507-04014-00

$1.24
