2001 Yamaha TZ250 (TZ250N) Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 2001 Yamaha TZ250 (TZ250N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

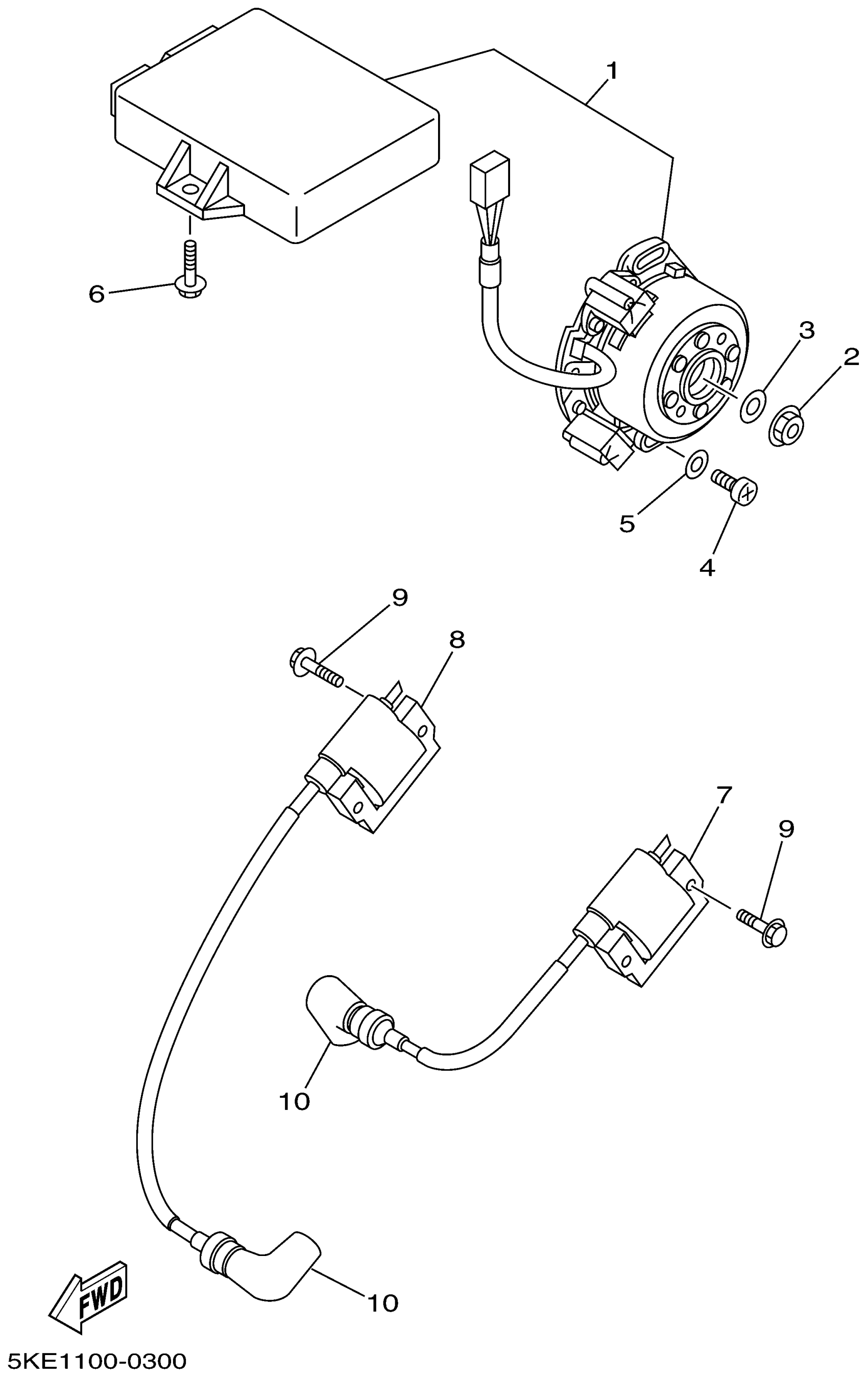

2001 Yamaha TZ250 (TZ250N) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

C.D.I. MAGNETO SET

5KE-85501-10-00

1
Out of stock

2

NUT(3EF)

90179-12657-00

1

$5.32

In stock

3

WASHER, PLATE (5N6)

90201-127E1-00

1

$3.68

In stock

4

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

5

WASHER, PLATE 6261117600

90201-06043-00

1
Out of stock

6

. BOLT, FLANGE

95027-06020-00

1

$1.00

In stock

7

IGNITION COIL ASY

4DP-82320-00-00

1
Out of stock

8

IGNITION COIL ASY

4DP-82320-00-00

1
Out of stock

9

. BOLT, FLANGE

95027-06020-00

1

$1.00

In stock

10

PLUG CAP ASSY

8DG-82370-00-00

1
Out of stock
