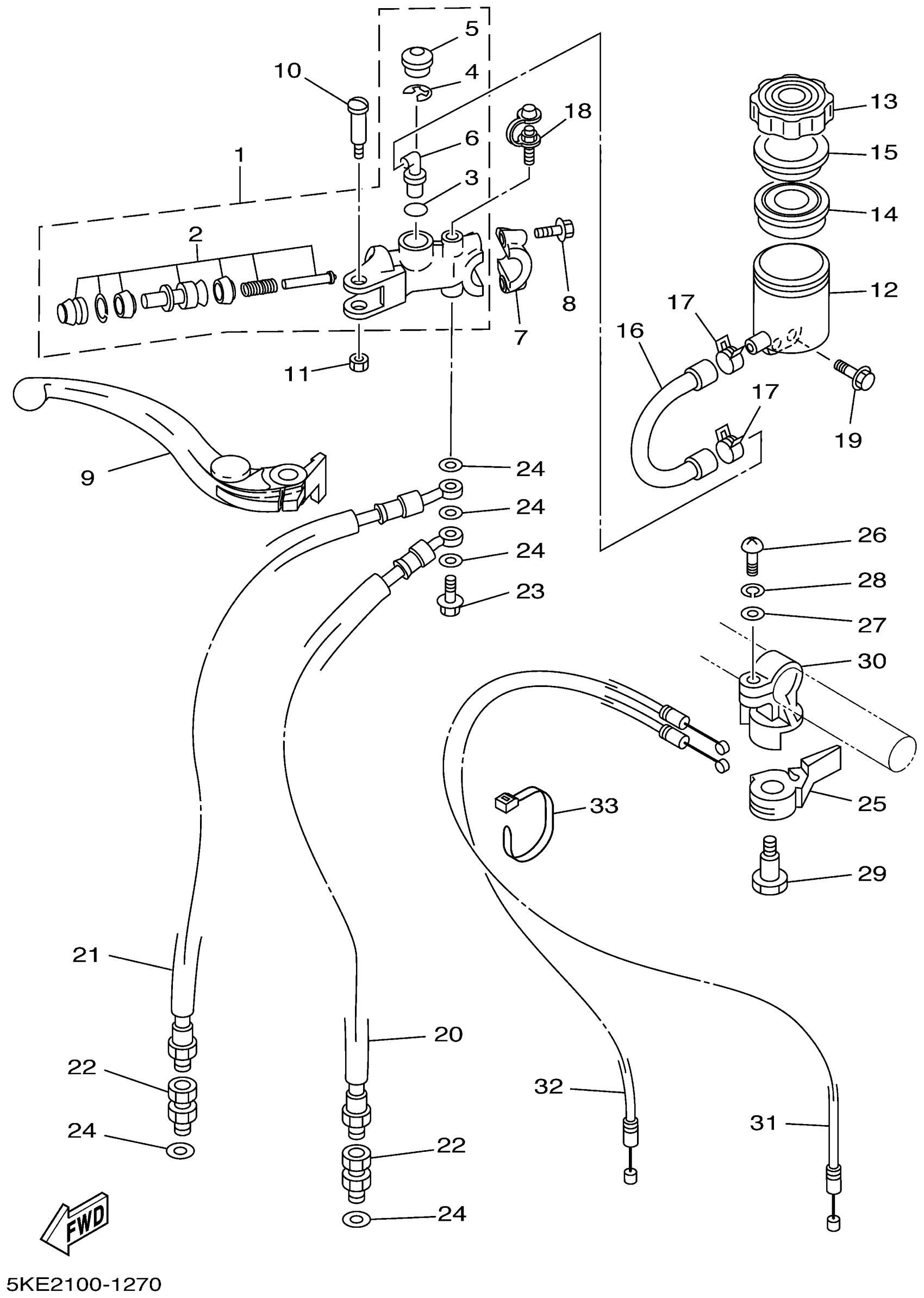

Yamaha TZ250N (TZ250) 5KE2 2001 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

5KE-W2587-00-00

Unavailable

2

CYLINDER KIT, MASTER

5KE-W0041-00-00

Unavailable

3

O-RING (22U)

93210-15566-00

$7.49

4

CIRCLIP

2VN-25866-00-00

$6.99

5

COVER, DUST

3FV-2589A-00-00

$20.99

6

JOINT

2VN-2582A-50-00

$20.99

7

BRACKET, MASTER CYLINDER

56A-25867-00-00

$28.99

8

BOLT

5EB-26332-00-00

$7.99

9

LEVER 2

5KE-83922-10-00

Unavailable

10

BOLT, LEVER

3FV-2589F-00-00

$16.49

11

NUT, SELF-LOCKING

95617-06100-00

$8.49

12

TANK, RESERVOIR

3FV-25894-00-00

$60.99

13

CAP, RESERVOIR

3GM-25852-50-00

$29.99

14

DIAPHRAGM, RESERVOIR

3FV-25854-00-00

$27.99

15

BUSHING, DIAPHRAGM

2J2-25855-50-00

$5.49

16

HOSE, RESERVOIR

5KE-25895-00-00

Unavailable

17

CLIP, PIPE 1

3PA-24356-00-00

Unavailable

18

BLEED SCREW KIT

36Y-W0048-00-00

Unavailable

19

BOLT, FLANGE(4DU)

95027-06014-00

Unavailable

20

HOSE, BRAKE 1

5KE-25872-00-00

Unavailable

21

HOSE, BRAKE 2

5KE-25873-00-00

Unavailable

22

JOINT

3LC-25885-00-00

Unavailable

23

BOLT, UNION

90401-10038-00

Unavailable

24

WASHER, PLATE(481)

90201-10118-00

Unavailable

25

LEVER, STARTER

240-83941-00-00

Unavailable

26

SCREW, PAN HEAD(3GW)

98507-06018-00

Unavailable

27

WASHER PLATE 122222440000

90201-12175-00

Unavailable

28

WASHER, SPRING

92907-06100-00

Unavailable

29

BOLT

90109-08398-00

Unavailable

30

HOLDER, STARTER LEVER

240-83946-00-00

Unavailable

31

CABLE, STARTER 1

4DP-26331-00-00

Unavailable

32

CABLE, STARTER 2

4DP-26334-01-00

Unavailable

33

BAND

1UA-82591-00-00

Unavailable
