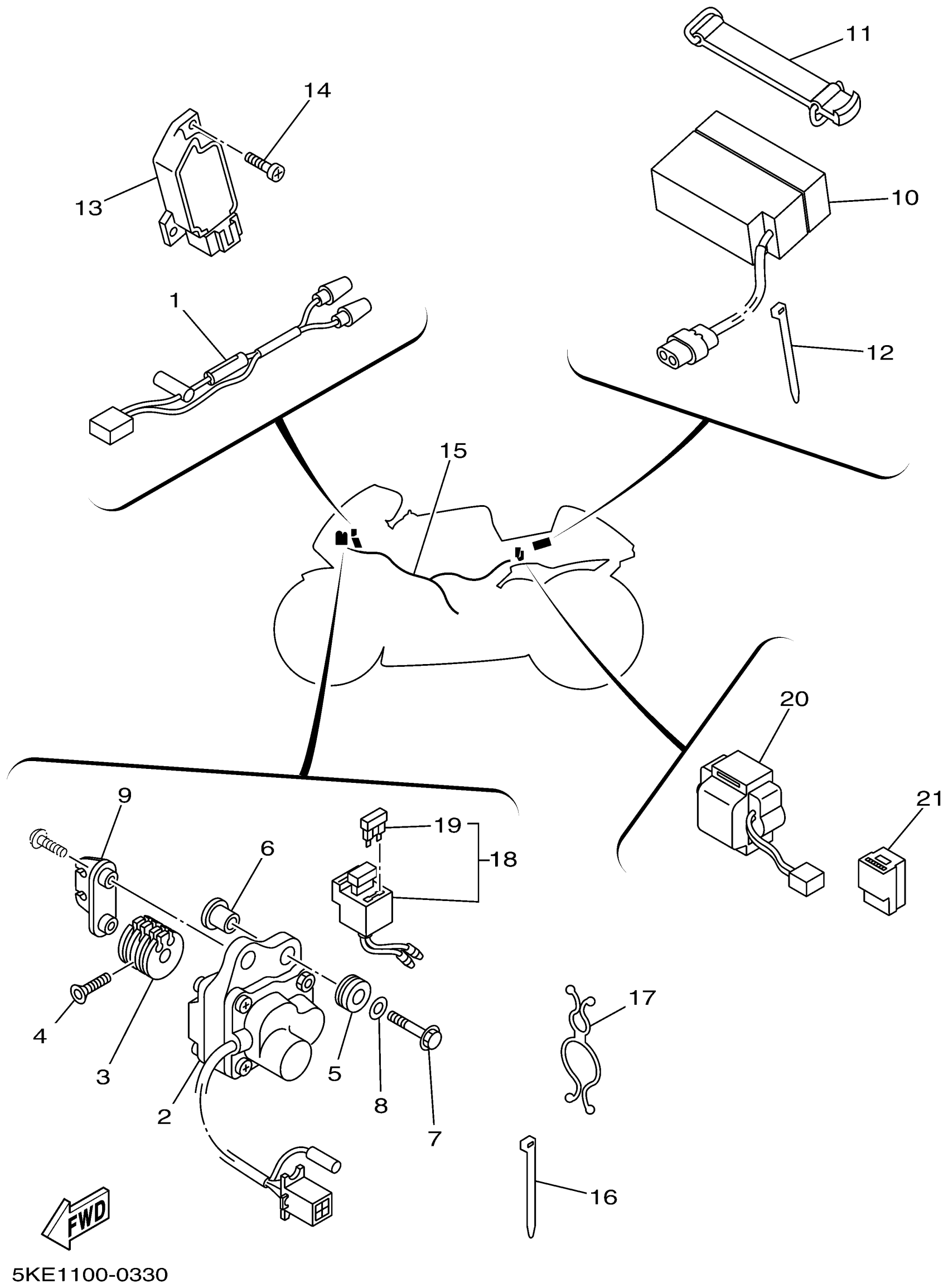

Yamaha TZ250N (TZ250) 5KE2 2001 ELECTRICAL 1 Diagram

#

Description
Price

1

WIRE, LEAD

4TW-82117-00-00

Unavailable

2

GEARD MOTOR COMP.

3LC-85850-00-00

Unavailable

3

PULLEY, DRIVE

3YL-85821-00-00

Unavailable

4

SCREW, COUNTERSUNK (21V)

90151-05023-00

$9.49

5

GROMMET 839774310000

90480-14023-00

$7.49

6

COLLAR

90387-06158-00

$8.49

7

BOLT, SMALL FLANGE

95027-06025-00

$4.16

8

WASHER, PLATE

90201-06380-00

$0.60

9

BRACKET, CABLE

3YL-85824-00-00

Unavailable

10

BATTERY ASSY (GS PE12V0.8)

4TW-82100-10-00

Unavailable

11

BAND,BATTERY

7H3-82131-00-00

$17.49

12

CLAMP

90464-13077-00

$8.49

13

RECTIFIER & REGULAT0R ASSY

1JK-81960-A1-00

Unavailable

14

SCREW, PAN

98517-06020-00

$8.49

15

WIRE HARNESS ASSY

5KE-82590-10-00

Unavailable

16

CLAMP(MF1)

90464-15152-00

Unavailable

17

CLAMP(J38)

90464-26114-00

Unavailable

18

FUSE HOLDER ASSY

4HF-82150-00-00

Unavailable

19

FUSE (10A)

42X-82151-00-00

Unavailable

20

EMERGENCY STOP SWITCH ASSY

4TW-82576-00-00

Unavailable

21

RELAY ASSY (1UY-92)

1UY-81950-92-00

Unavailable
