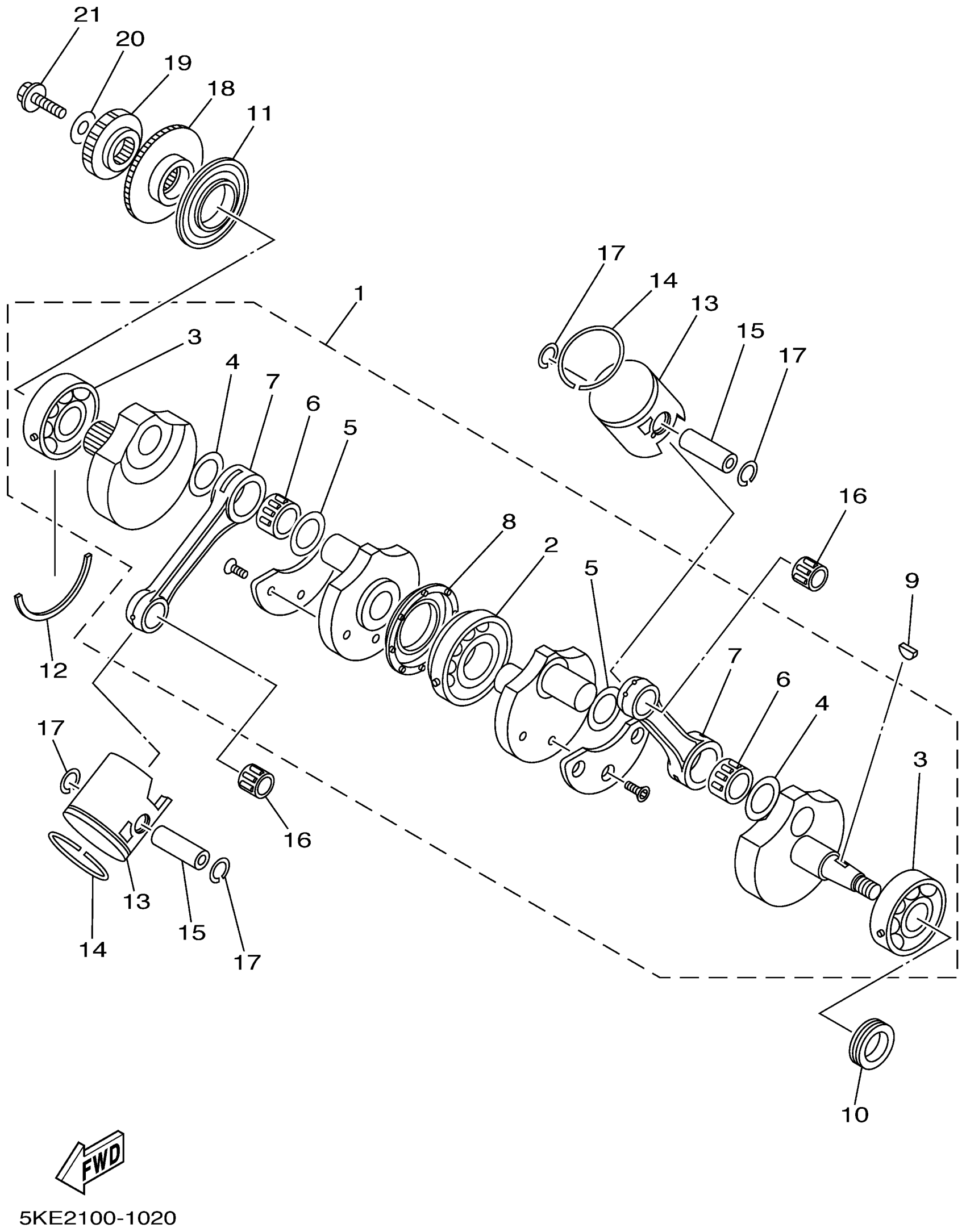

Yamaha TZ250N (TZ250) 5KE2 2001 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

5KE-11400-10-00

Unavailable

2

. BEARING

93306-30635-00

Unavailable

3

BEARING

93306-30572-00

Unavailable

4

WASHER(4DP)

90209-24327-00

$44.99

5

WASHER(3XV)

90209-24316-00

Unavailable

6

BEARING

93310-52403-00

$129.99

7

ROD, CONNECTING

5KE-11651-01-00

Unavailable

8

OIL SEAL(3YL)

93101-44160-00

Unavailable

9

KEY, WOODRUFF(3MA)

90280-04051-00

Unavailable

10

OIL SEAL(3MA)

93102-25438-00

$22.99

11

OIL SEAL

93102-35030-00

Unavailable

12

CIRCLIP

278-17424-01-00

$21.99

13

PISTON (STD)

5KE-11631-10-A0

Unavailable

13

PISTON (STD)

5KE-11631-10-B0

$252.99

13

PISTON (STD)

5KE-11631-10-C0

Unavailable

14

RING, PISTON

4JT-11611-11-00

Unavailable

15

PIN, PISTON

4XM-11633-01-00

Unavailable

16

BEARING

93310-31510-00

Unavailable

17

CIRCLIP (4G0)

93450-16068-00

Unavailable

18

GEAR, DRIVE

5KE-11536-00-00

Unavailable

19

GEAR, PRIMARY DRIVE

5KE-16111-00-00

Unavailable

20

WASHER, PLATE

90201-10144-00

Unavailable

21

BOLT, WASHER BASED(1TX)

90105-10445-00

Unavailable
