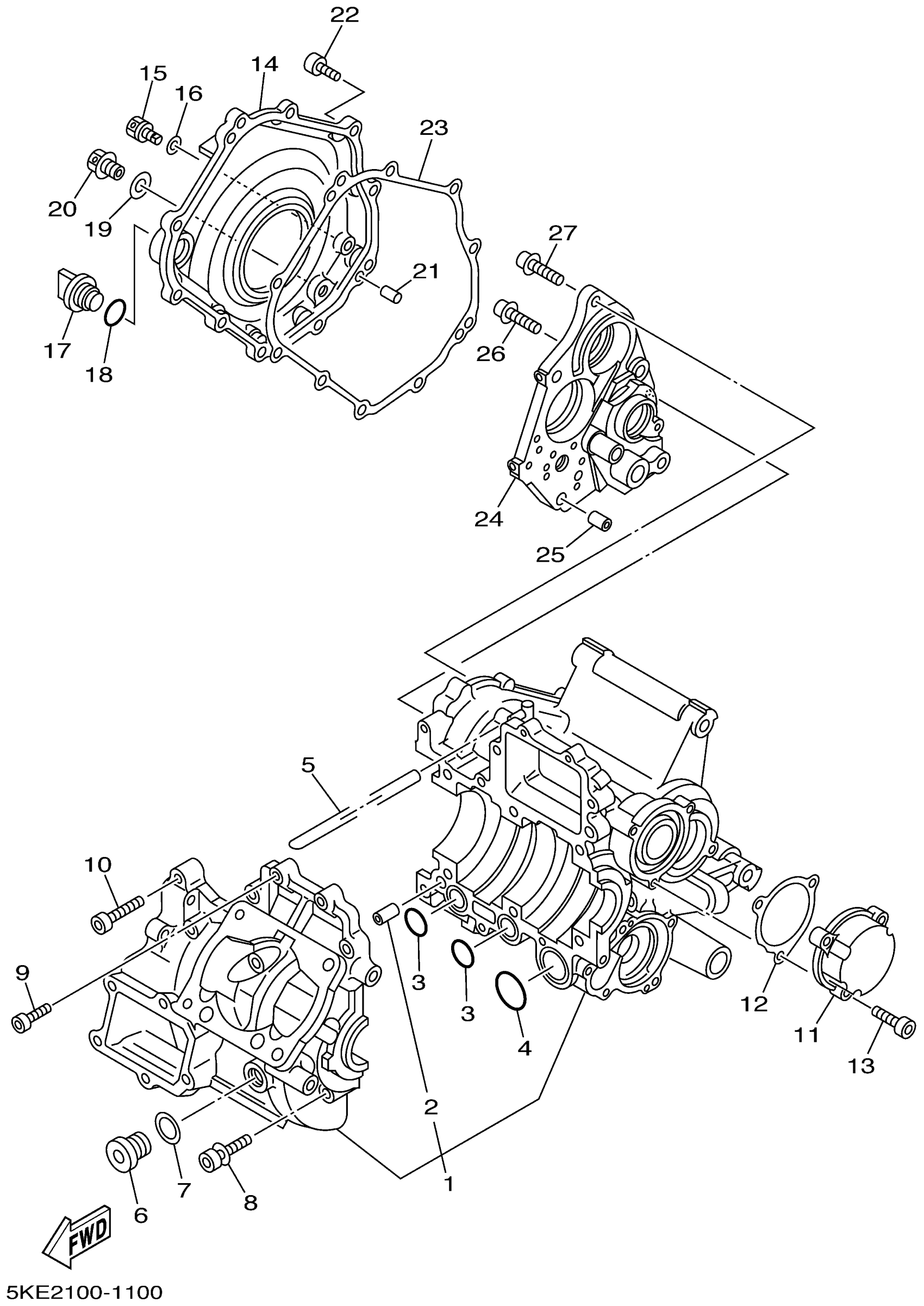

Yamaha TZ250N (TZ250) 5KE2 2001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

5KE-15100-02-00

Unavailable

2

PIN, DOWEL(3VD)

99530-10114-00

$2.55

3

O-RING(M01)

93210-19758-00

$7.49

4

O-RING

93210-28543-00

Unavailable

5

HOSE (L770)

90445-090G9-00

$33.99

6

PLUG, STRAIGHT SCREW (33M)

90340-18101-00

$11.49

7

. WASHER, PLATE

90201-183H2-00

Unavailable

8

BOLT(3TC)

90109-084F1-00

Unavailable

9

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

10

BOLT, SOCKET

91314-06035-00

$8.49

11

COVER, CRANKCASE 1

5KE-15411-00-00

Unavailable

12

GASKET, CRANKCASE COVER 1

5KE-15451-00-00

Unavailable

13

BOLT,SOCKET

91317-06025-00

$5.60

14

COVER, CRANKCASE 2

5KE-15421-00-00

Unavailable

15

PLUG, WATER CHECK (383)

90338-06041-00

Unavailable

16

GASKET (4V2)

90430-06166-00

Unavailable

17

PLUG, OIL

4A0-15363-00-00

Unavailable

18

O-RING

93210-21190-00

Unavailable

19

GASKET(2GH)

90430-12202-00

Unavailable

20

PLUG, STRAIGHT SCREW

90340-12144-00

Unavailable

21

PIN, DOWEL (614)

93606-12019-00

Unavailable

22

BOLT,SOCKET

91317-06020-00

Unavailable

23

GASKET, CRANKCASE COVER 2

5KE-15461-00-00

Unavailable

24

CRANKCASE 3

5KE-15131-00-00

Unavailable

25

PIN, DOWEL(3VD)

99530-10114-00

$2.55

26

BOLT

90109-06028-00

Unavailable

27

BOLT

90109-06029-00

Unavailable
