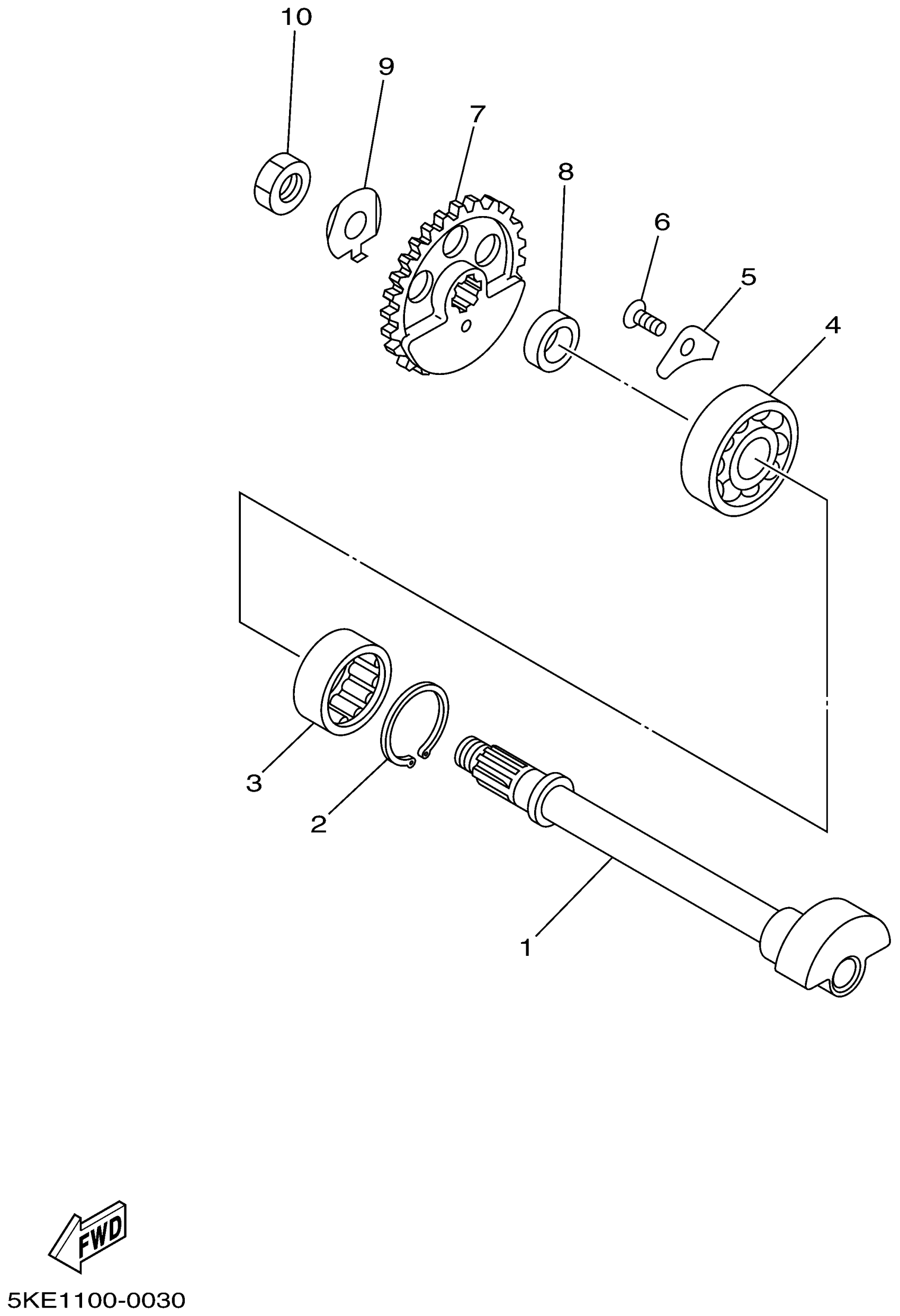

Yamaha TZ250N (TZ250) 5KE2 2001 COUNTER SHAFT Diagram

SHAFT 1

5KE-11455-00-00

Unavailable

CIRCLIP (4V1)

93420-30049-00

$4.24

BEARING, CYLINDRICAL(1NT)

93311-32261-00

$72.99

BEARING(3YL)

93306-30316-00

Unavailable

PLATE, BEARING COVER

4JT-15381-01-00

$13.49

SCREW, COUNTERSUNK (4H7)

90151-06014-00

Unavailable

GEAR, BALANCE WT

5KE-11531-00-00

Unavailable

COLLAR(J45)

90387-176R1-00

Unavailable

WASHER, LOCK (2K6)

90215-14204-00

$9.49

NUT, HEXAGON

90170-14171-00

$9.49
