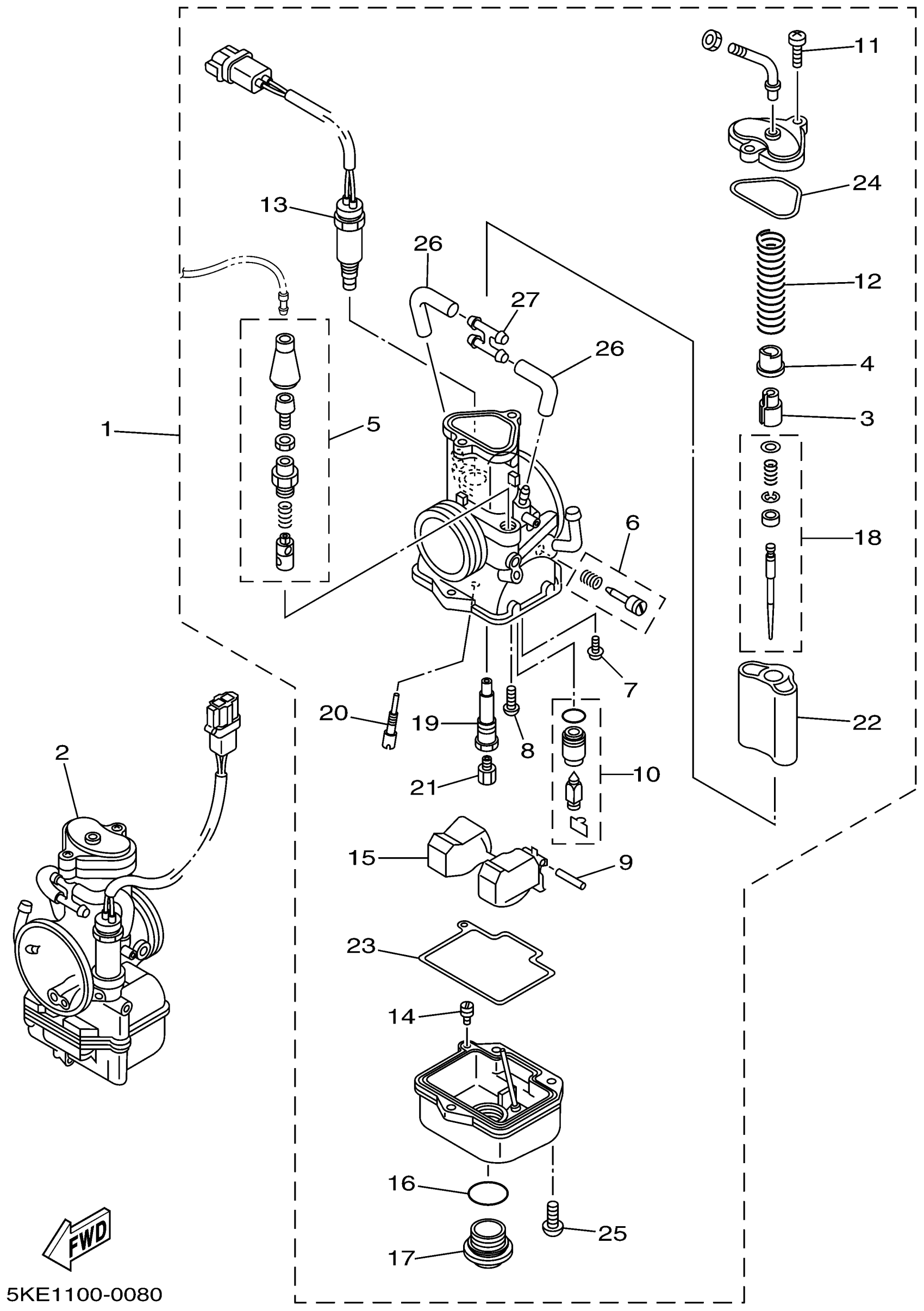

Yamaha TZ250N (TZ250) 5KE2 2001 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

5KE-14101-10-00

Unavailable

2

CARBURETOR ASSY 2

5KE-14102-10-00

Unavailable

3

HOLDER

5KE-14261-00-00

Unavailable

4

RING

4PE-14194-00-00

$10.99

5

STARTER SET

4TW-1410A-00-00

Unavailable

6

AIR SCREW SET

4GL-14104-00-00

$10.99

7

SCREW

1FN-14565-00-00

$7.99

8

SCREW, PAN HEAD(JG1)

98507-04008-00

$2.14

9

PIN, FLOAT

353-14186-00-00

$7.99

10

. NEEDLE VALVE SET

4TW-14107-15-00

Unavailable

11

SCREW, PAN HEAD(N15)

98507-04014-00

$1.86

12

SPRING,THROTTLE VALVE

4TW-14131-00-00

Unavailable

13

FUEL CUT SOLENOID VALVE

5KE-1410H-00-00

Unavailable

14

. JET, MAIN ( 50)

830-14231-10-00

Unavailable

14

JET, MAIN (# 55)

830-14231-11-00

$14.49

15

FLOAT

5ET-14185-00-00

Unavailable

16

O-RING

2K6-14147-00-00

Unavailable

17

PLUG, SCREW

5ET-14115-00-00

Unavailable

18

. NEEDLE SET

5KE-1490J-10-00

Unavailable

19

. NOZZLE, MAIN (R-7)

5KE-14141-R7-00

Unavailable

19

. NOZZLE, MAIN (R-8)

5KE-14141-R8-00

Unavailable

19

. NOZZLE, MAIN (R-9)

5KE-14141-R9-00

Unavailable

19

NOZZLE, MAIN

5KE-14141-S0-00

Unavailable

19

. NOZZLE, MAIN (S-1)

5KE-14141-S1-00

Unavailable

19

. NOZZLE, MAIN (S-2)

5KE-14141-S2-00

Unavailable

19

. NOZZLE, MAIN (S-3)

5KE-14141-S3-00

Unavailable

19

NOZZLE, MAIN

5KE-14141-S4-00

Unavailable

20

JET, PILOT (# 25)

4KM-14142-25-00

Unavailable

20

JET, PILOT (# 30)

4KM-14142-30-00

Unavailable

20

JET, PILOT (# 35)

4KM-14142-35-00

Unavailable

20

JET, PILOT (# 40)

4KM-14142-40-00

Unavailable

21

JET,MAIN #350

137-14143-70-00

Unavailable

21

JET,MAIN #360

137-14143-72-00

Unavailable

21

JET,MAIN #370

137-14143-74-00

Unavailable

21

JET,MAIN #380

137-14143-76-00

Unavailable

21

JET,MAIN #390

137-14143-78-00

Unavailable

21

JET,MAIN #400

137-14143-80-00

Unavailable

21

JET,MAIN #410

137-14143-82-00

Unavailable

21

JET,MAIN #420

137-14143-84-00

Unavailable

21

JET,MAIN #430

137-14143-86-00

Unavailable

21

JET, MAIN #440

137-14143-88-00

Unavailable

21

JET, MAIN #450

137-14143-90-00

Unavailable

21

JET, MAIN #460

137-14143-92-00

Unavailable

21

JET, MAIN #470

137-14143-94-00

Unavailable

21

JET, MAIN #480

137-14143-96-00

Unavailable

21

JET, MAIN #490

137-14143-98-00

Unavailable

21

JET, MAIN

137-1414K-00-00

Unavailable

21

JET, MAIN (#540)

137-1414K-08-00

Unavailable

21

JET, MAIN (#560)

137-1414K-12-00

Unavailable

22

. VALVE, THROTTLE 1

5KE-14112-50-00

Unavailable

23

O-RING

4TW-1416A-00-00

Unavailable

24

O-RING

5ET-14147-00-00

Unavailable

25

SCREW, PAN HEAD

98507-05014-00

Unavailable

26

PIPE

4TW-14197-00-00

Unavailable

27

NIPPLE

8J0-14251-00-00

Unavailable
