Description

Price

1

BRG, TAPERED ROLLER (409)

93332-00001-00

$58.99

2

BEARING(4SR)

93332-00081-00

$58.99

3

COVER, BALL RACE 1

1J7-23415-00-00

$6.99

4

WASHER, PLATE (888)

90201-25526-00

$9.49

5

NUT

90179-25004-00

$24.99

6

NUT 1

1RK-22251-00-00

$31.99

7

WASHER, PLATE (8L8)

90201-225A4-00

$9.49

8

HANDLEBAR SHIMMY DAMPER ASSY

5KE-23490-00-00

Unavailable

9

BOLT, BUTTON

92017-08025-00

$8.49

10

WASHER, PLATE(J40)

90201-08455-00

$4.82

11

CLIP(4BP)

90468-16192-00

$9.49

12

STAY, DAMPER

5KE-23495-00-00

Unavailable

13

PIN, CLEVIS (2A6)

91701-08038-00

$4.14

14

BOLT, SOCKET

91317-05016-00

$3.28

15

BOLT,SOCKET

91317-06020-00

Unavailable

16

FENDER, INNER

5KE-21552-00-00

Unavailable

17

SCREW, BINDING

98907-06010-00

Unavailable

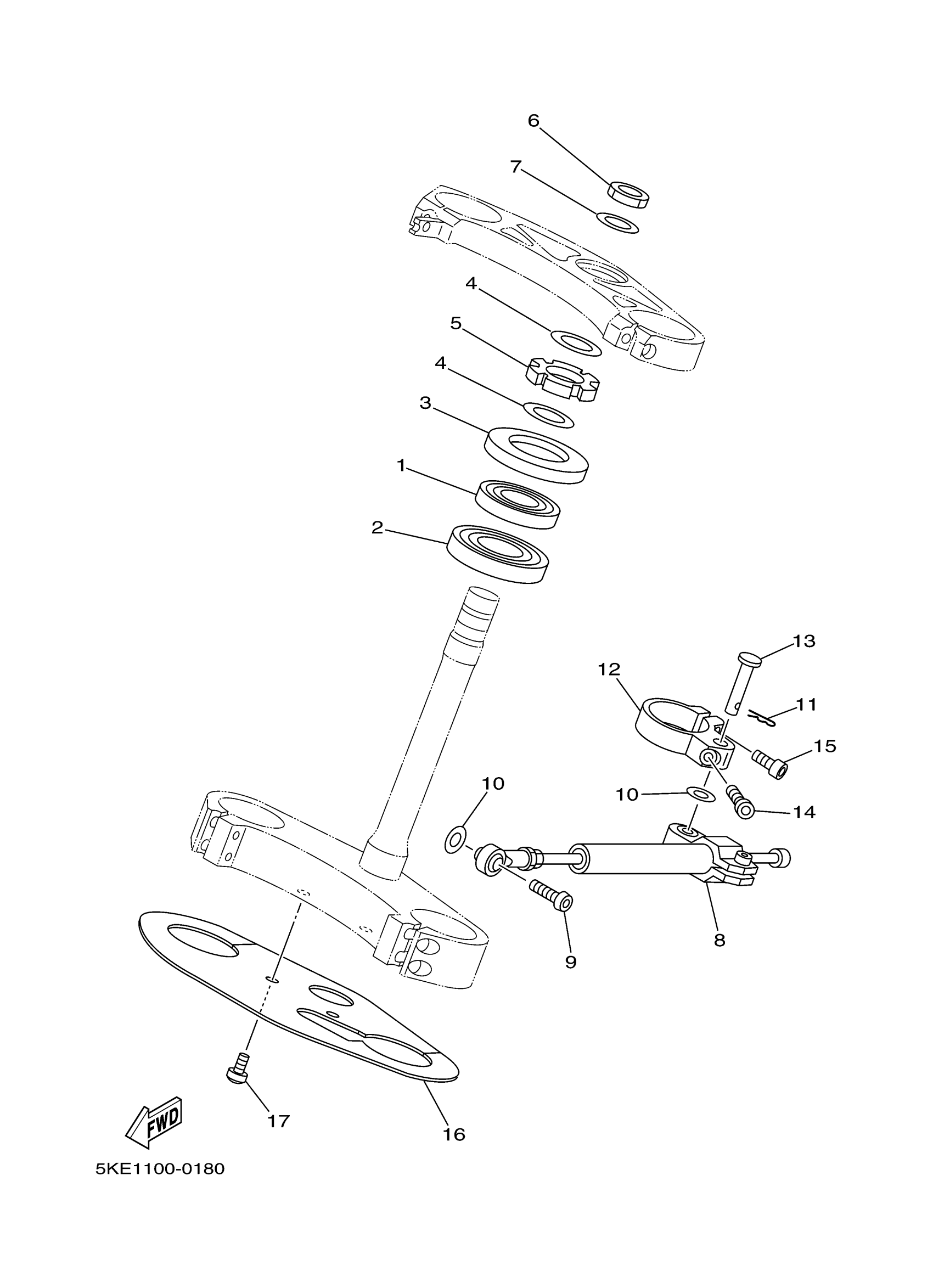

Yamaha TZ250M (TZ250) 5KE1 2000 STEERING Diagram

BRG, TAPERED ROLLER (409)

BEARING(4SR)

COVER, BALL RACE 1

WASHER, PLATE (888)

NUT

NUT 1

WASHER, PLATE (8L8)

HANDLEBAR SHIMMY DAMPER ASSY

BOLT, BUTTON

WASHER, PLATE(J40)

CLIP(4BP)

STAY, DAMPER

PIN, CLEVIS (2A6)

BOLT, SOCKET

BOLT,SOCKET

FENDER, INNER

SCREW, BINDING
