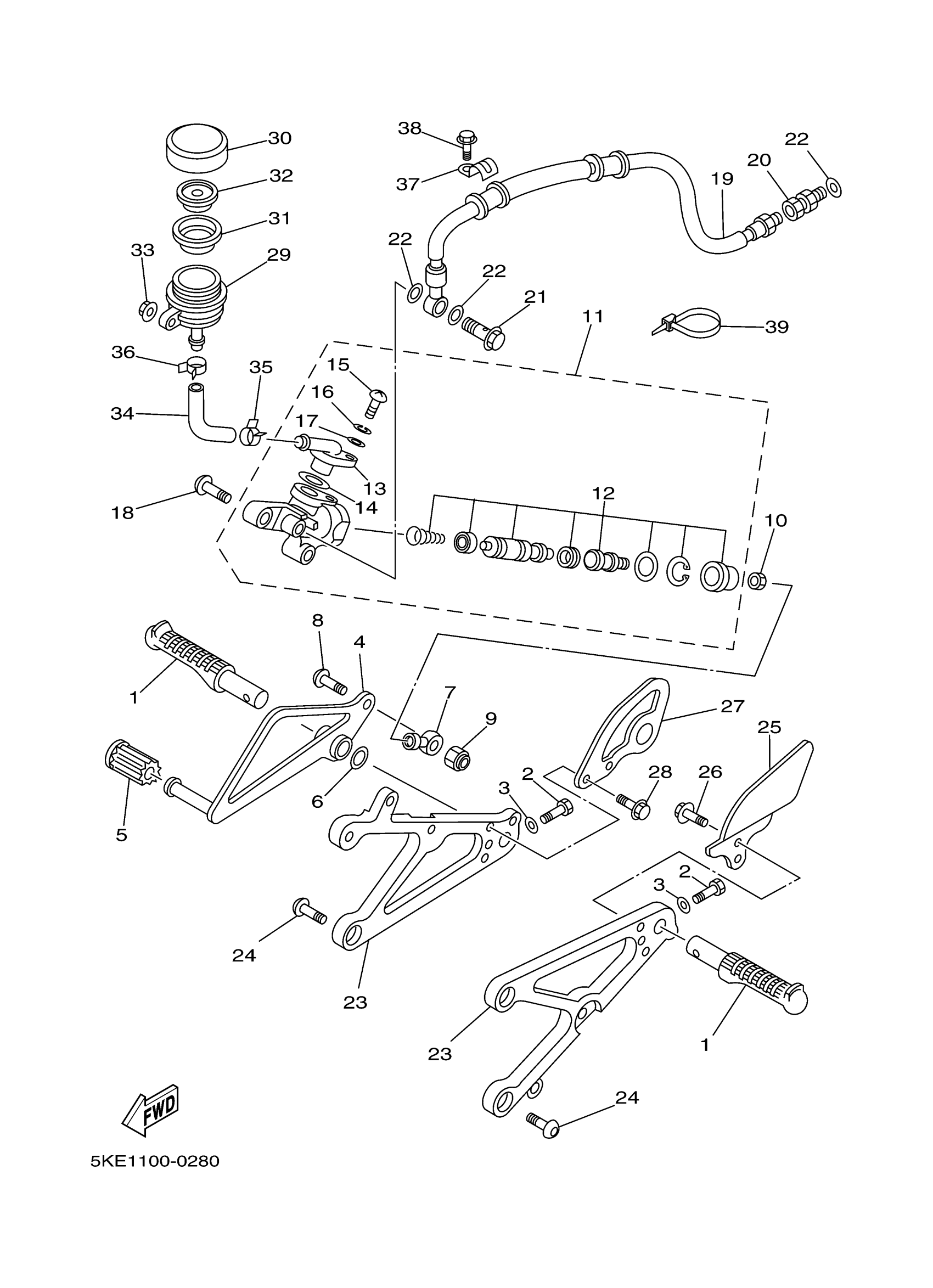

Yamaha TZ250M (TZ250) 5KE1 2000 STAND FOOTREST Diagram

#

Description
Price

1

FOOTREST 1

4JT-27411-20-00

Unavailable

2

BOLT, HEXAGON

97017-06020-00

$4.06

3

WASHER(6TA)

92907-06600-00

$2.72

4

PEDAL, BRAKE

5KE-27211-00-00

Unavailable

5

COVER

240-18113-00-00

$18.49

6

WASHER PLATE 611441260000

90201-14212-00

$8.49

7

JOINT 1

8CW-18156-00-00

$45.99

8

BOLT, BUTTON

92017-06020-00

$3.76

9

NUT, SELF-LOCKING

95617-06100-00

$8.49

10

NUT(6TA)

95317-06600-00

$3.55

11

RR. MASTER CYLINDER ASSY.

3YL-2583V-00-00

Unavailable

12

CYLINDER KIT, MASTER

3YL-W0042-50-00

Unavailable

13

CONNECTOR

29L-2582A-50-00

Unavailable

14

O-RING (22U)

93210-15566-00

$7.49

15

SCREW, PAN HEAD

98511-04012-00

Unavailable

16

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

17

WASHER, PLAIN (646)

92990-04600-00

Unavailable

18

BOLT, BUTTON

92017-08025-00

Unavailable

19

HOSE, BRAKE

4TW-25874-00-00

Unavailable

20

JOINT

3LC-25885-00-00

Unavailable

21

BOLT, UNION

90401-10172-00

Unavailable

22

WASHER, PLATE(481)

90201-10118-00

Unavailable

23

BRACKET, FOOTREST 1

4JT-27412-20-00

Unavailable

24

BOLT, BUTTON

92017-08020-00

Unavailable

25

PLATE 1

4TW-27445-00-00

Unavailable

26

BOLT, WITH WASHER

90119-05022-00

Unavailable

27

BRACKET 2

4TW-27264-00-00

Unavailable

28

BOLT, WITH WASHER

90119-05022-00

Unavailable

29

TANK, RESERVOIR

4EW-25894-00-00

Unavailable

30

CAP, RESERVOIR

3XP-25852-50-00

Unavailable

31

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

Unavailable

32

BUSH,DIAPHRAGM

2VN-25855-00-00

Unavailable

33

NUT,SELF-LOCKING

95607-06200-00

Unavailable

34

HOSE, RESERVOIR

4TW-25895-00-00

Unavailable

35

CLIP (5K4)

90467-14057-00

Unavailable

36

CLIP (7K7)

90467-11044-00

Unavailable

37

HOLDER, BRAKE HOSE 2

3XV-25876-00-00

Unavailable

38

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

39

CLAMP(2TV)

90464-10112-00

Unavailable
