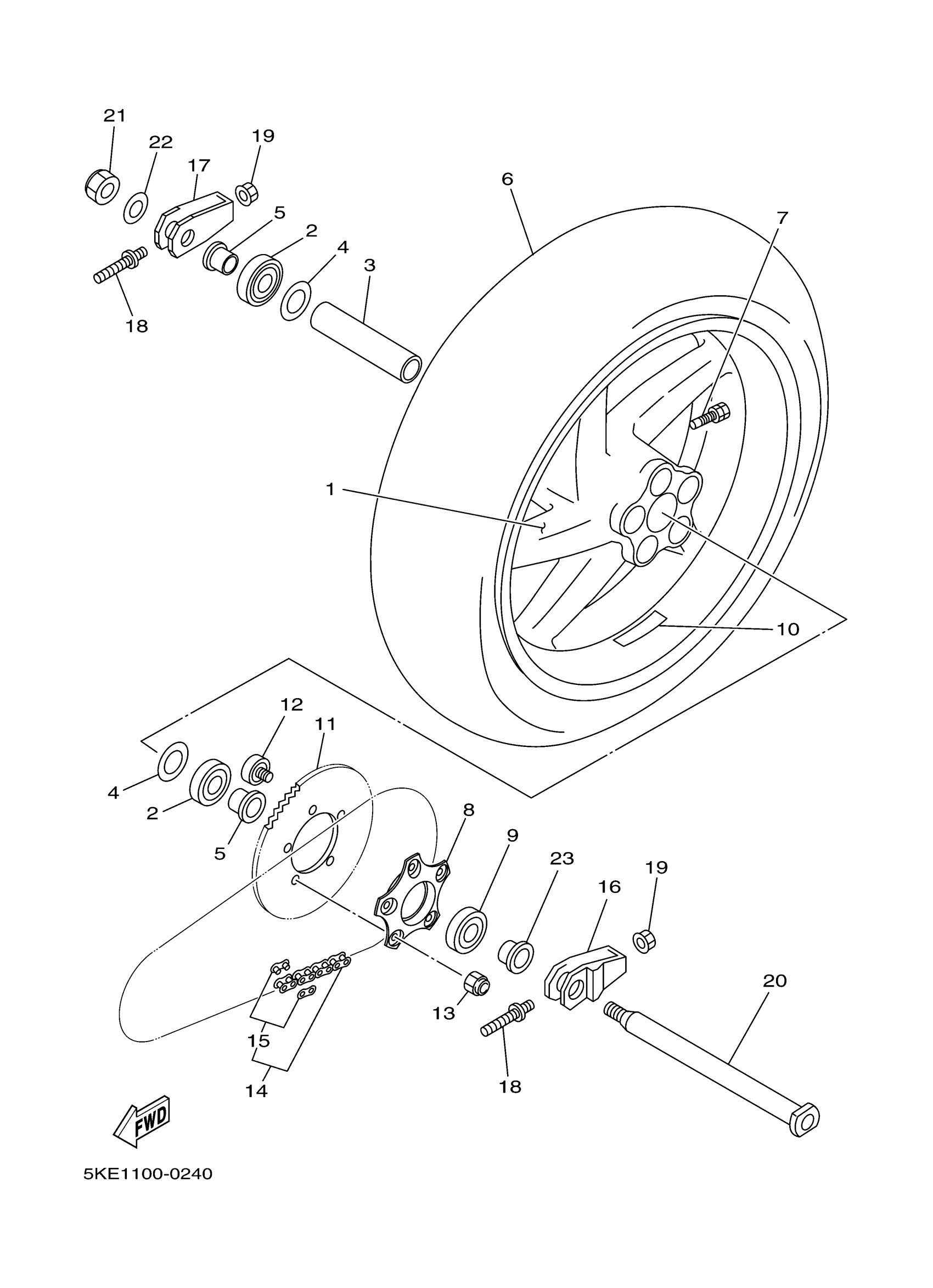

Yamaha TZ250M (TZ250) 5KE1 2000 REAR WHEEL Diagram

#

Description
Price

1

CAST WHEEL, REAR

4TW-25338-00-00

Unavailable

2

BEARING

93306-00521-00

$65.99

3

SPACER, BEARING

4TW-25317-00-00

Unavailable

4

PLATE, FITTING

4DP-2518A-00-00

Unavailable

5

COLLAR, WHEEL

4TW-25383-00-00

Unavailable

6

TIRE (165/55 ZR17 KR108)

94116-1713M-00

Unavailable

7

VALVE, RIM (31A)

93900-00031-00

$16.99

8

CLUTCH, HUB

5KE-25366-02-00

Unavailable

9

BEARING

93306-07806-00

$63.99

10

BALANCER, WHEEL

4B1-25398-00-00

Unavailable

11

SPROCKET, DRIVEN (35T)

4TW-25435-02-00

Unavailable

11

SPROCKET, DRIVEN (36T)

4TW-25436-02-00

Unavailable

11

SPROCKET, DRIVEN (37T)

4TW-25437-02-00

Unavailable

11

SPROCKET, DRIVEN (38T)

4TW-25438-02-00

Unavailable

11

SPROCKET, DRIVEN (39)

4TW-25439-02-00

Unavailable

11

SPROCKET, DRIVEN (40T)

4TW-25440-02-00

Unavailable

12

DAMPER

3YL-25364-01-00

Unavailable

13

NUT, SELF-LOCKING

90185-08162-00

Unavailable

14

CHAIN (RKGB520TRU 110L)

94561-62110-00

Unavailable

14

CHAIN (RKGB520TRU 114L)

94561-62114-00

Unavailable

15

. JOINT, CHAIN

94661-62031-00

Unavailable

16

PULLER, CHAIN 1

4TW-25388-01-00

Unavailable

17

PULLER, CHAIN 2

4TW-25389-01-00

Unavailable

18

BOLT, CHAIN PULLAR

4DP-25379-00-00

Unavailable

19

NUT, SELF-LOCKING(3BN)

90185-08146-00

Unavailable

20

AXLE, WHEEL

4TW-25381-00-00

Unavailable

21

NUT, SELF-LOCKING

90185-18009-00

Unavailable

22

WASHER, PLATE(4TW)

90201-183E1-00

Unavailable

23

COLLAR, WHEEL

4TW-25376-00-00

Unavailable
