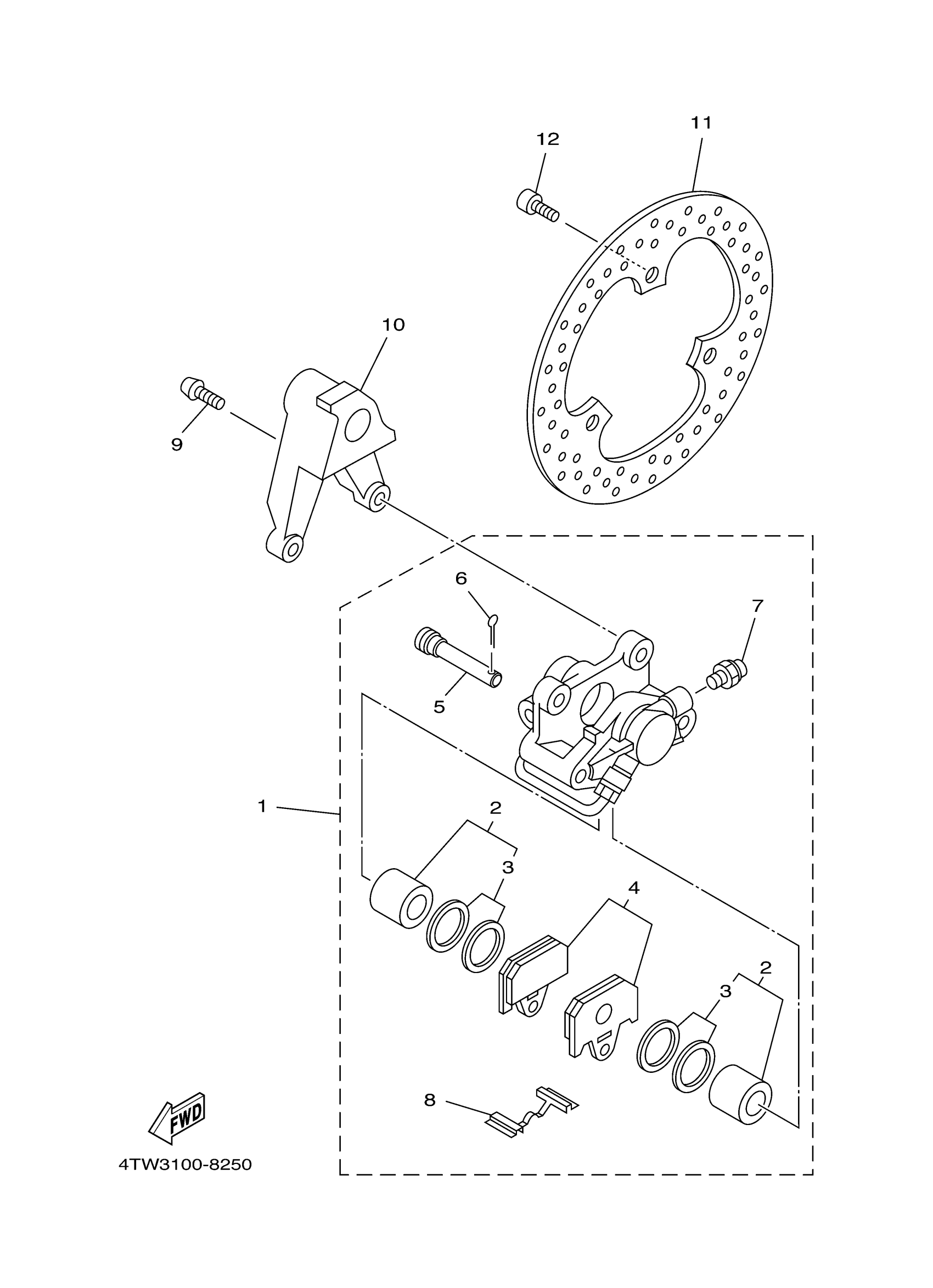

Yamaha TZ250M (TZ250) 5KE1 2000 REAR BRAKE CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, REAR 2

4TW-2580W-01-00

Unavailable

2

. PISTON ASSY, CALIPER

4DP-W0057-00-00

Unavailable

3

CALIPER SEAL KIT

3LC-W0047-50-00

$47.41

4

BRAKE PAD KIT 2

4TW-W0046-00-00

Unavailable

5

PIN, PAD

4JT-25924-00-00

Unavailable

6

PIN, COTTER

91490-16020-00

$5.74

7

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

8

SUPPORT, PAD

5KE-25919-50-00

Unavailable

9

BOLT, BUTTON

92017-08020-00

$5.47

10

BRACKET, CALIPER

4TW-25819-00-00

Unavailable

11

DISC, REAR BRAKE 2

4TW-2582W-00-00

Unavailable

12

BOLT, SOCKET

91317-08025-00

$5.81
