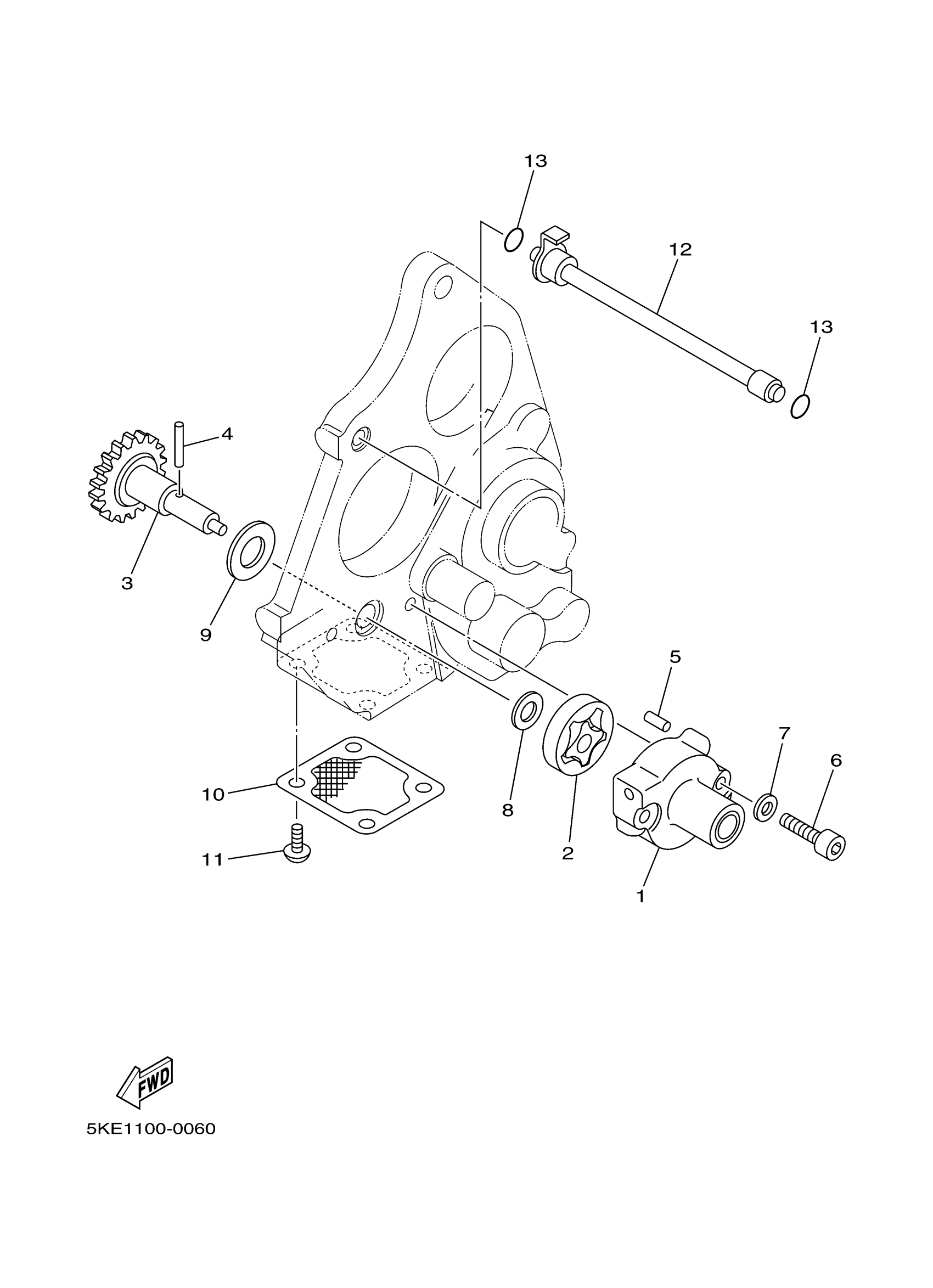

Yamaha TZ250M (TZ250) 5KE1 2000 OIL PUMP Diagram

#

Description
Price

1

COVER, PUMP

5KE-13316-00-00

Unavailable

2

ROTOR ASSY 1

5H0-13310-00-00

Unavailable

3

GEAR, PUMP

4DP-Y1332-00-00

Unavailable

4

PIN,DOWEL (137)

93603-12030-00

$2.07

5

PIN,DOWEL (603)

93604-10011-00

$8.49

6

BOLT, SOCKET

91317-05025-00

$2.75

7

WASHER(1RW)

92907-05600-00

$3.78

8

WASHER, PLATE (5F7)

90201-08512-00

$8.49

9

WASHER, PLATE (5N6)

90201-127E1-00

$4.29

10

STRAINER, OIL

5KE-13411-00-00

Unavailable

11

SCREW, PAN

98507-06010-00

$3.55

12

PIPE, DELIVERY 1

5KE-13161-00-00

Unavailable

13

O-RING (26H)

93210-06632-00

$8.49
