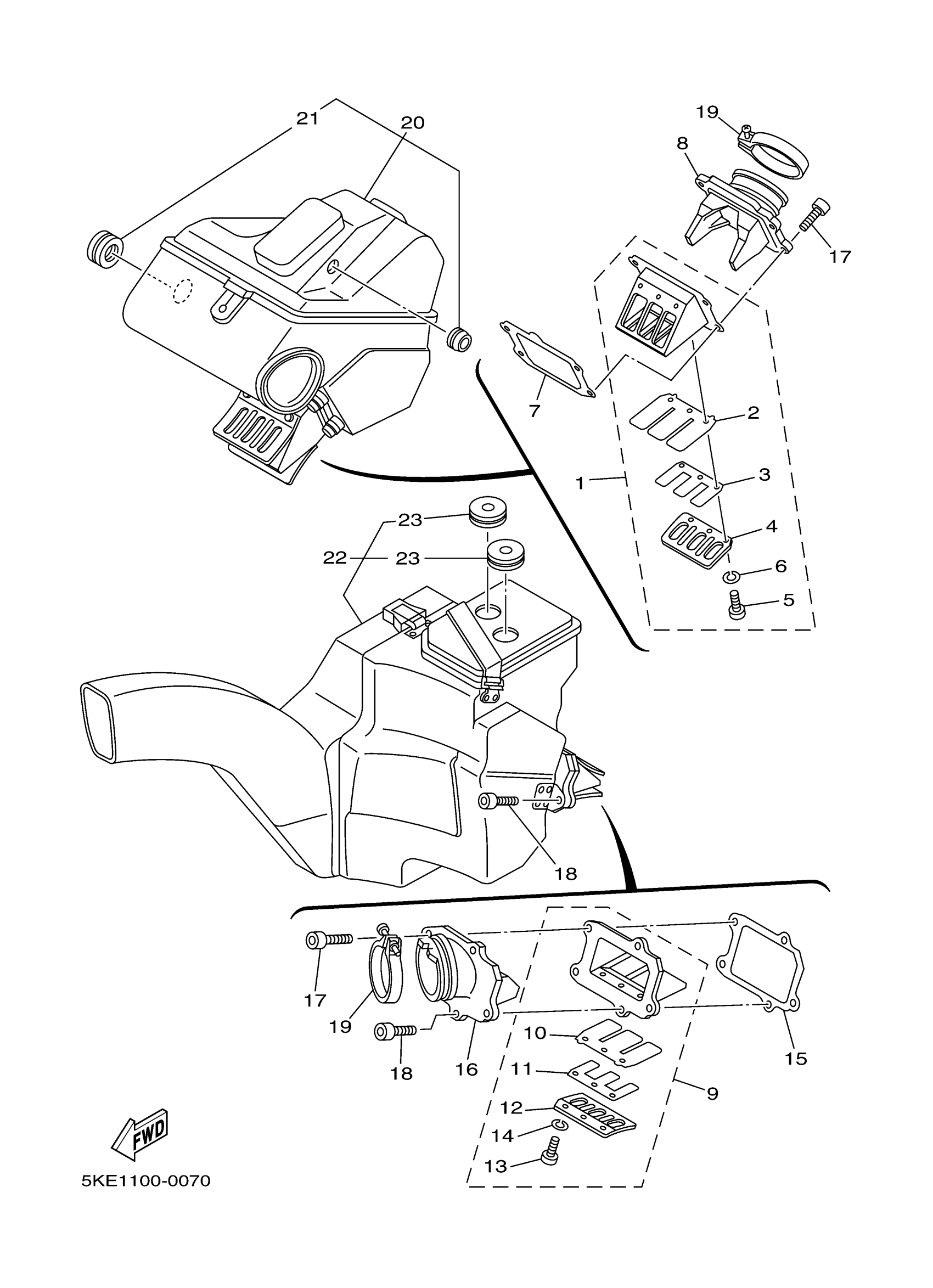

Yamaha TZ250M (TZ250) 5KE1 2000 INTAKE Diagram

#

Description
Price

1

REED VALVE ASSY

5KE-13610-00-00

Unavailable

2

REED, VALVE

3XV-13613-01-00

$12.99

3

REED, VALVE 2

2KM-13614-00-00

$20.34

4

STOPPER, REED VALVE 2

3YL-13617-00-00

Unavailable

5

SCREW, PAN

98507-03006-00

$6.48

6

WASHER, SPRING

92990-03100-00

$5.75

7

GASKET, VALVE SEAT

5KE-13621-01-00

$7.76

8

MANIFOLD, INTAKE

5KE-13555-00-00

$48.82

9

REED VALVE ASSY

5KE-13620-00-00

Unavailable

10

REED, VALVE

3XV-13613-01-00

$12.99

11

REED, VALVE 2

2KM-13614-00-00

$20.34

12

STOPPER, REED VALVE 2

3YL-13617-00-00

Unavailable

13

SCREW, PAN

98507-03006-00

$6.48

14

WASHER, SPRING

92990-03100-00

$5.75

15

GASKET, VALVE SEAT

5KE-13622-00-00

$9.21

16

JOINT, CARBURETOR

5KE-13565-00-00

Unavailable

17

BOLT,SOCKET

91317-06025-00

Unavailable

18

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

19

CLAMP,HOSE

90460-52210-00

Unavailable

20

BOX COMP.

5KE-2160A-01-00

Unavailable

21

GROMMET (3AB)

90480-25482-00

Unavailable

22

BOX COMP.

5KE-21240-00-00

Unavailable

23

GROMMET (3AB)

90480-25482-00

Unavailable
