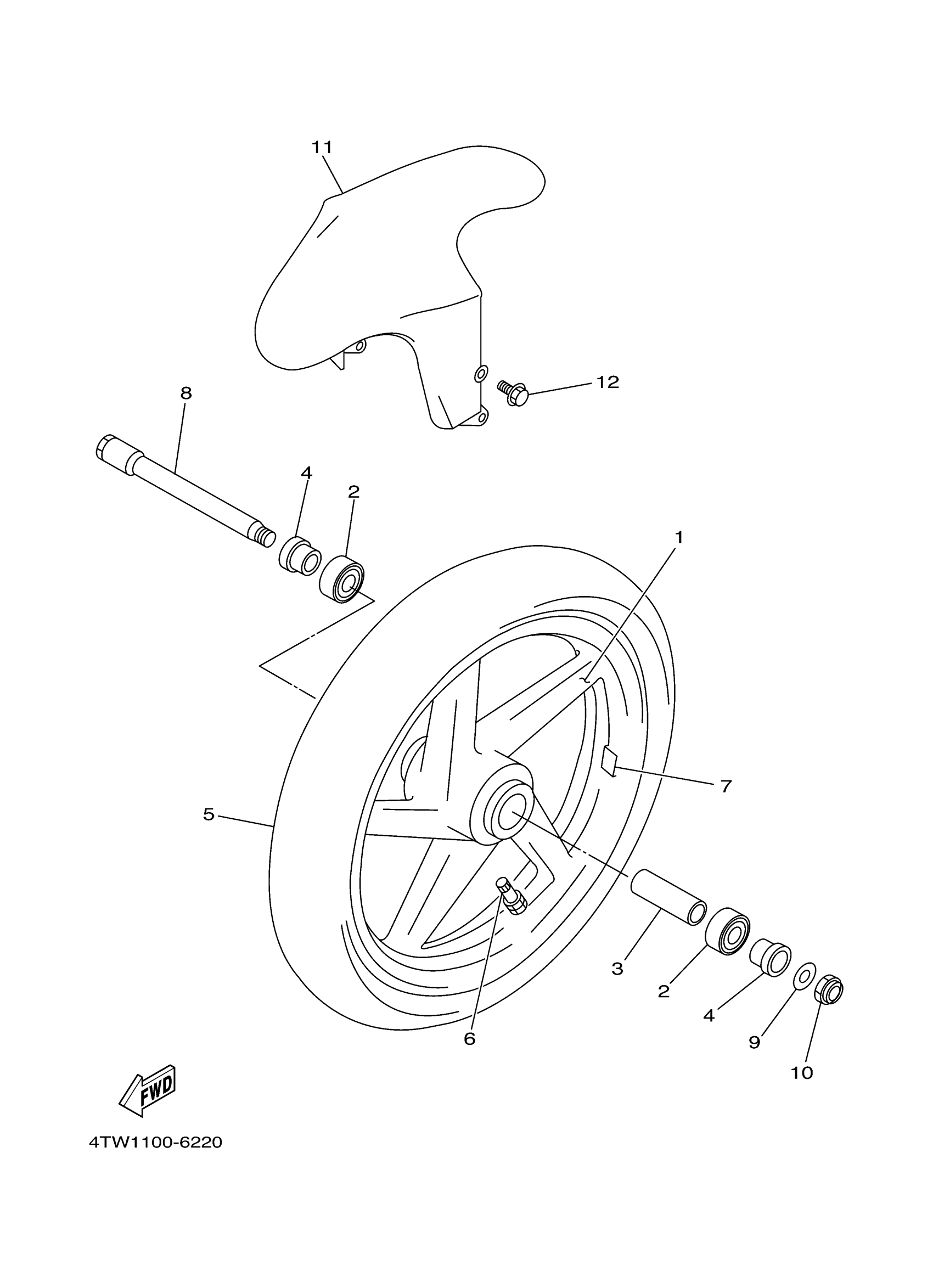

Yamaha TZ250M (TZ250) 5KE1 2000 FRONT WHEEL Diagram

CAST WHEEL, FRONT

4TW-25168-00-00

Unavailable

BEARING

93306-00521-00

$65.99

SPACER, BEARING

4TW-25117-00-00

Unavailable

COLLAR, WHEEL

4TW-25183-00-00

Unavailable

TIRE (3.10/4.80 R17 KR106)

94131-1709C-00

Unavailable

VALVE, RIM (31A)

93900-00031-00

$16.99

BALANCER, WHEEL

4B1-25398-00-00

Unavailable

AXLE, WHEEL

4DP-25181-10-00

Unavailable

WASHER, PLATE(4TW)

90201-183E1-00

Unavailable

NUT, SELF-LOCKING

90185-18009-00

$18.99

FRONT FENDER COMP.

4TW-21510-00-00

Unavailable

SCREW, ROUND HEAD(55K)

90150-06021-00

$8.49
