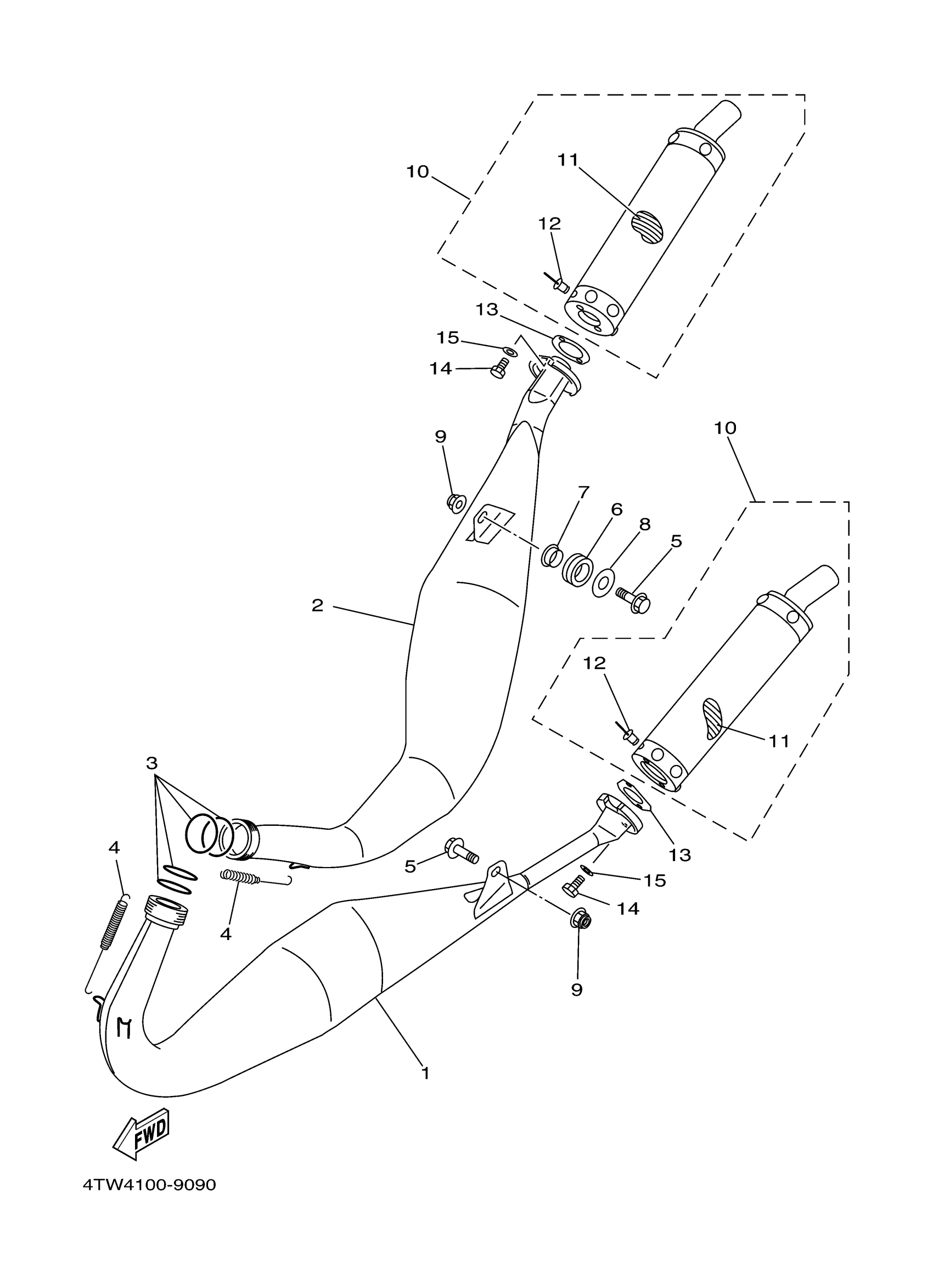

Yamaha TZ250M (TZ250) 5KE1 2000 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSY 1

5KE-14610-10-00

Unavailable

2

EXHAUST PIPE ASSY 2

5KE-14620-10-00

Unavailable

3

O-RING(1LX)

93210-42728-00

$13.70

4

SPRING, TENSION (5F6)

90507-20035-00

$5.03

5

BOLT, SMALL FLANGE

95027-08030-00

$2.80

6

GROMMET(7Y6)

90480-20389-00

$12.59

7

COLLAR(4BH)

90387-084Y3-00

$5.68

8

WASHER 6464313202

90202-08022-00

$3.33

9

NUT, SELF-LOCKING(3BN)

90185-08146-00

$7.91

10

SILENCER, EXHAUST

5KE-14753-00-00

Unavailable

11

FIBER

4JT-1469A-00-00

$34.06

12

RIVET, BLIND(3LC)

90267-48147-00

Unavailable

13

GASKET, SILENCER

4DP-14755-00-00

Unavailable

14

BOLT, HEXAGON

97017-06020-00

$2.37

15

WASHER(6TA)

92907-06600-00

$0.73
