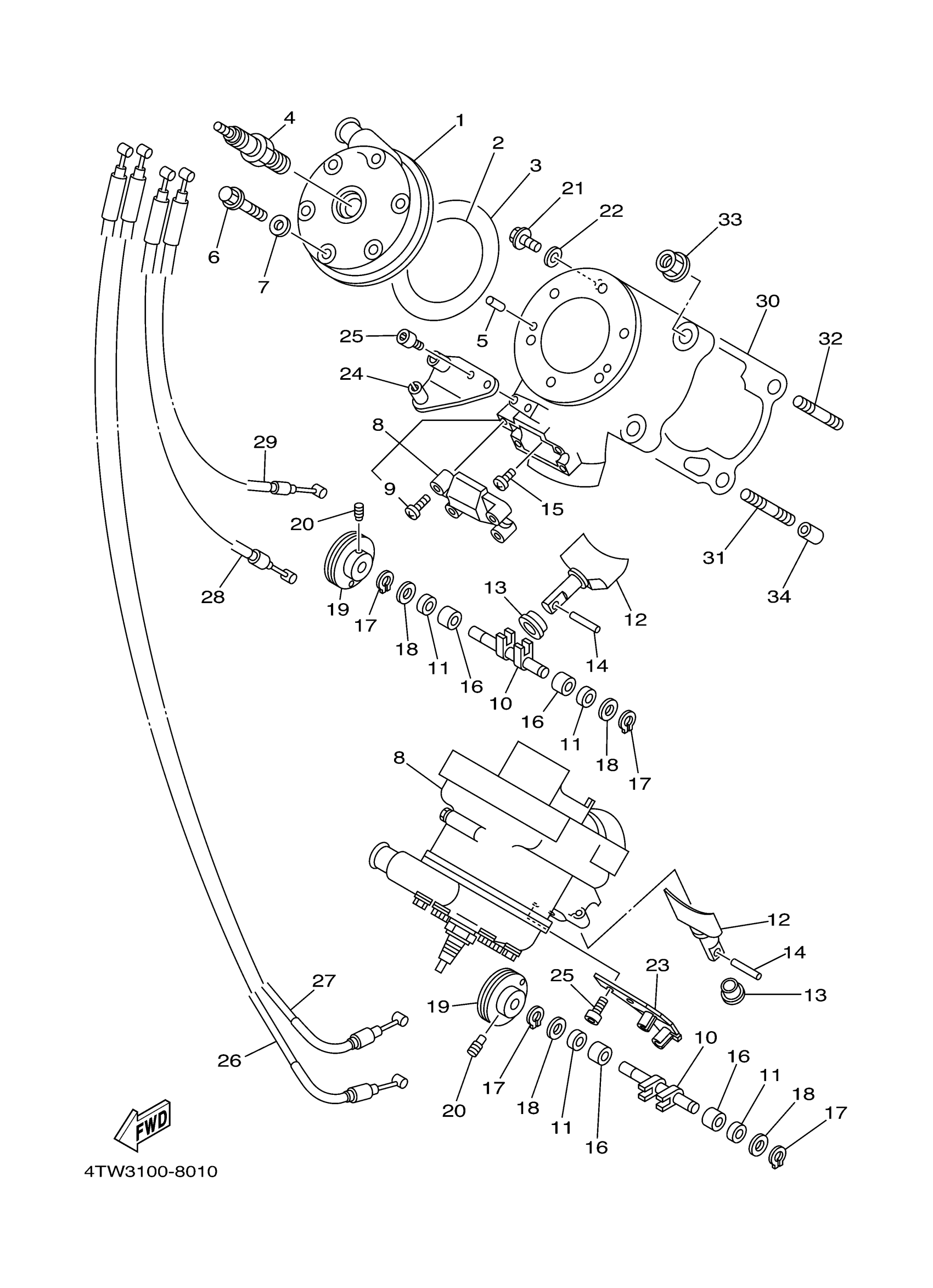

Yamaha TZ250M (TZ250) 5KE1 2000 CYLINDER HEAD Diagram

#

Description
Price

1

HEAD, CYLINDER 1

5KE-11111-00-00

Unavailable

2

O-RING (4U8)

93210-63442-00

$7.49

3

O-RING(85G)

93210-88696-00

$14.99

4

PLUG, SPARK (R6179A-105P)

94702-00374-00

Unavailable

5

PIN, DOWEL (278)

93604-08071-00

$8.49

6

BOLT, WASHER BASED

90105-063A0-00

$1.86

7

GASKET (4V2)

90430-06166-00

$3.76

8

CYLINDER

5KE-11310-00-00

Unavailable

9

SCREW, BINDING

98907-05020-00

$8.49

10

SHAFT 1

3LC-1131V-00-00

Unavailable

11

OIL SEAL (8X12X3-371)

93104-08040-00

$14.99

12

VALVE 1

5KE-1131A-00-00

Unavailable

13

HOLDER 1

1RK-1131E-00-00

Unavailable

14

PIN, DOWEL

93604-26256-00

$0.69

15

BOLT

90109-05002-00

$8.49

16

BUSH, SOLID(3LC)

90380-08192-00

Unavailable

17

CIRCLIP (22K)

93440-08130-00

Unavailable

18

WASHER PLATE 141181390000

90201-08085-00

Unavailable

19

PULLEY 1

4DP-1132E-00-00

Unavailable

20

SCREW

90149-05149-00

Unavailable

21

BOLT, FLANGE

95817-06010-00

Unavailable

22

GASKET (4V2)

90430-06166-00

$3.76

23

SETTER, WIRE

3YL-11932-10-00

Unavailable

24

SETTER, WIRE

3YL-11932-00-00

Unavailable

25

BOLT, SOCKET

91317-05010-00

Unavailable

26

CABLE, PULLEY 1

4TW-1133E-00-00

Unavailable

27

CABLE, PULLEY 2

4TW-1133F-00-00

Unavailable

28

CABLE, PULLEY 3

4TW-1133G-01-00

Unavailable

29

CABLE, PULLEY 4

4TW-1133H-02-00

Unavailable

30

GASKET, CYLINDER (0.5T)

4DP-11351-31-00

Unavailable

30

GASKET, CYLINDER (0.4T)

4DP-11351-40-00

Unavailable

30

GASKET, CYLINDER

4JT-11351-02-00

Unavailable

30

GASKET, CYLINDER

4JT-11351-12-00

Unavailable

30

GASKET, CYLINDER (0.6T)

4JT-11351-22-00

Unavailable

31

BOLT, STUD (24X)

90116-08409-00

Unavailable

32

BOLT, STUD(3XV)

90116-08564-00

Unavailable

33

NUT

90179-08003-00

Unavailable

34

PIN, DOWEL(3VD)

99530-10114-00

Unavailable
