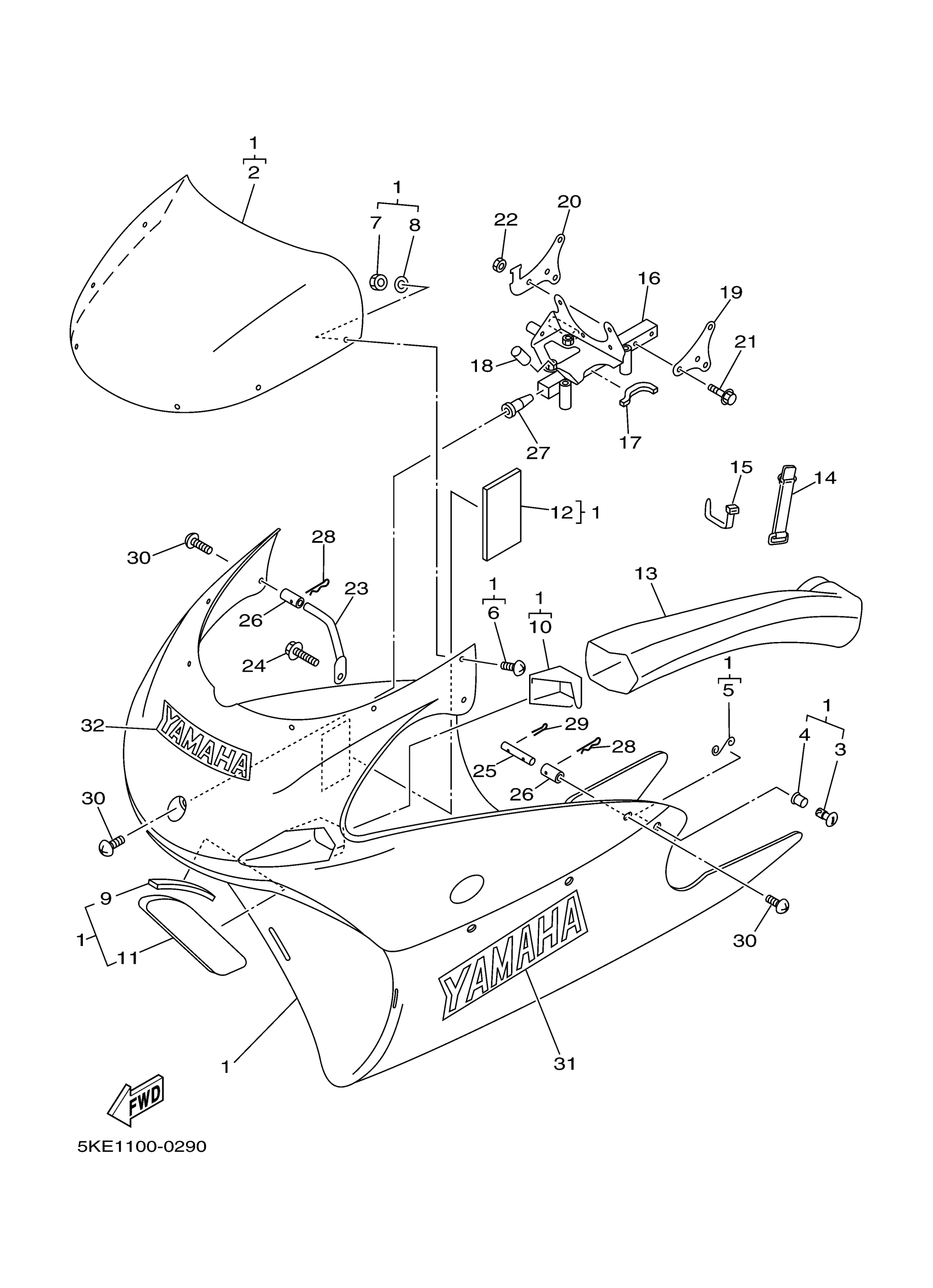

Yamaha TZ250M (TZ250) 5KE1 2000 COWLING 1 Diagram
#
Description
Price
1
COWLING ASSY
5KE-28350-00-00
Unavailable
2
. WINDSHIELD
4TW-28381-10-00
Unavailable
8
WASHER(6E1)
92907-04200-00
Unavailable
9
DAMPER 1
2TV-21638-00-00
Unavailable
10
. DAMPER
4TW-28371-00-00
Unavailable
11
. DAMPER
4TW-28371-10-00
Unavailable
13
DUCT 1
5KE-2838N-00-00
Unavailable
15
CLAMP
90465-10098-00
Unavailable
16
STAY 1
5KE-28356-01-00
Unavailable
17
MOLE 1
5KE-28345-10-00
Unavailable
18
HOSE(3GM)
90446-17346-00
Unavailable
19
BRACKET 1
4DP-2836A-00-00
Unavailable
20
BRACKET 2
4TW-2836E-00-00
Unavailable
21
BOLT, SMALL FLANGE
95027-06030-00
Unavailable
22
NUT, SELF-LOCKING
95617-06100-00
Unavailable
23
STAY 1
4JT-28321-00-00
Unavailable
24
BOLT, FLANGE(4DU)
95027-06014-00
Unavailable
25
STAY 3
3YL-28358-00-00
Unavailable
26
NUT
4A0-28364-00-00
Unavailable
27
NUT
4DP-28362-01-00
Unavailable
28
CLIP, COWLING
4DP-28334-01-00
Unavailable
29
PIN, COTTER(6L5)
91490-25030-00
Unavailable
30
SCREW, ROUND HEAD(55K)
90150-06021-00
Unavailable
31
EMBLEM, YAMAHA
99247-00280-00
Unavailable
32
EMBLEM, YAMAHA
99247-00100-00
Unavailable
