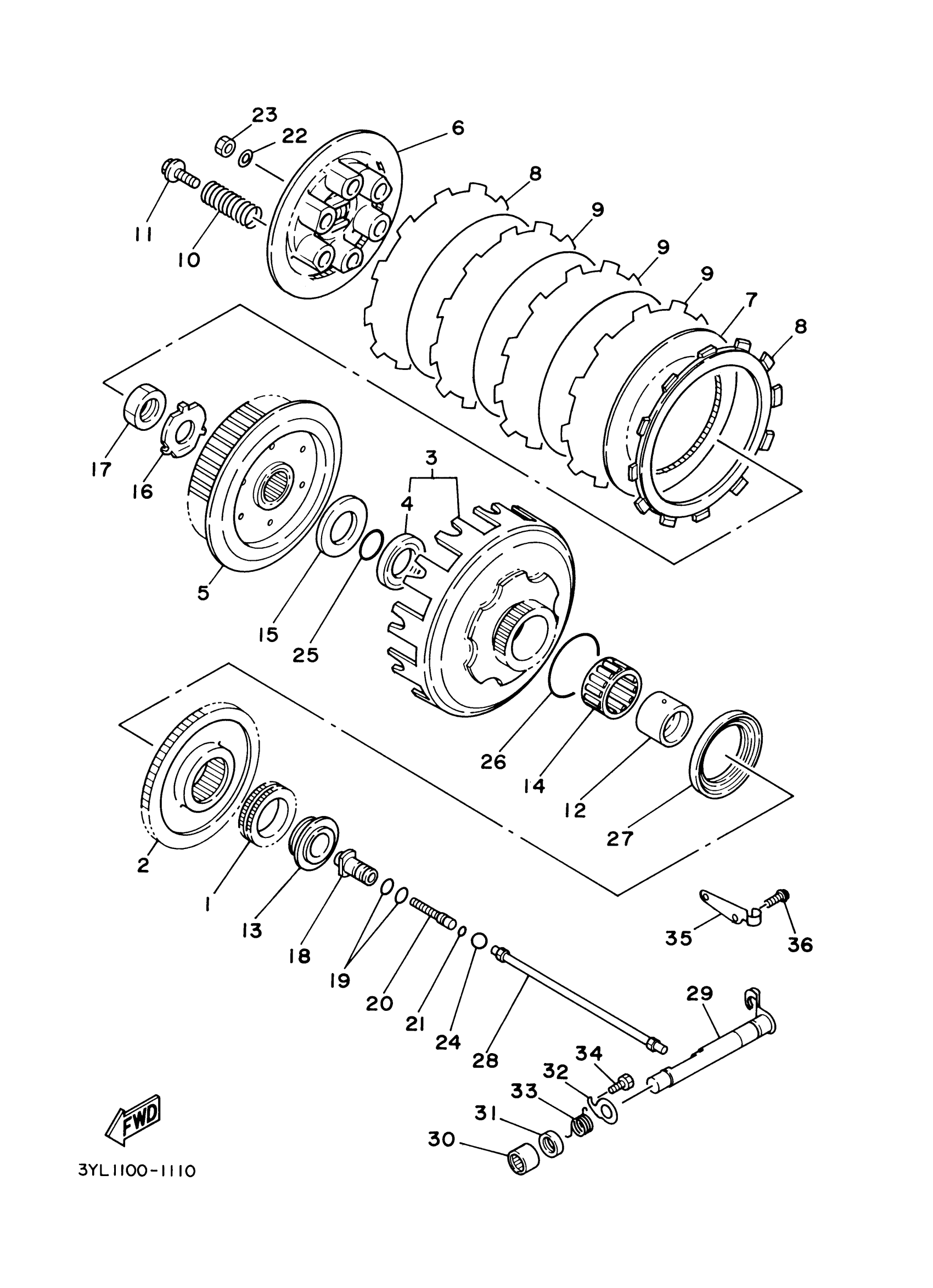

Yamaha TZ250M (TZ250) 5KE1 2000 CLUTCH Diagram

#

Description
Price

1

GEAR, PUMP DRIVE

4DP-13324-00-00

Unavailable

2

GEAR, PRIMARY DRIVEN

5KE-16151-00-00

Unavailable

3

CLUTCH HOUSING ASSY

5KE-16310-00-00

Unavailable

4

OIL SEAL (5F7)

93102-30243-00

$15.99

5

BOSS, CLUTCH

3R4-16371-01-00

Unavailable

6

PLATE, PRESSURE 1

26J-16351-00-00

$116.99

7

PLATE, CLUTCH 1

168-16324-10-00

$21.99

8

PLATE, FRICTION

3YL-16321-01-00

$30.99

9

PLATE, FRICTION

3AK-16321-00-00

$30.99

10

SPRING, COMPRESSION(38V)

90501-230A5-00

$10.49

11

SCREW, WITH WASHER (1W4)

90159-06016-00

$8.49

12

SPACER 1

5F7-16181-00-00

Unavailable

13

PLATE, THRUST 1

3YL-16154-00-00

Unavailable

14

BEARING (5F7

93310-332J5-00

Unavailable

15

WASHER, THRUST

5F7-16153-00-00

Unavailable

16

WASHER, LOCK (26J)

90215-20212-00

Unavailable

17

NUT (3R4)

90170-20255-00

Unavailable

18

ROD, PUSH 1

59W-16356-00-00

Unavailable

19

O-RING (1J7)

93210-09350-00

Unavailable

20

SCREW, ADJUSTING

5F7-16343-00-00

Unavailable

21

O-RING (4A0)

93210-04279-00

Unavailable

22

WASHER(6TA)

92907-06200-00

Unavailable

23

NUT(6TA)

95317-06600-00

Unavailable

24

BALL (1M1)

93515-32029-00

Unavailable

25

O-RING

93210-22298-00

Unavailable

26

O-RING (5F7)

93210-42482-00

Unavailable

27

OIL SEAL (4A0)

93101-56095-00

Unavailable

28

ROD, PUSH 2

5KE-16357-00-00

Unavailable

29

PUSH LEVER COMP.

5KE-16381-00-00

Unavailable

30

BRG,CYL-CAL ROLLER 6G TM

93315-11206-00

Unavailable

31

OIL SEAL (4G0)

93102-12224-00

Unavailable

32

PLATE, SEAT

3XV-16384-00-00

Unavailable

33

SPRING, TORSION

90508-121A2-00

Unavailable

34

BOLT, SOCKET

91317-05010-00

Unavailable

35

HOLDER, CLUTCH CABLE

3YL-15441-00-00

Unavailable

36

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable
