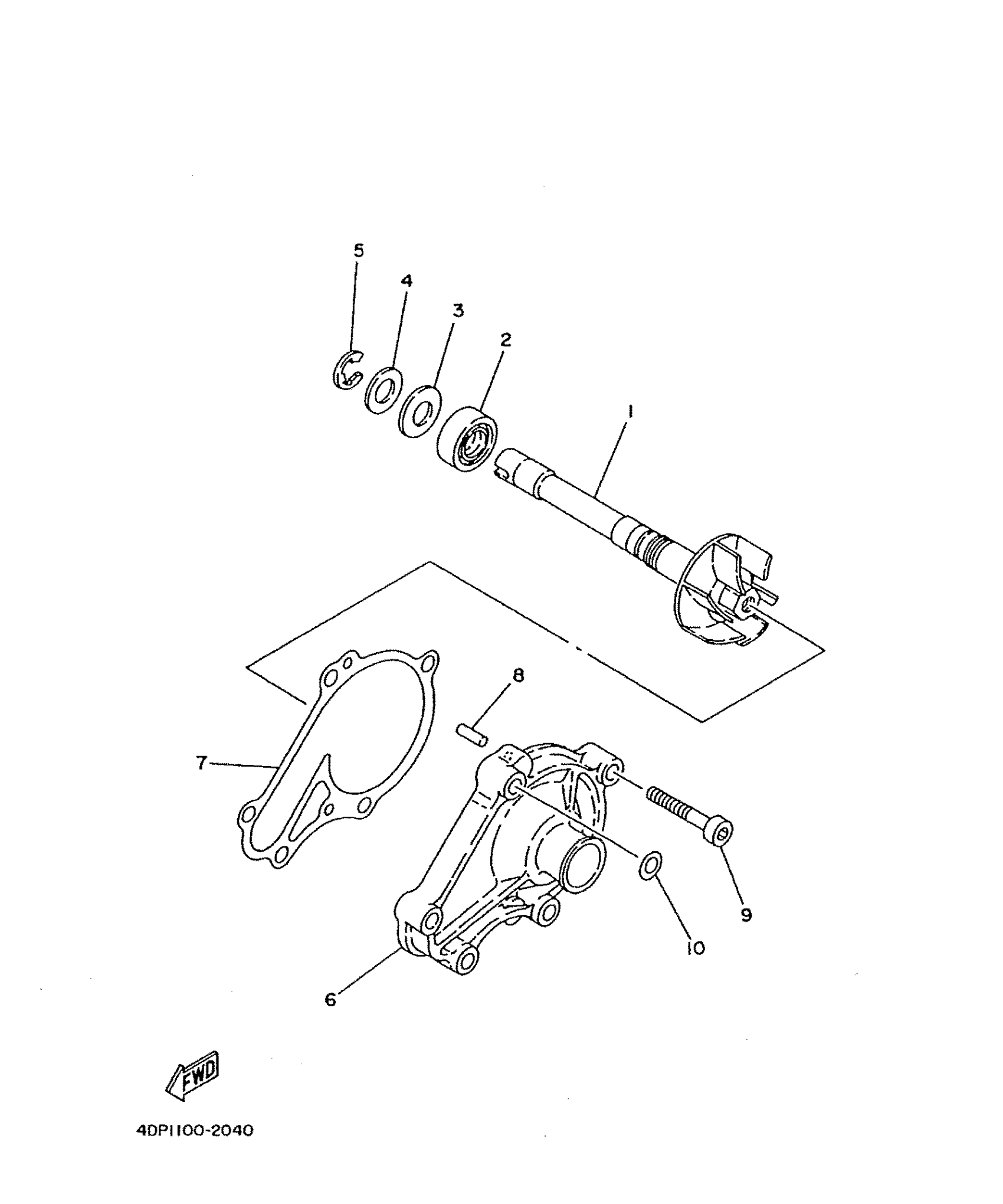

Yamaha TZ250L1 (TZ250) 4TW4 1999 WATER PUMP Diagram

#

Description
Price

1

IMPELLER SHAFT ASSEMBLY

3XV-12450-00-00

Unavailable

2

OIL SEAL (4V2)

93103-12119-00

Unavailable

3

WASHER, PLATE(3YL)

90201-114P2-00

$3.32

4

WASHER, PLATE

90201-112U0-00

$3.76

5

CIRCLIP(24H)

99009-11400-00

$5.75

6

COVER, HOUSING

3XV-12422-00-00

Unavailable

7

GASKET, HOUSING COVER 2

3XV-12428-01-00

$12.05

8

PIN,DOWEL (603)

93604-10011-00

$4.89

9

BOLT,SOCKET

91317-06025-00

$1.91

10

GASKET (4V2)

90430-06166-00

$3.22
