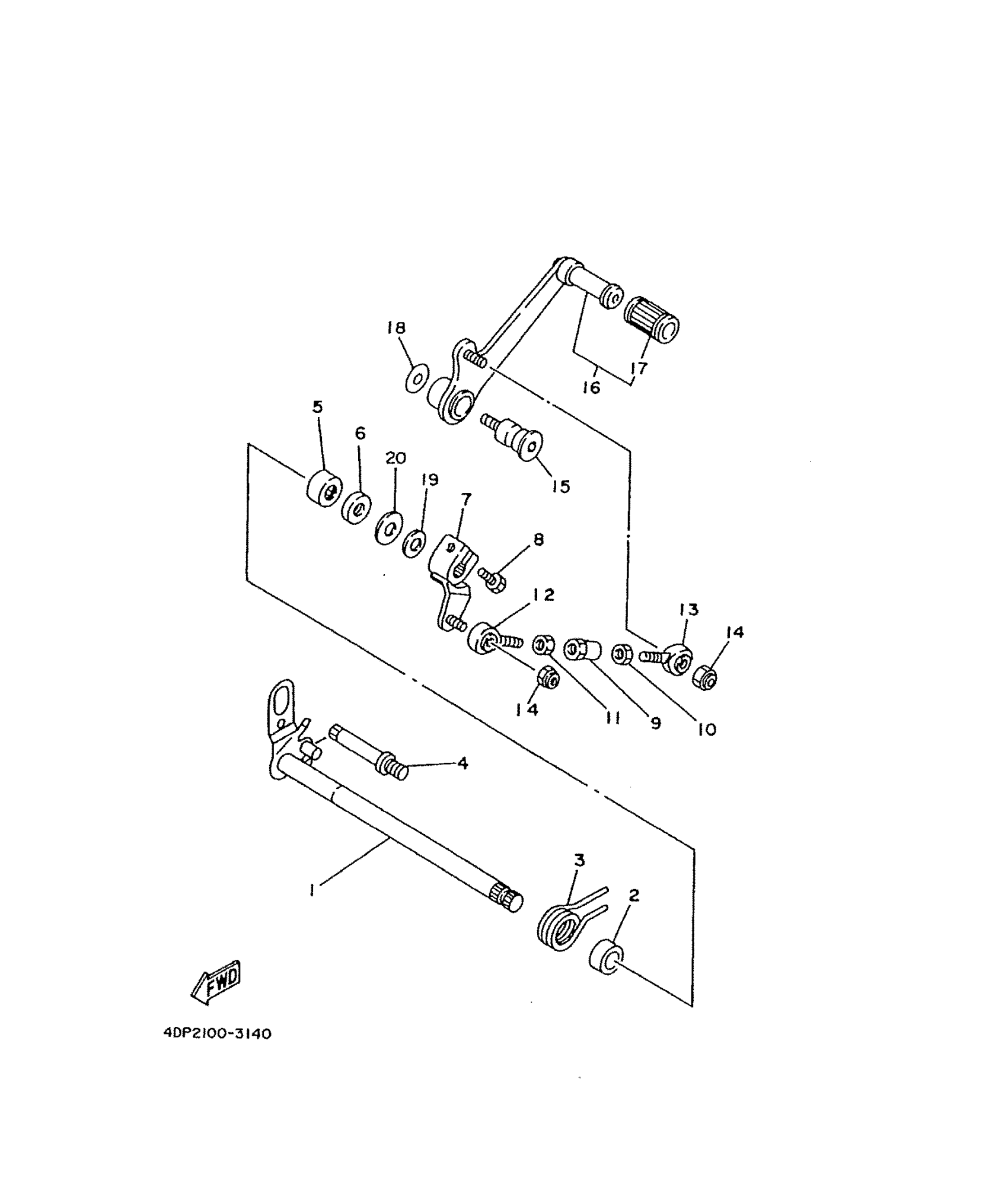

Yamaha TZ250L1 (TZ250) 4TW4 1999 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT SHAFT ASSEMBLY

4DP-18101-00-00

Unavailable

2

SPACER

90560-12361-00

Unavailable

3

SPRING, TORSION

90508-29742-00

Unavailable

4

STOPPER, SCREW

3MA-18127-00-00

Unavailable

5

BUSH, SOLID

90380-12214-00

Unavailable

6

OIL SEAL (12X22X5-371)

93102-12106-00

$11.49

7

ARM, SHIFT

4DP-18112-00-00

Unavailable

8

BOLT, HEXAGON

97017-06020-00

$4.06

9

ROD, SHIFT

5F7-18115-00-00

Unavailable

10

NUT (2H9)

90170-06228-00

$9.49

11

NUT(650)

95380-06700-00

$8.49

12

JOINT, ROD 1

5F7-18116-00-00

Unavailable

13

JOINT, ROD 2

5F7-18117-00-00

Unavailable

14

NUT, SELF-LOCKING

95617-06100-00

$8.49

15

BOLT(4DP)

90109-087F6-00

Unavailable

16

SHIFT PEDAL ASSY

4DP-18110-00-00

Unavailable

17

COVER, SHIFT PEDAL

3FV-18113-00-00

Unavailable

18

WASHER, PLATE (12X)

90201-087F0-00

Unavailable

19

SPACER 6474215500

90560-12075-00

Unavailable

20

WASHER

90201-12588-00

Unavailable
