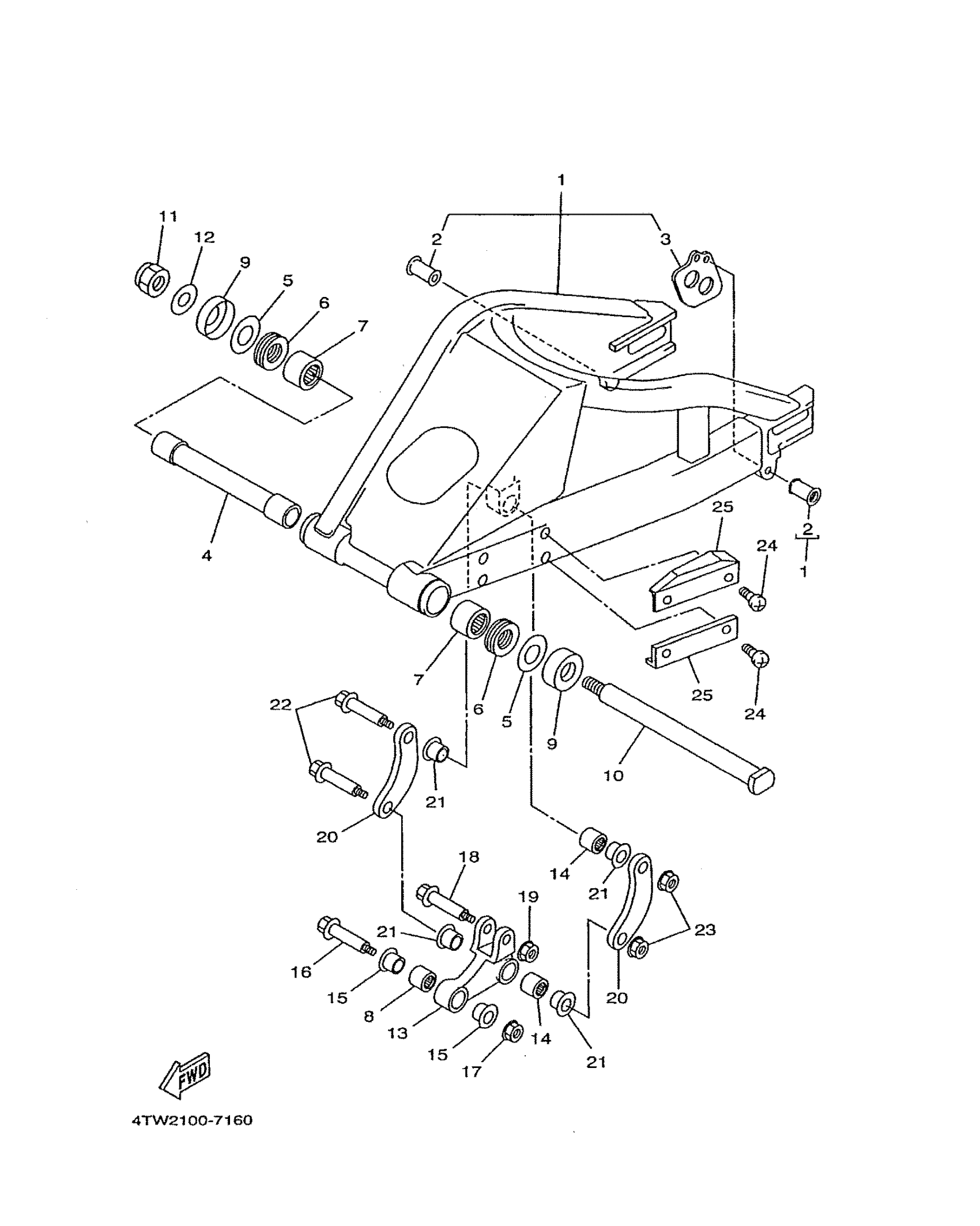

Yamaha TZ250L1 (TZ250) 4TW4 1999 REAR ARM Diagram
#
Description
Price
1
REAR ARM COMP.
4TW-22110-02-00
Unavailable
2
. HOOK
4JT-2216F-10-00
Unavailable
3
. GUIDE, CHAIN
4TW-22187-00-00
Unavailable
4
BUSH
3XV-22184-00-00
Unavailable
6
BEARING
93342-22518-00
Unavailable
8
BEARING(4DP)
93320-21507-00
Unavailable
9
COVER, THRUST 1
3FV-22128-00-00
Unavailable
10
SHAFT, PIVOT
3MA-22141-01-00
Unavailable
12
WASHER(8BT)
92907-18200-00
Unavailable
13
ARM, RELAY
4TW-2217A-00-00
Unavailable
14
BEARING(4DP)
93320-21507-00
Unavailable
15
COLLAR(4DP)
90387-124Y8-00
Unavailable
16
BOLT
90101-10709-00
Unavailable
17
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
18
BOLT
90101-10709-00
Unavailable
19
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
20
ROD, CONNECTING 1
4TW-2217F-00-00
Unavailable
21
COLLAR(4DP)
90387-124Y8-00
Unavailable
22
BOLT
90101-10709-00
Unavailable
23
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
24
SCREW, BINDING
98907-06020-00
Unavailable
25
PROTECTOR, CHAIN
4TW-22147-00-00
Unavailable
