Description

Price

1

COVER, PUMP

3XV-13316-00-00

Unavailable

2

ROTOR ASSY 1

5H0-13310-00-00

Unavailable

3

GEAR, PUMP

4DP-Y1332-00-00

Unavailable

4

PIN,DOWEL (137)

93603-12030-00

$2.07

5

PIN,DOWEL (603)

93604-10011-00

$8.49

6

BOLT, SOCKET

91317-05020-00

$3.28

7

WASHER, PLATE (5F7)

90201-08512-00

$8.49

8

WASHER, PLATE (5N6)

90201-127E1-00

$4.29

9

STRAINER, OIL

3XV-13411-00-00

Unavailable

10

STRAINER 2

3XV-13421-00-00

Unavailable

11

PIPE, DELIVERY 1

3XV-13161-00-00

Unavailable

12

SCREW, PAN

98517-05012-00

$4.73

13

O-RING (11M)

93210-07540-00

$7.49

14

UNION(2YY)

90405-06044-00

$40.99

15

HOSE (L200)

90445-10752-00

$4.99

16

CLIP

90467-09120-00

Unavailable

17

BOLT, UNION

90401-06004-00

Unavailable

18

GASKET (4V2)

90430-06166-00

Unavailable

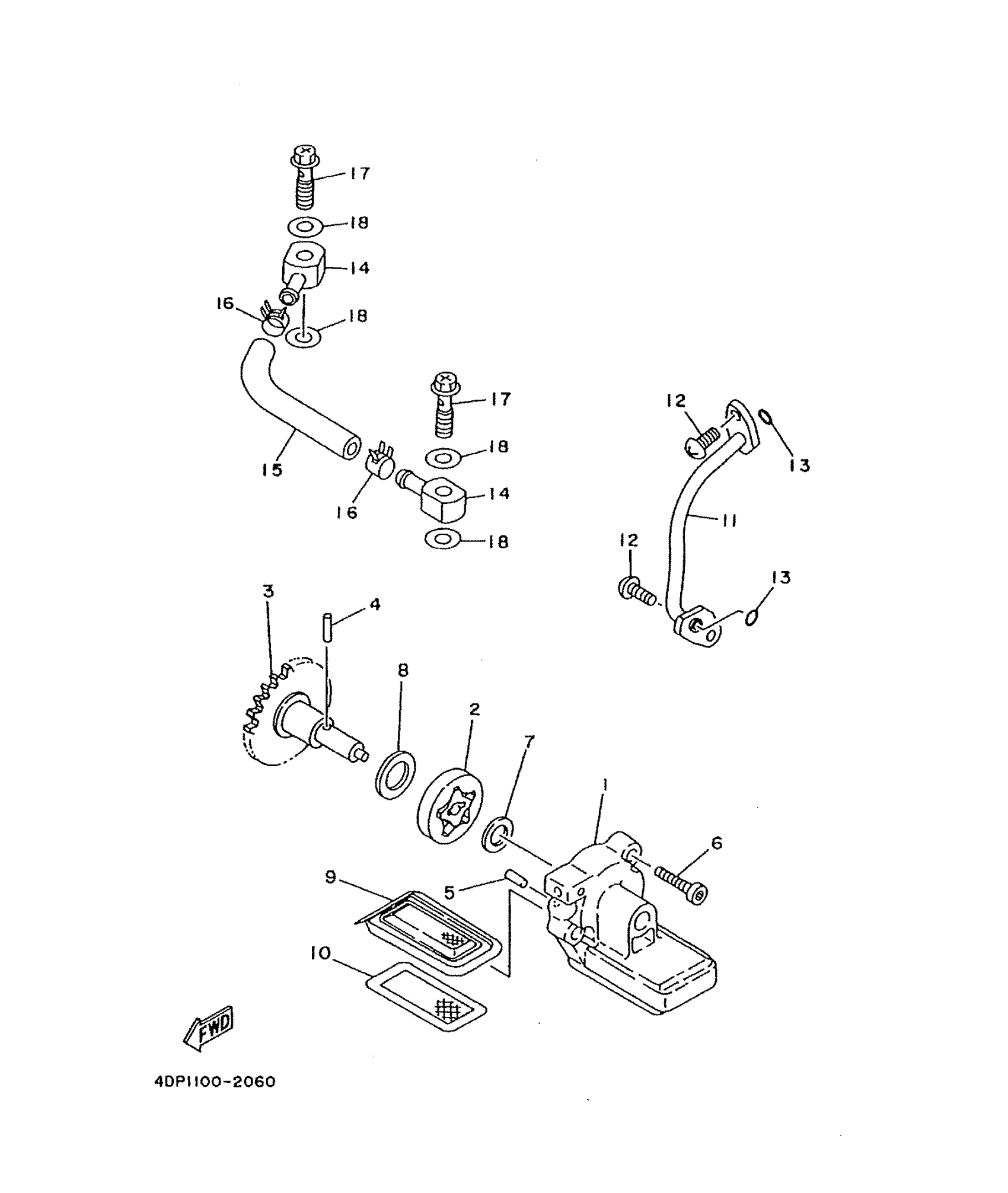

Yamaha TZ250L1 (TZ250) 4TW4 1999 OIL PUMP Diagram

COVER, PUMP

ROTOR ASSY 1

GEAR, PUMP

PIN,DOWEL (137)

PIN,DOWEL (603)

BOLT, SOCKET

WASHER, PLATE (5F7)

WASHER, PLATE (5N6)

STRAINER, OIL

STRAINER 2

PIPE, DELIVERY 1

SCREW, PAN

O-RING (11M)

UNION(2YY)

HOSE (L200)

CLIP

BOLT, UNION

GASKET (4V2)
