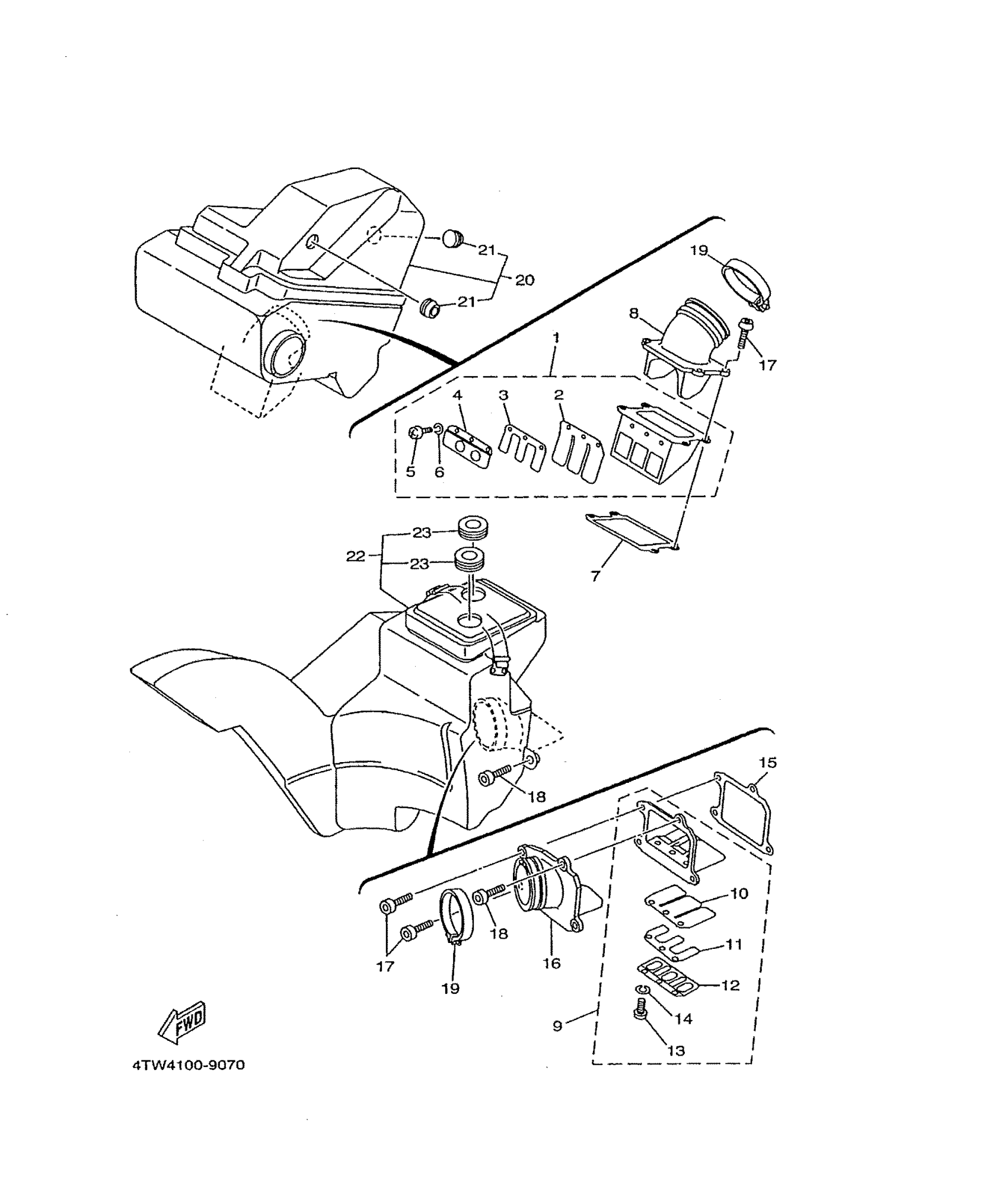

Yamaha TZ250L1 (TZ250) 4TW4 1999 INTAKE Diagram
#
Description
Price
1
REED VALVE ASSEMBLY
3YL-13610-00-00
Unavailable
4
. STOPPER, REED VALVE
3YL-13616-00-00
Unavailable
8
MANIFOLD, INTAKE
4TW-13555-00-00
Unavailable
9
REED VALVE ASSEMBLY
3YL-13620-00-00
Unavailable
12
STOPPER, REED VALVE 2
3YL-13617-00-00
Unavailable
16
JOINT, CARBURETOR
4TW-13565-00-00
Unavailable
17
BOLT,SOCKET
91317-06025-00
Unavailable
18
BOLT,SOCKET HEAD
91314-06020-00
Unavailable
19
CLAMP,HOSE
90460-52210-00
Unavailable
20
BOX COMP.
4TW-2160A-11-00
Unavailable
21
GROMMET (420)
90480-14153-00
Unavailable
22
BOX COMP.
4TW-21240-10-00
Unavailable
23
GROMMET (3AB)
90480-25482-00
Unavailable
