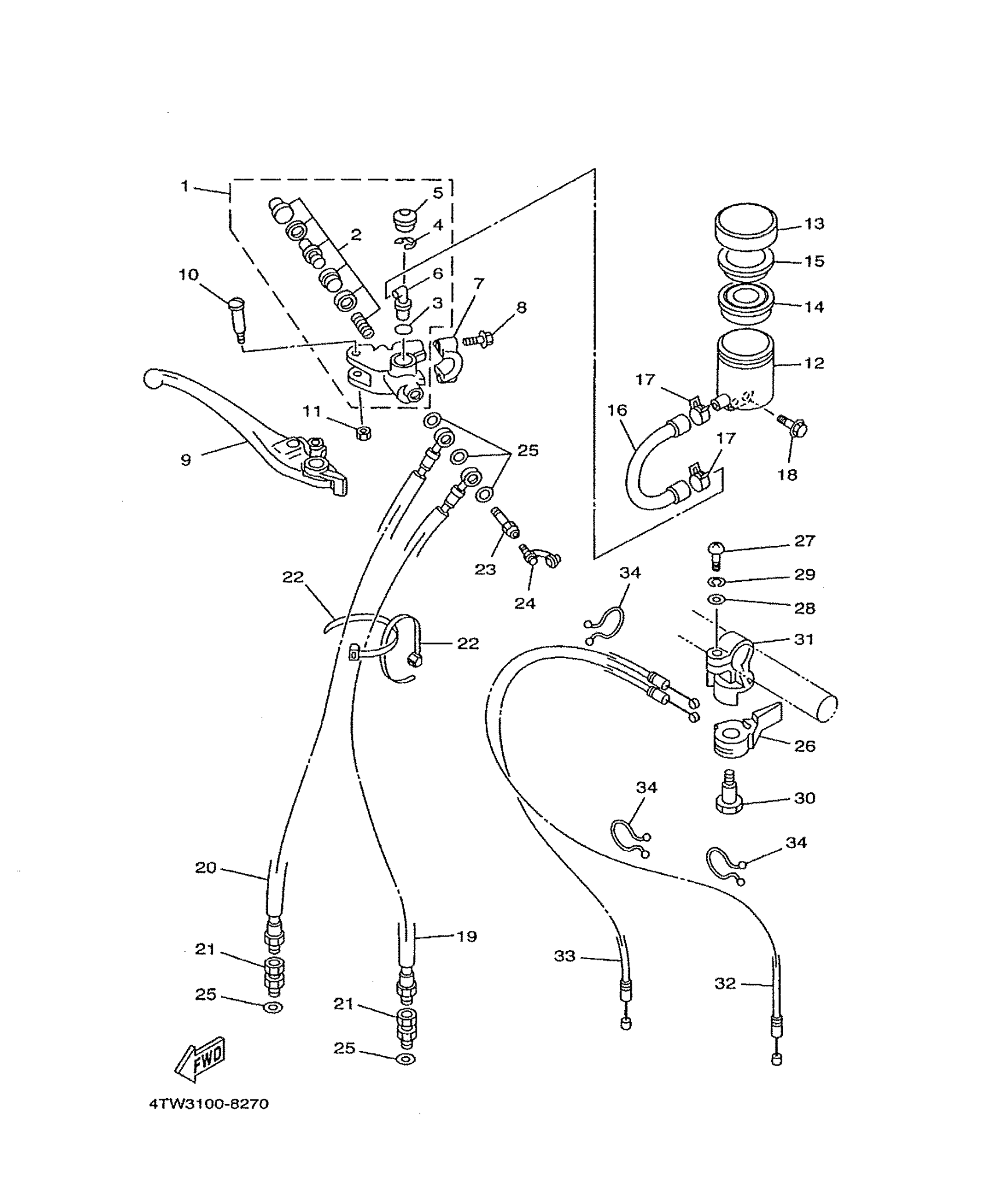

Yamaha TZ250L1 (TZ250) 4TW4 1999 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

3FV-W2587-00-00

Unavailable

2

CYLINDER KIT, MASTER

4K0-W0041-50-00

Unavailable

3

O-RING (22U)

93210-15566-00

$7.49

4

CIRCLIP

2VN-25866-00-00

$6.99

5

COVER, DUST

3FV-2589A-00-00

$20.99

6

JOINT

2VN-2582A-50-00

$20.99

7

BRACKET, MASTER CYLINDER

56A-25867-00-00

$28.99

8

BOLT, SMALL FLANGE

95027-06025-00

$4.16

9

LEVER 2

4JT-83922-00-00

Unavailable

10

BOLT, LEVER

3FV-2589F-00-00

$16.49

11

NUT, SELF-LOCKING

95617-06100-00

$8.49

12

TANK, RESERVOIR

3FV-25894-00-00

$60.99

13

CAP, RESERVOIR

3GM-25852-50-00

$29.99

14

DIAPHRAGM, RESERVOIR

3FV-25854-00-00

$27.99

15

BUSHING, DIAPHRAGM

2J2-25855-50-00

$5.49

16

HOSE

3YL-2582F-00-00

Unavailable

17

CLIP, PIPE 1

3PA-24356-00-00

Unavailable

18

BOLT, FLANGE(4DU)

95027-06014-00

Unavailable

19

HOSE, BRAKE 1

4DP-25872-01-00

Unavailable

20

HOSE, BRAKE 2

4TW-25873-01-00

Unavailable

21

JOINT

3LC-25885-00-00

Unavailable

22

CLAMP(MF1)

90464-15152-00

Unavailable

23

BOLT, UNION

90401-10174-00

Unavailable

24

BLEED SCREW KIT

36Y-W0048-00-00

Unavailable

25

WASHER, PLATE(481)

90201-10118-00

Unavailable

26

LEVER, STARTER

240-83941-00-00

Unavailable

27

SCREW, PAN HEAD(3GW)

98507-06018-00

Unavailable

28

WASHER PLATE 122222440000

90201-12175-00

Unavailable

29

WASHER, SPRING

92907-06100-00

Unavailable

30

BOLT

90109-08398-00

Unavailable

31

HOLDER, STARTER LEVER

240-83946-00-00

Unavailable

32

CABLE, STARTER 1

4DP-26331-00-00

Unavailable

33

CABLE, STARTER 2

4DP-26334-01-00

Unavailable

34

CLAMP

90464-25267-00

Unavailable
