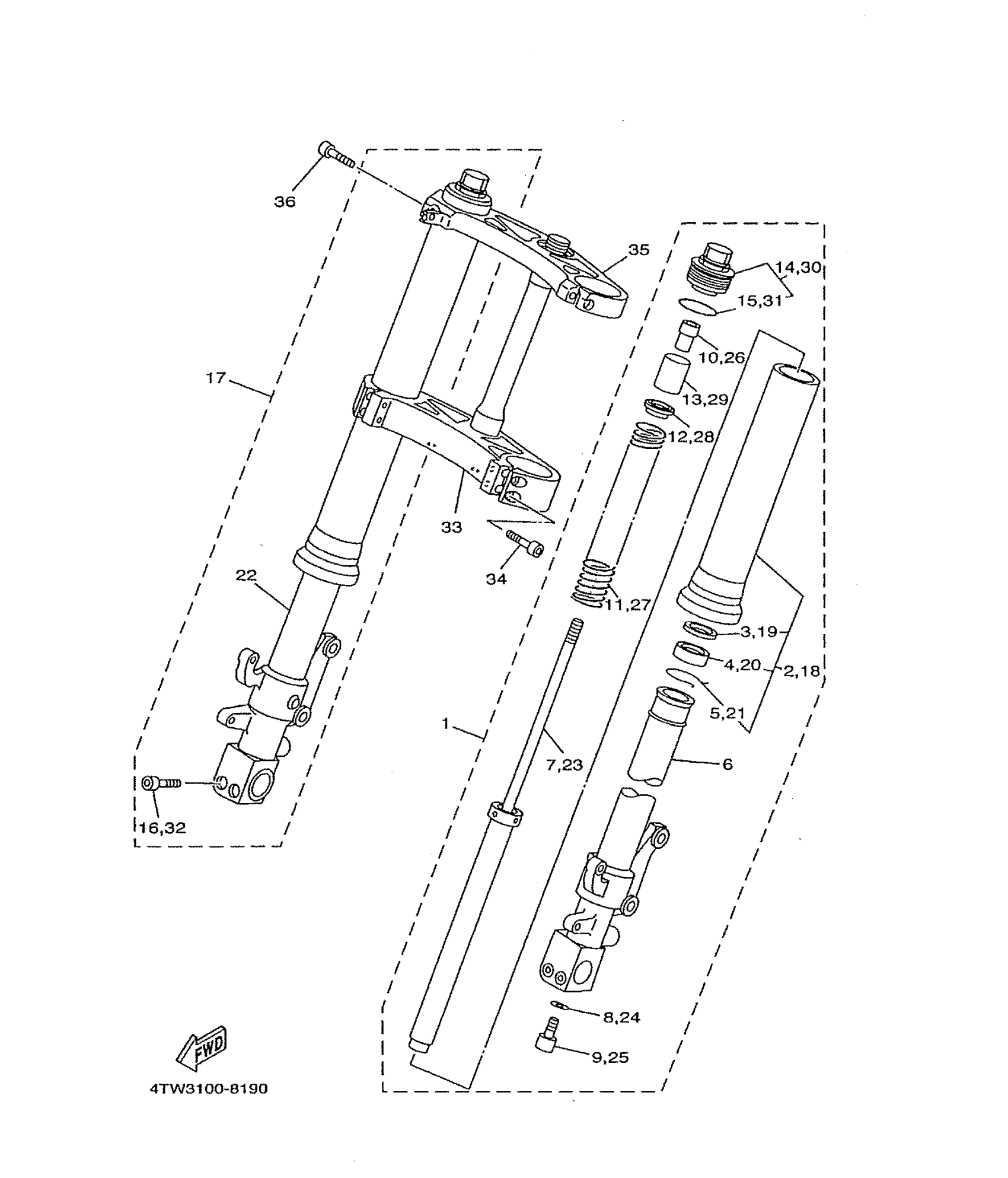

Yamaha TZ250L1 (TZ250) 4TW4 1999 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY (L.H)

4TW-23102-21-00

Unavailable

2

. TUBE, OUTER (RIGHT)

4TW-23136-21-00

Unavailable

3

WASHER, OIL SEAL

36Y-23146-10-00

$27.99

4

OIL SEAL

4EB-23145-01-00

$28.99

5

CLIP, OIL SEAL

26H-23156-00-00

$7.99

6

. INNER TUBE COMP 1

4TW-23110-10-00

Unavailable

7

. CYLINDER COMP, FRONT FORK

4TW-23170-21-00

Unavailable

8

GASKET

2K8-23158-L0-00

$15.49

9

BOLT, HEXAGON SOCKET HEAD

3LC-23181-00-00

$28.99

10

. NUT

4TW-23357-10-00

Unavailable

11

SPRING, FRONT FORK

3YL-23141-00-00

Unavailable

12

. SEAT, SPRING UPPER

4TW-23142-10-00

Unavailable

13

. SPACER

4TW-23118-10-00

Unavailable

14

. BOLT, CAP

4TW-23111-10-00

Unavailable

15

O-RING

3SP-23147-M0-00

$5.49

16

BOLT, SOCKET

91314-06040-00

Unavailable

17

FRONT FORK ASSEMBLY (R.H)

4TW-23103-21-00

Unavailable

18

. TUBE, OUTER (RIGHT)

4TW-23136-21-00

Unavailable

19

WASHER, OIL SEAL

36Y-23146-10-00

$27.99

20

OIL SEAL

4EB-23145-01-00

$28.99

21

CLIP, OIL SEAL

26H-23156-00-00

$7.99

22

. INNER TUBE COMP 2

4TW-23120-10-00

Unavailable

23

. CYLINDER COMP, FRONT FORK

4TW-23170-21-00

Unavailable

24

GASKET

2K8-23158-L0-00

$15.49

25

BOLT, HEXAGON SOCKET HEAD

3LC-23181-00-00

$28.99

26

. NUT

4TW-23357-10-00

Unavailable

27

SPRING, FRONT FORK

3YL-23141-00-00

Unavailable

28

. SEAT, SPRING UPPER

4TW-23142-10-00

Unavailable

29

. SPACER

4TW-23118-10-00

Unavailable

30

. BOLT, CAP

4TW-23111-10-00

Unavailable

31

O-RING

3SP-23147-M0-00

$5.49

32

BOLT, SOCKET

91314-06040-00

Unavailable

33

UNDER BRACKET COMP.

4TW-23340-21-00

Unavailable

34

BOLT, SOCKET

91314-08035-00

Unavailable

35

CROWN, HANDLE

4TW-23435-01-00

Unavailable

36

BOLT, SOCKET

91317-08035-00

Unavailable
