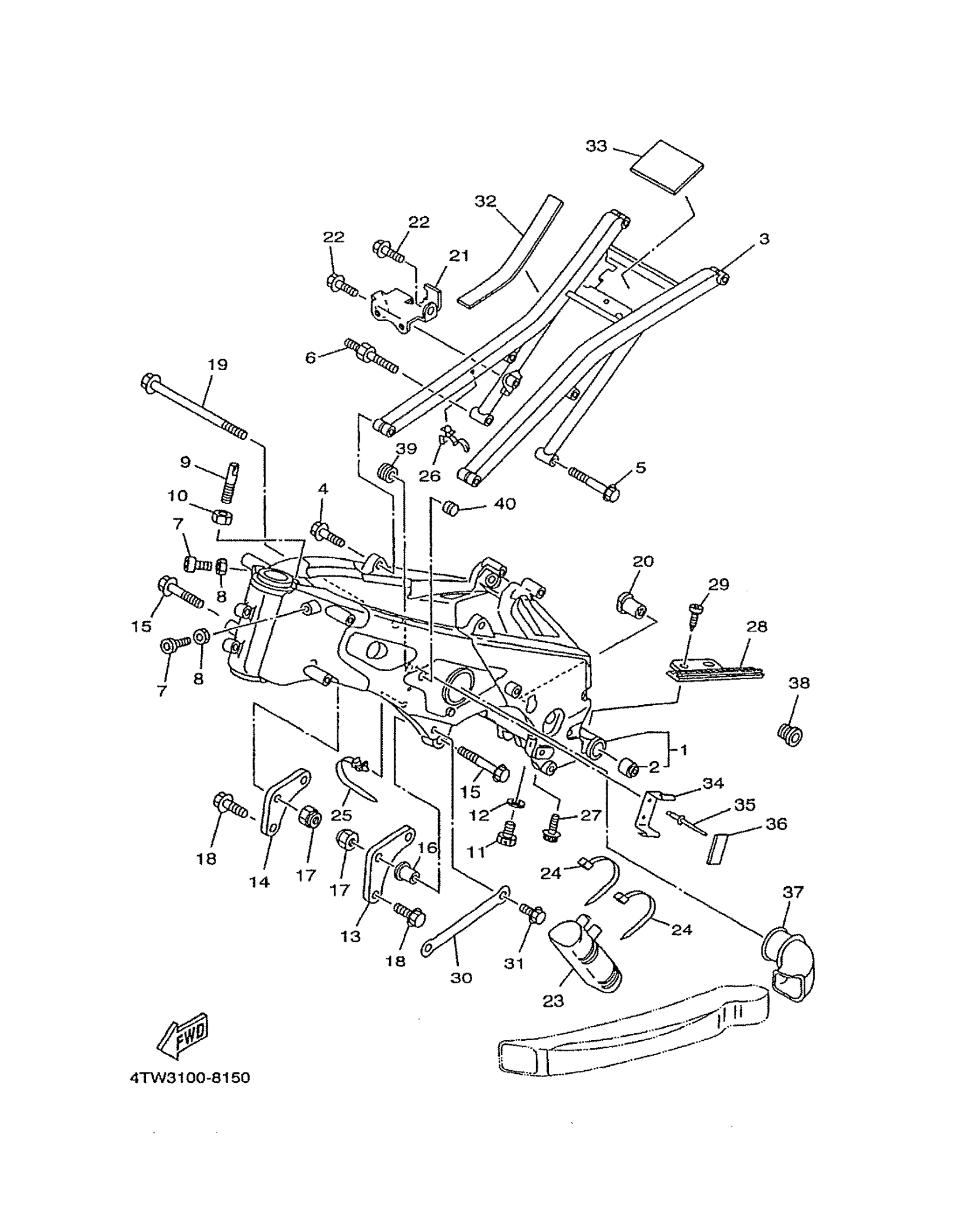

Yamaha TZ250L1 (TZ250) 4TW4 1999 FRAME Diagram
#
1
FRAME COMP.
4TW-21110-10-00
Unavailable
3
REAR FRAME COMP.
4TW-21190-02-00
Unavailable
6
BOLT
4TW-2171V-00-00
Unavailable
7
BOLT,SOCKET
91317-06020-00
Unavailable
9
BOLT, TANK FITTING
4TW-2134T-00-00
Unavailable
11
PLUG, WATER CHECK (383)
90338-06041-00
Unavailable
13
BRACKET, ENGINE 1
4DP-21411-00-00
Unavailable
14
BRACKET, ENGINE 2
4DP-21419-00-00
Unavailable
16
COLLAR
90387-105U6-00
Unavailable
17
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
18
BOLT, SMALL FLANGE
95027-08020-00
Unavailable
19
BOLT, WASHER BASED
90105-10227-00
Unavailable
20
NUT
90179-10682-00
Unavailable
21
BRACKET
4TW-2134V-00-00
Unavailable
22
BOLT, FLANGE(4MY)
95027-06012-00
Unavailable
23
TANK, OIL
3YL-21751-00-00
Unavailable
24
CLAMP(MF1)
90464-15152-00
Unavailable
25
CLAMP(2TV)
90464-10112-00
Unavailable
26
CLAMP(4TR)
90464-18246-00
Unavailable
27
BOLT(3AK)
90109-067E6-00
Unavailable
28
SEAL, GUARD
4TW-22151-00-00
Unavailable
29
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
30
STAY
4TW-2117A-01-00
Unavailable
31
BOLT, FLANGE(4MY)
95027-06012-00
Unavailable
32
DAMPER
4A0-83541-00-00
Unavailable
33
DAMPER
4TW-21747-00-00
Unavailable
34
HOOK
4TW-2139V-00-00
Unavailable
35
RIVET, BLIND (15A)
90267-32071-00
Unavailable
36
DAMPER
22F-2139X-00-00
Unavailable
37
PIPE, INLET
4DP-2135H-00-00
Unavailable
38
BOLT, ENGINE ADJUSTING
4DP-21495-00-00
Unavailable
39
GROMMET (4L0)
90480-18276-00
Unavailable
40
GROMMET (420)
90480-14153-00
Unavailable
