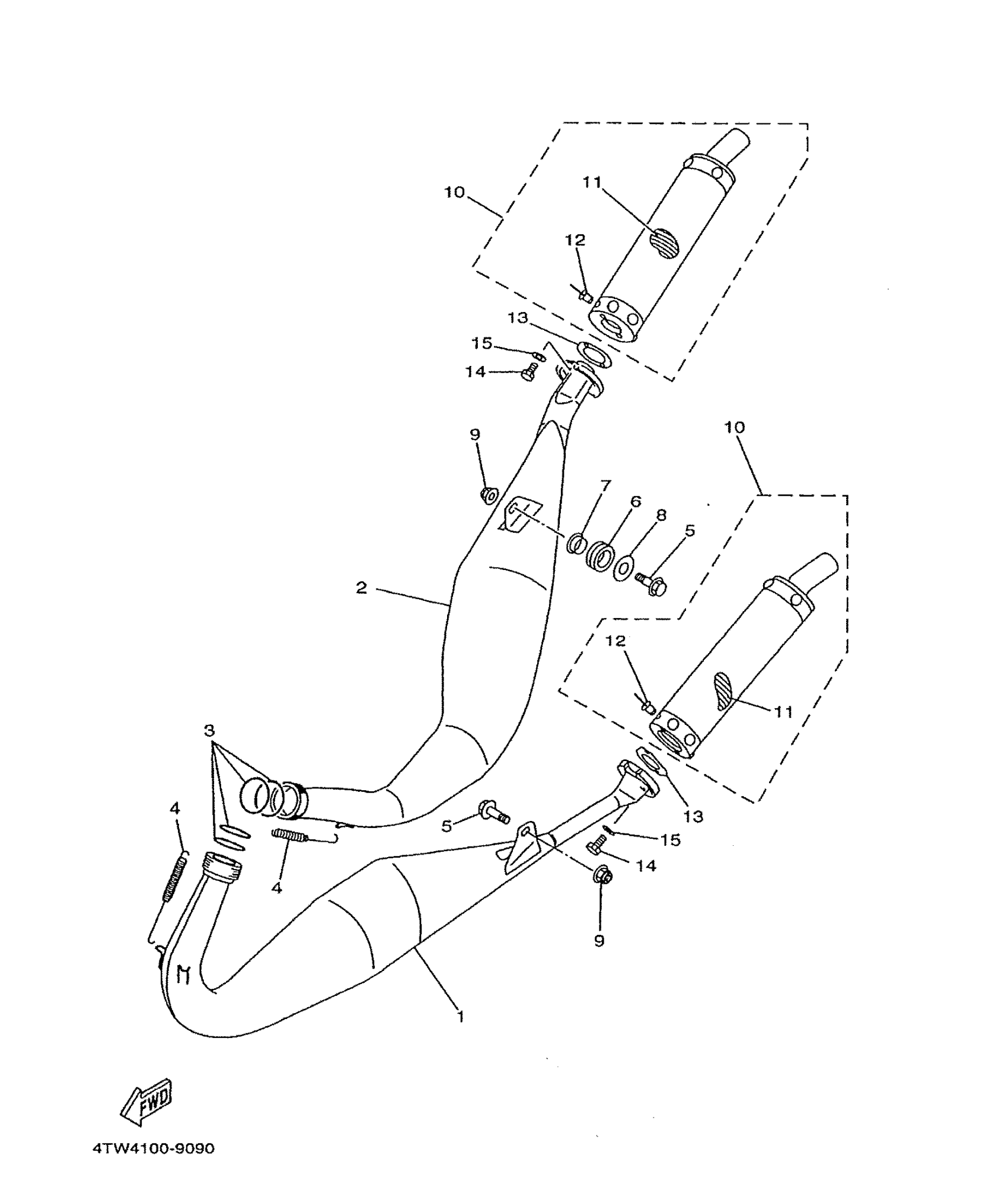

Yamaha TZ250L1 (TZ250) 4TW4 1999 EXHAUST Diagram

EXHAUST PIPE ASSEMBLY 1

4TW-14610-50-00

Unavailable

EXHAUST PIPE ASSEMBLY 2

4TW-14620-50-00

Unavailable

O-RING(1LX)

93210-42728-00

$16.99

SPRING, TENSION (5F6)

90507-20035-00

$5.60

BOLT, SMALL FLANGE

95027-08030-00

$3.76

GROMMET(7Y6)

90480-20389-00

$14.99

COLLAR(4BH)

90387-084Y3-00

$5.60

WASHER 6464313202

90202-08022-00

$4.14

NUT, SELF-LOCKING(3BN)

90185-08146-00

$9.49

SILENCER, EXHAUST

4JT-14753-20-00

Unavailable

FIBER

4JT-1469A-00-00

$38.99

RIVET, BLIND(3LC)

90267-48147-00

Unavailable

GASKET, SILENCER

4DP-14755-00-00

Unavailable

BOLT, HEXAGON

97017-06020-00

$4.06

WASHER(6TA)

92907-06600-00

$2.72
