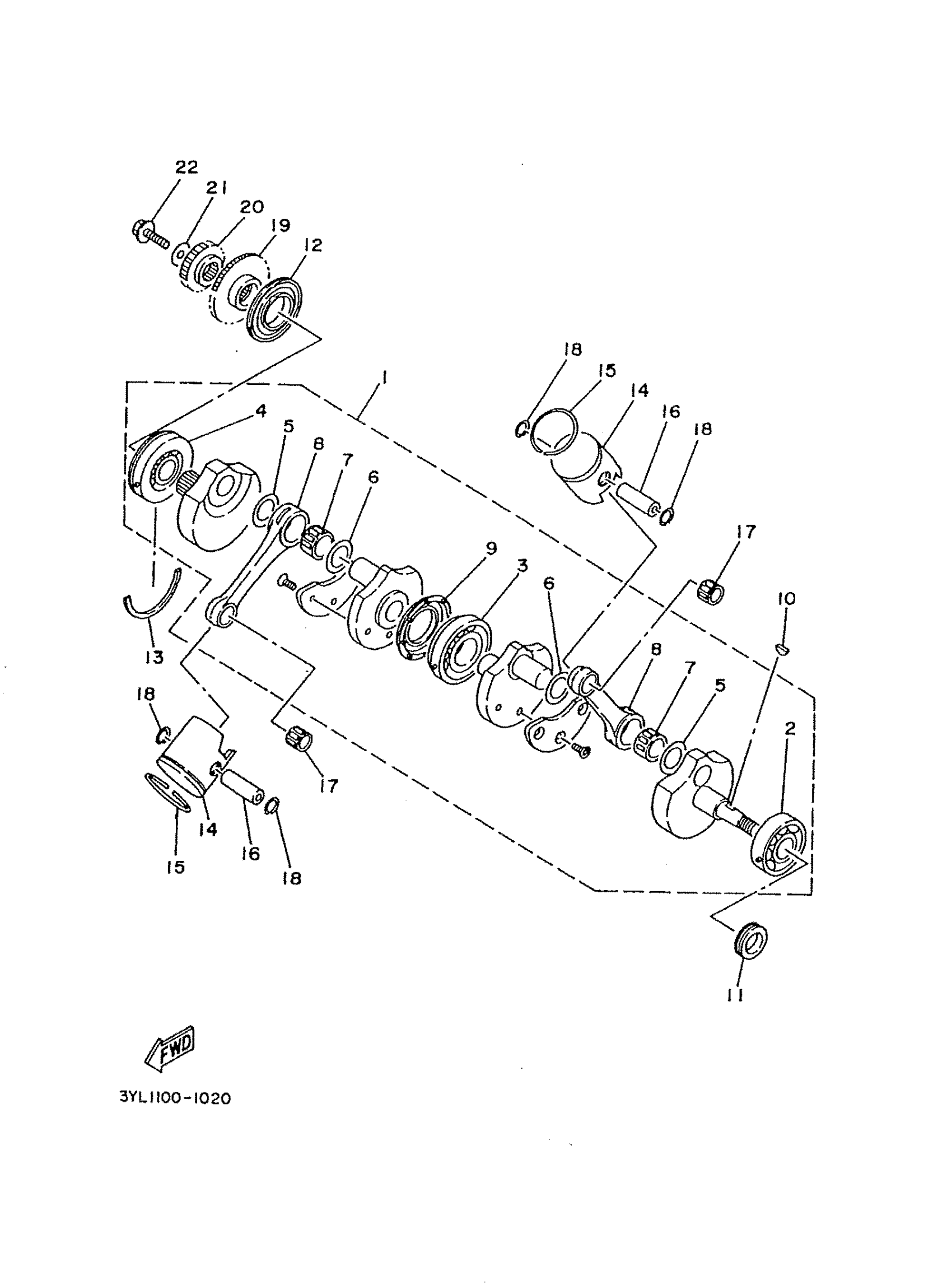

Yamaha TZ250L1 (TZ250) 4TW4 1999 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

4DP-11400-03-00

Unavailable

2

BEARING

93306-30571-00

$72.99

3

. BEARING

93306-30632-00

Unavailable

4

BEARING(3YL)

93306-30563-00

Unavailable

5

WASHER(4DP)

90209-24327-00

$44.99

6

WASHER(3YL)

90209-24315-00

$58.99

7

BEARING

93310-52403-00

$129.99

8

. ROD, CONNECTING

3XV-11651-20-00

Unavailable

9

OIL SEAL(3YL)

93101-44160-00

Unavailable

10

KEY, WOODRUFF(3MA)

90280-04051-00

Unavailable

11

OIL SEAL(3MA)

93102-25438-00

$22.99

12

OIL SEAL(3YL)

93103-35173-00

Unavailable

13

CIRCLIP (1J7)

93440-72049-00

Unavailable

14

PISTON (STD)

4DP-11631-02-A0

Unavailable

14

PISTON (STD)

4DP-11631-02-B0

Unavailable

14

PISTON (STD)

4DP-11631-02-C0

Unavailable

14

PISTON (STD)

4DP-11631-02-D0

Unavailable

15

RING, PISTON

1RK-11611-01-00

Unavailable

16

PIN, PISTON

137-11633-10-00

Unavailable

17

BEARING, CYLINDRICAL(4DP)

93310-316D5-00

Unavailable

18

CIRCLIP(1AR)

93450-17129-00

Unavailable

19

GEAR, DRIVE

3YL-11536-01-00

Unavailable

20

GEAR, PRIMARY DRIVE

3YL-16111-00-00

Unavailable

21

WASHER, PLATE

90201-10144-00

Unavailable

22

BOLT, WASHER BASED(1TX)

90105-10445-00

Unavailable
