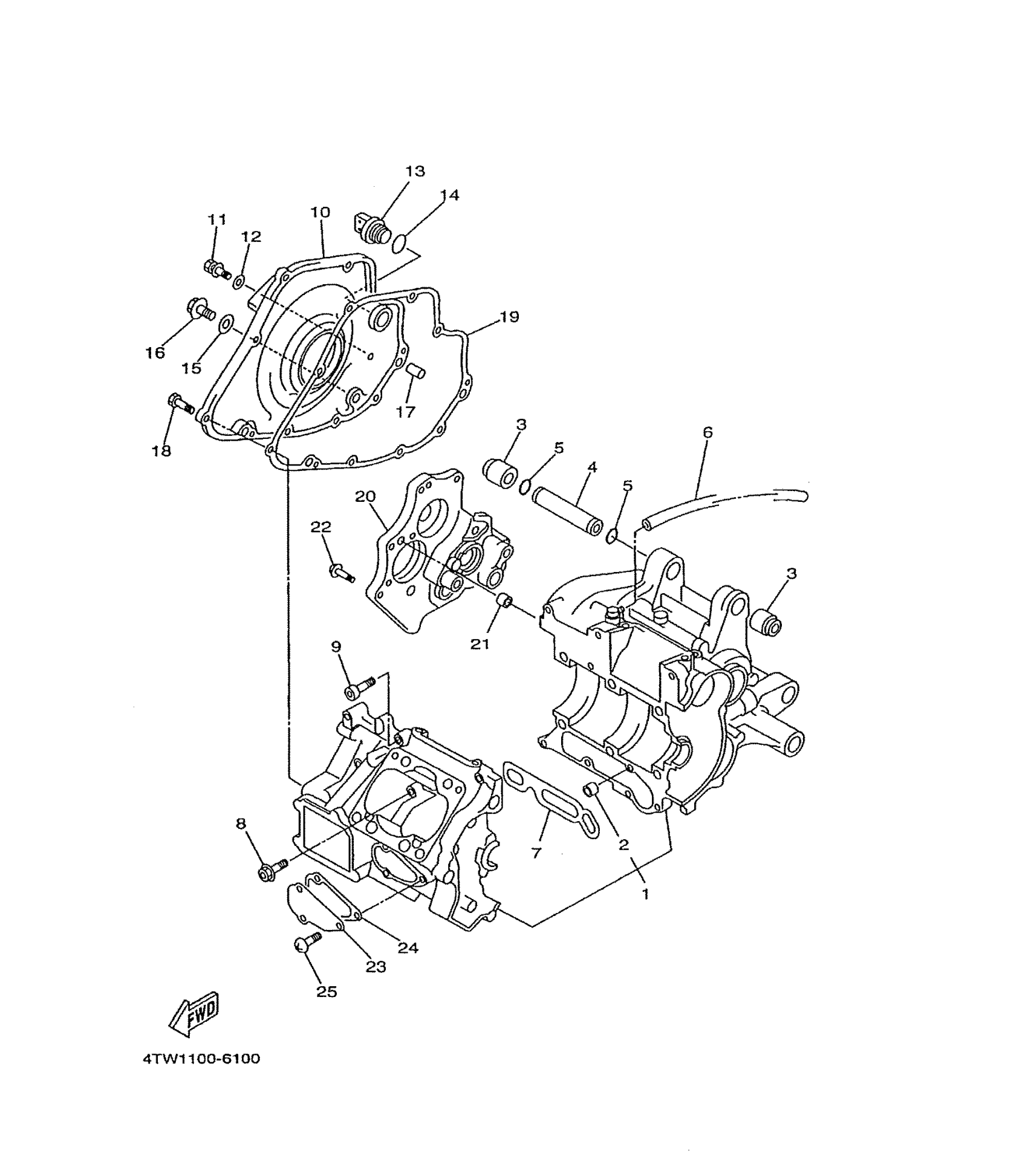

Yamaha TZ250L1 (TZ250) 4TW4 1999 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

3YL-15100-02-00

Unavailable

2

PIN, DOWEL(3VD)

99530-10114-00

$2.55

3

DAMPER, ENGINE MOUNT 2

3YL-15326-00-00

Unavailable

4

SPACER, ENGINE MOUNT

3YL-15327-01-00

Unavailable

5

O-RING

93210-15680-00

Unavailable

6

HOSE (L770)

90445-090G9-00

$33.99

7

PLATE

3XV-15113-00-00

Unavailable

8

BOLT(3TC)

90109-084F1-00

Unavailable

9

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

10

COVER, CRANKCASE 2

3YL-15421-00-00

Unavailable

11

PLUG, WATER CHECK (383)

90338-06041-00

Unavailable

12

GASKET (4V2)

90430-06166-00

$3.76

13

PLUG, OIL

4A0-15363-00-00

Unavailable

14

O-RING

93210-21190-00

$7.49

15

GASKET(2GH)

90430-12202-00

$9.49

16

PLUG, STRAIGHT SCREW

90340-12144-00

Unavailable

17

PIN, DOWEL

99530-08012-00

Unavailable

18

BOLT,SOCKET

91317-06020-00

Unavailable

19

GASKET, CRANKCASE COVER 2

3YL-15461-01-00

Unavailable

20

CRANKCASE 3

4DP-15131-01-00

Unavailable

21

PIN, DOWEL(3VD)

99530-10114-00

$2.55

22

BOLT(3YL)

90109-065F8-00

Unavailable

23

COVER, CRANKCASE 3

3XV-15431-00-00

Unavailable

24

GASKET, CRANKCASE COVER 3

3XV-15462-00-00

Unavailable

25

BOLT, BUTTON HEAD

92017-06014-00

Unavailable
