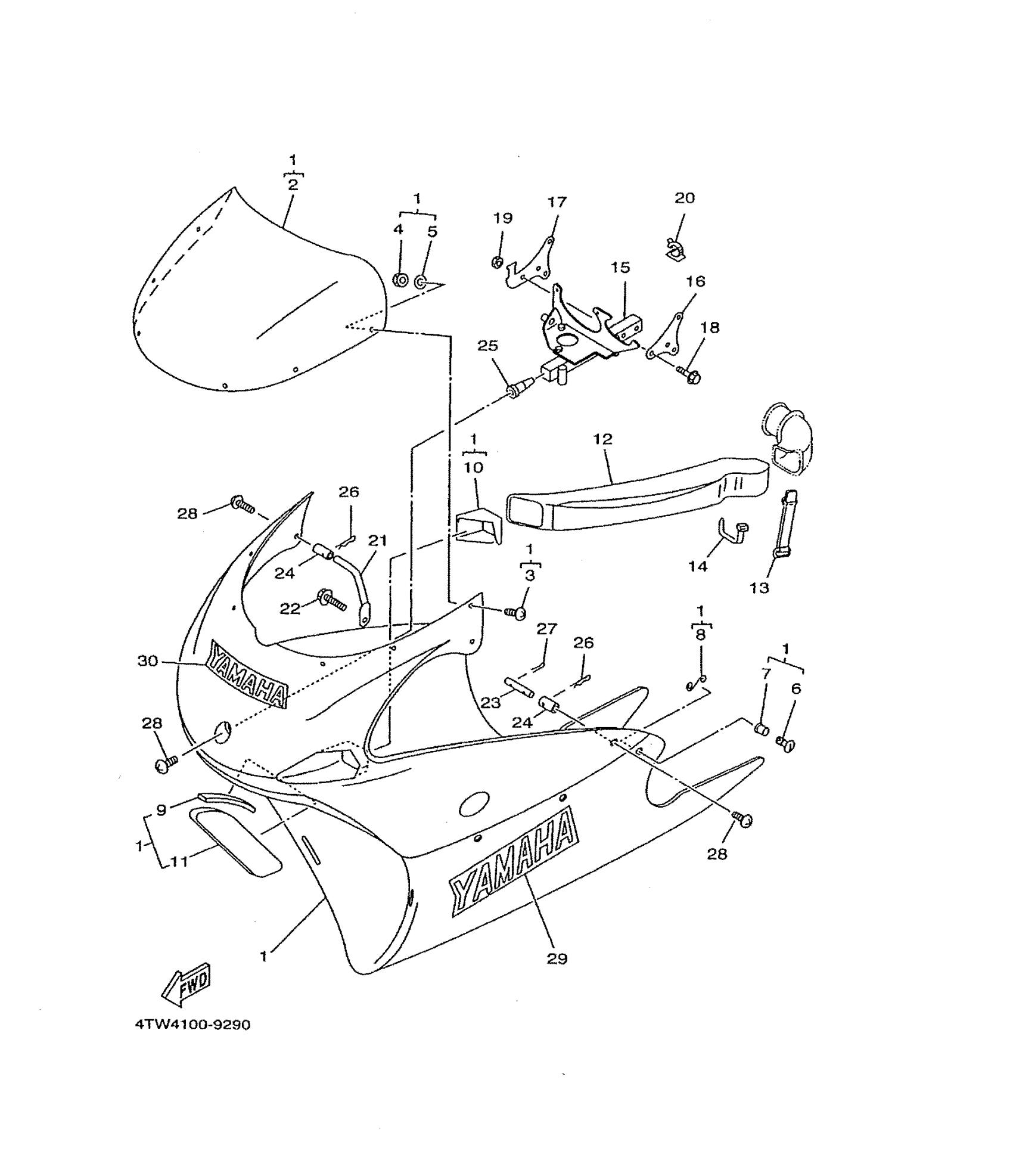

Yamaha TZ250L1 (TZ250) 4TW4 1999 COWLING 1 Diagram
#
Description
Price
1
COWLING ASSEMBLY
4TW-28350-11-00
Unavailable
2
. WINDSHIELD
4TW-28381-10-00
Unavailable
5
WASHER(6E1)
92907-04200-00
Unavailable
9
DAMPER 1
2TV-21638-00-00
Unavailable
10
. DAMPER
4TW-28371-00-00
Unavailable
11
. DAMPER
4TW-28371-10-00
Unavailable
12
DUCT 1
4TW-2838N-10-00
Unavailable
14
CLAMP
90465-10098-00
Unavailable
15
STAY 1
4JT-28356-00-00
Unavailable
16
BRACKET 1
4DP-2836A-00-00
Unavailable
17
BRACKET 2
4TW-2836E-00-00
Unavailable
18
BOLT, SMALL FLANGE
95027-06030-00
Unavailable
19
NUT, SELF-LOCKING
95617-06100-00
Unavailable
20
CLAMP(3YL)
90464-25160-00
Unavailable
21
STAY 1
4JT-28321-00-00
Unavailable
22
BOLT, FLANGE(4DU)
95027-06014-00
Unavailable
23
STAY 3
3YL-28358-00-00
Unavailable
24
NUT
4A0-28364-00-00
Unavailable
25
NUT
4DP-28362-01-00
Unavailable
26
CLIP, COWLING
4DP-28334-01-00
Unavailable
27
PIN, COTTER(6L5)
91490-25030-00
Unavailable
28
SCREW, ROUND HEAD(55K)
90150-06021-00
Unavailable
29
EMBLEM, YAMAHA
99247-00280-00
Unavailable
30
EMBLEM, YAMAHA
99247-00100-00
Unavailable
