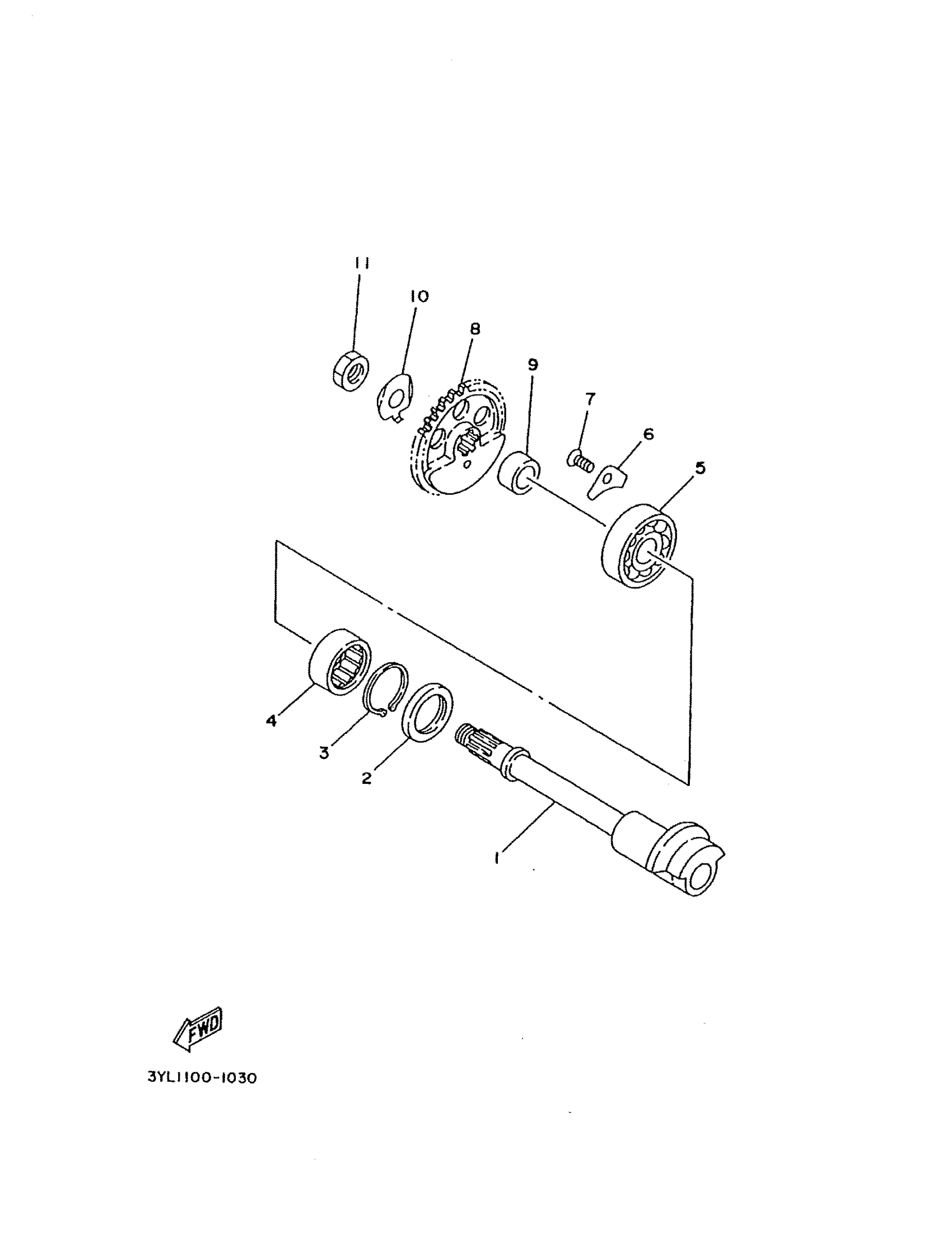

Yamaha TZ250L1 (TZ250) 4TW4 1999 COUNTER SHAFT Diagram

#

Description
Price

1

SHAFT 1

3YL-11455-01-00

Unavailable

2

OIL SEAL(JA8)

93102-25404-00

Unavailable

3

CIRCLIP(2JN)

93420-37074-00

$2.53

4

BEARING, CYLINDRICAL(3YL)

93311-62574-00

$51.12

5

BEARING(3YL)

93306-30316-00

Unavailable

6

PLATE, BEARING COVER

4XM-15383-00-00

$10.29

7

SCREW, FLAT HEAD(4EM)

98707-06016-00

$6.22

8

GEAR, BALANCE WT

3YL-11531-00-00

Unavailable

9

COLLAR(3DL)

90387-172K2-00

$18.24

10

WASHER, LOCK (2K6)

90215-14204-00

$6.46

11

NUT, HEXAGON

90170-14171-00

$6.76
