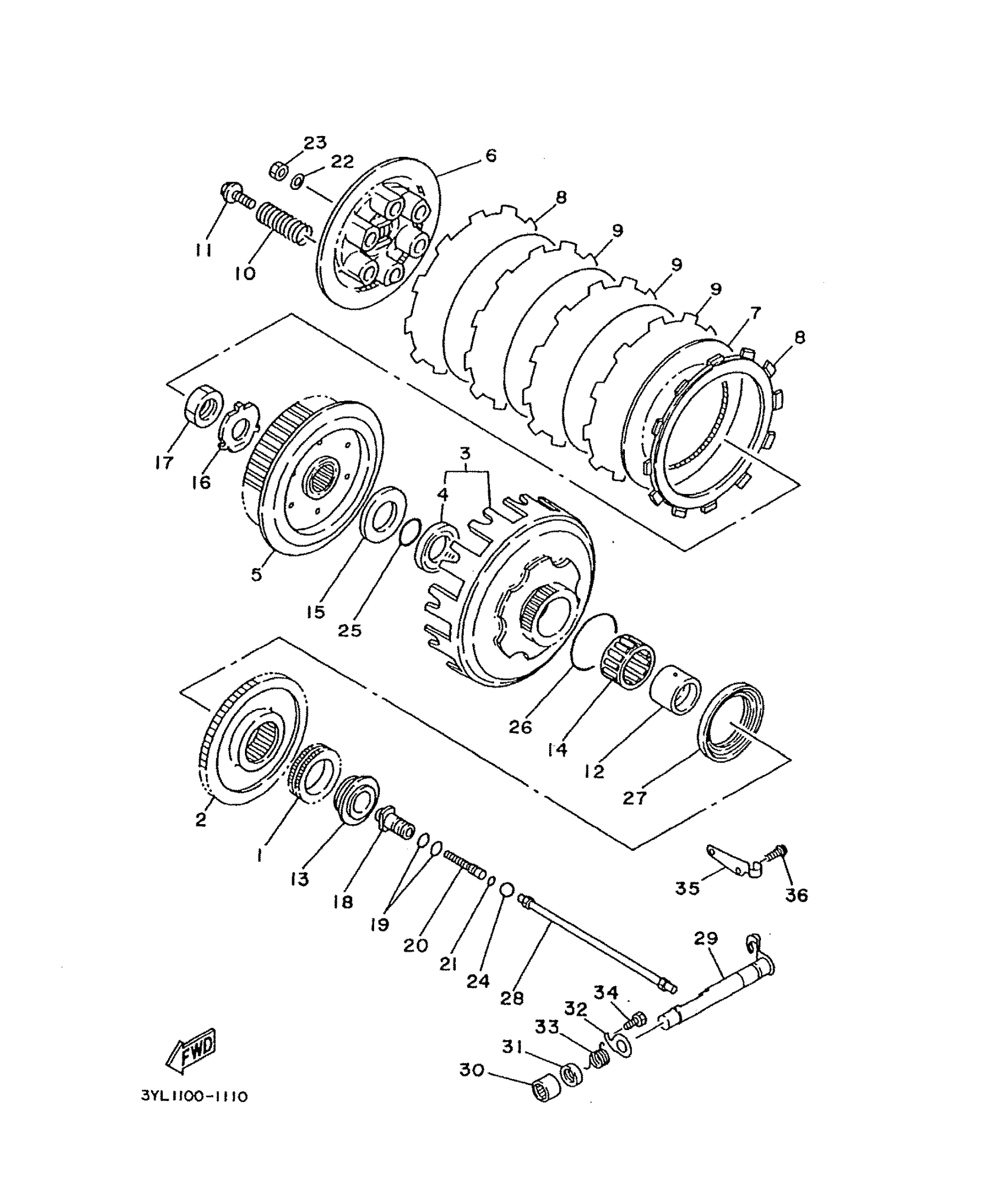

Yamaha TZ250L1 (TZ250) 4TW4 1999 CLUTCH Diagram
#
1
GEAR, PUMP DRIVE
4DP-13324-00-00
Unavailable
2
GEAR, PRIMARY DRIVEN
4DP-16151-01-00
Unavailable
3
CLUTCH HOUSING ASS
5F7-16310-02-00
Unavailable
5
BOSS, CLUTCH
26J-16371-01-00
Unavailable
7
PLATE, CLUTCH 1
168-16324-10-00
Unavailable
10
SPRING COMPRESSION168163330000
90501-23138-00
Unavailable
12
SPACER 1
5F7-16181-00-00
Unavailable
13
PLATE, THRUST 1
3YL-16154-00-00
Unavailable
14
BEARING (5F7
93310-332J5-00
Unavailable
15
WASHER, THRUST
5F7-16153-00-00
Unavailable
16
WASHER, LOCK (26J)
90215-20212-00
Unavailable
17
NUT (3R4)
90170-20255-00
Unavailable
18
ROD, PUSH 1
59W-16356-00-00
Unavailable
19
O-RING (1J7)
93210-09350-00
Unavailable
20
SCREW, ADJUSTING
5F7-16343-00-00
Unavailable
21
O-RING (4A0)
93210-04279-00
Unavailable
22
WASHER(6TA)
92907-06200-00
Unavailable
23
NUT(6TA)
95317-06600-00
Unavailable
24
BALL (1M1)
93515-32029-00
Unavailable
25
O-RING
93210-22298-00
Unavailable
26
O-RING (5F7)
93210-42482-00
Unavailable
27
OIL SEAL (4A0)
93101-56095-00
Unavailable
28
ROD, PUSH 2
4DP-16357-00-00
Unavailable
29
PUSH LEVER COMP.
3XV-16381-00-00
Unavailable
30
BRG,CYL-CAL ROLLER 6G TM
93315-11206-00
Unavailable
31
OIL SEAL (4G0)
93102-12224-00
Unavailable
32
PLATE, SEAT
3XV-16384-00-00
Unavailable
33
SPRING, TORSION
90508-121A2-00
Unavailable
34
BOLT, SOCKET
91317-05010-00
Unavailable
35
HOLDER, CLUTCH CABLE
3YL-15441-00-00
Unavailable
36
BOLT, FLANGE(4MY)
95027-06012-00
Unavailable
