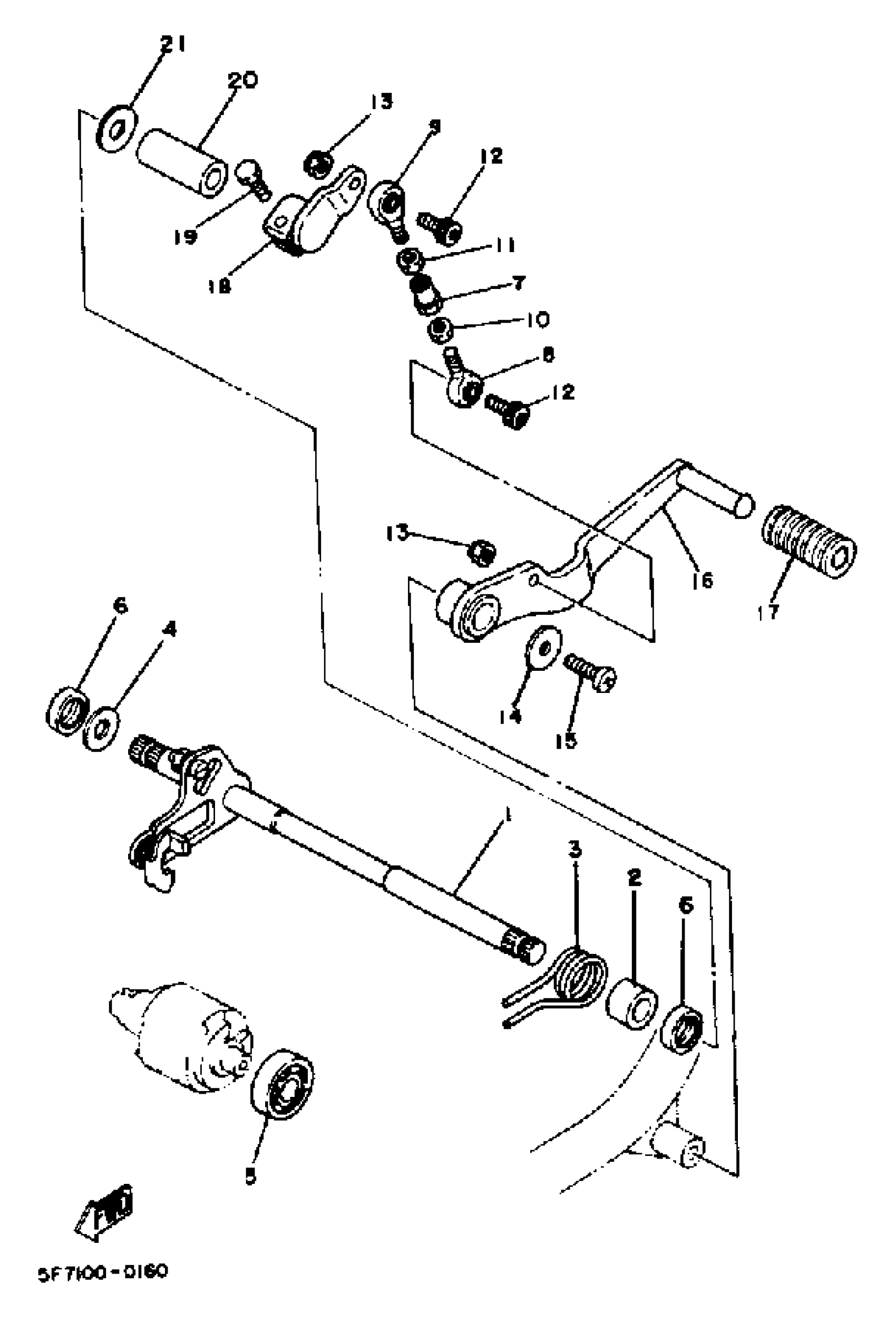

Yamaha TZ250J (TZ250) 1982 SHIFT SHAFT - PEDAL Diagram

#

Description
Price

1

SHIFT SHAFT ASSEMBLY.1

(26J-18101-00-00)

Unavailable

2

SPACER

90560-12171-00

Unavailable

3

SPRING, TORSION(3KX)

90508-320A6-00

$9.49

4

WASHER PLATE 164185720000

90201-12166-00

$9.49

5

BEARING(3WF)

93306-20119-00

$33.99

6

OIL SEAL (12X19X5-401)

93109-12012-00

$10.49

7

ROD, SHIFT

5F7-18115-00-00

Unavailable

8

JOINT, ROD 1

5F7-18116-00-00

Unavailable

9

JOINT, ROD 2

5F7-18117-00-00

Unavailable

10

NUT(650)

95380-06700-00

$8.49

11

NUT (2H9)

90170-06228-00

$9.49

12

BOLT, BUTTON

92017-06020-00

$3.76

13

NUT, SELF-LOCKING

95617-06100-00

$8.49

14

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

15

BOLT, BUTTON HEAD

92017-06014-00

$4.29

16

PEDAL, SHIFT

5F7-18111-00-00

Unavailable

17

COVER, CHANGE PEDAL

132-18113-01-00

Unavailable

18

ARM, SHIFT

5F7-18112-00-00

Unavailable

19

BOLT, HEXAGON

97017-06020-00

Unavailable

20

SPACER (5F7)

90560-12211-00

Unavailable

21

WASHER

90201-12588-00

Unavailable
