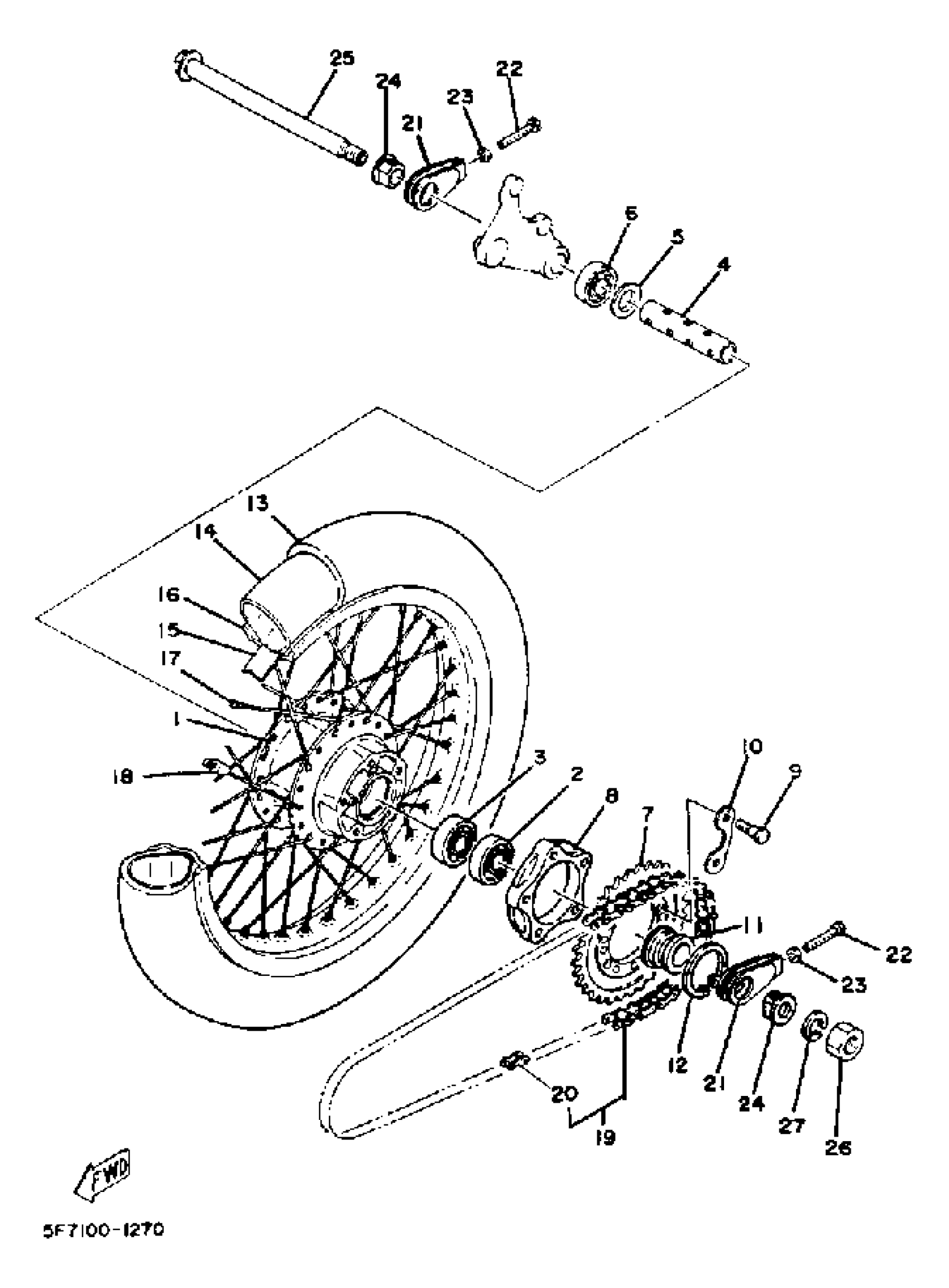

Yamaha TZ250J (TZ250) 1982 REAR WHEEL Diagram

#

Description

Price

1

HUB, REAR

(1H3-25311-02-98)

Unavailable

2

BEARING(3BC)

93306-30437-00

$66.99

3

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

$65.99

4

SPACER, BEARING

(1H3-25317-00-00)

Unavailable

5

FLANGE, SPACER

4V4-25315-00-00

Unavailable

6

BEARING (22K)

93306-20446-00

$41.99

7

SPROCKET, DRIVN 32T

240-25432-00-00

Unavailable

7

SPROCKET,DRIVN 34T

240-25434-00-00

Unavailable

7

SPROCKET,DRIVN 34T

240-25434-00-00

Unavailable

7

SPROCKET,DRIVN 34T

240-25434-00-00

Unavailable

7

SPROCKET, DRIVEN (38T)

4TW-25438-02-00

Unavailable

7

SPROCKET, DRIVN 42T

(240-25442-00-00)

Unavailable

7

SPROCKET, DRIVEN (36T)

4TW-25436-02-00

Unavailable

7

SPROCKET, DRIVEN (37T)

4TW-25437-02-00

Unavailable

7

SPROCKET, DRIVEN (39)

4TW-25439-02-00

Unavailable

7

SPROCKET, DRIVEN (40T)

4TW-25440-02-00

Unavailable

7

SPROCKET, DRIVEN 41

3YL-25441-00-00

Unavailable

8

FLANGE, SPACER 2

5F7-25316-00-00

Unavailable

9

BOLT (5F7)

90109-08618-00

Unavailable

10

WASHER, LOCK

143-25412-00-00

Unavailable

11

COLLAR, WHEEL

(5F7-25383-00-00)

Unavailable

12

CIRCLIP(26H)

99009-52500-00

Unavailable

16

RIM 3.00X18

(94430-18316-00)

Unavailable

17

SPOKE SET, REAR

(5F7-25304-00-00)

Unavailable

18

BALANCER, WHEEL

3HT-25398-00-00

Unavailable

19

CHAIN (D1D520TR98)

(94545-20098-00)

Unavailable

20

JOINT CHAIN

(94645-20031-00)

Unavailable

21

PULLER, CHAIN 1

3G2-25388-00-00

Unavailable

22

BOLT

90101-08060-00

Unavailable

23

. NUT

95380-08700-00

Unavailable

24

WASHER, WHEEL

(3G2-25384-00-00)

Unavailable

25

AXLE, WHEEL

(5F7-25381-00-00)

Unavailable

26

NUT, HEXAGON

90170-18165-00

Unavailable

27

WASHER(N15)

92907-18100-00

Unavailable
