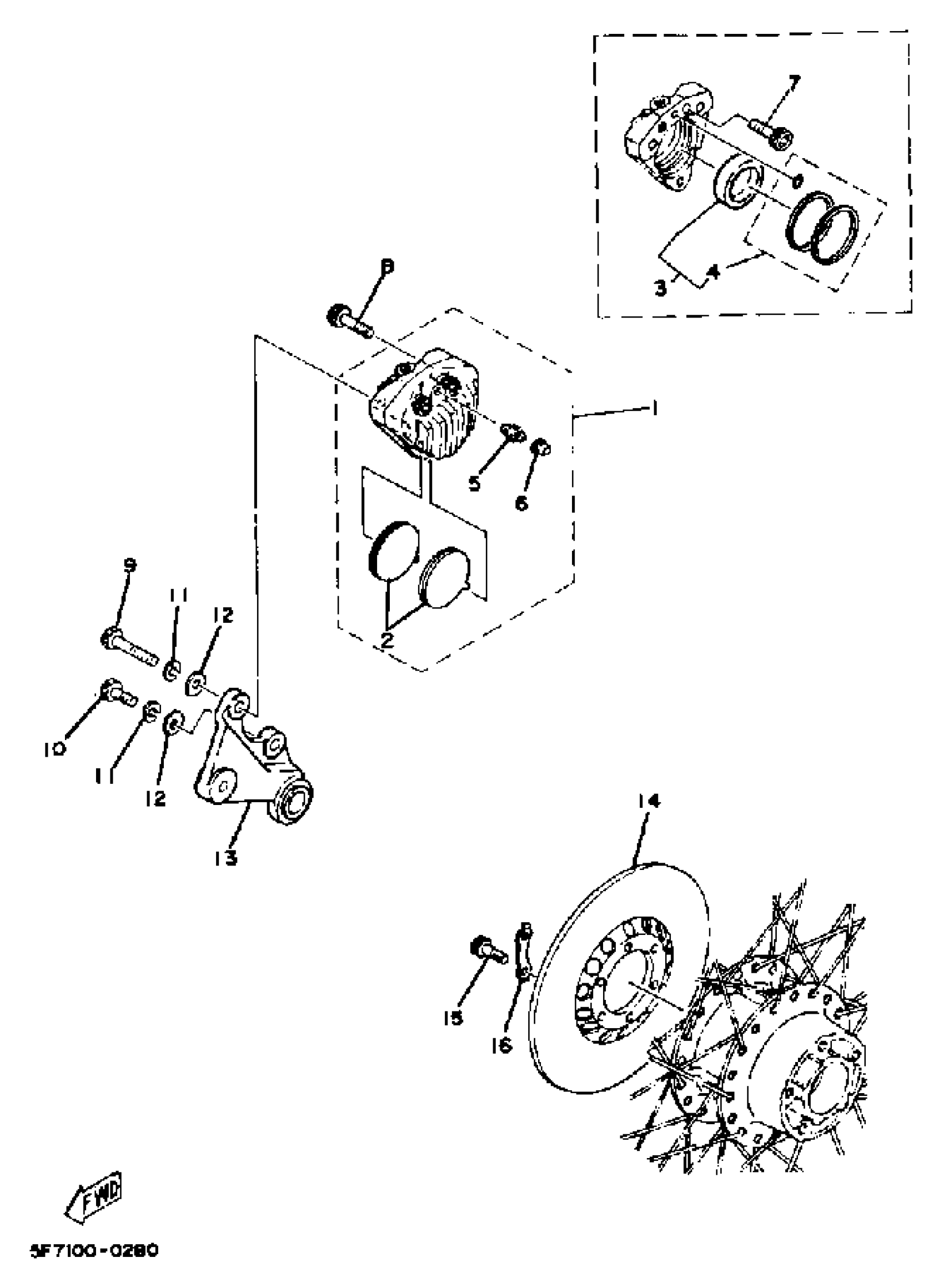

Yamaha TZ250J (TZ250) 1982 REAR BRAKE CALIPER Diagram

#

Description

Price

1

CALIPER ASSEMBLY

(5F7-25810-50-00)

Unavailable

2

BRAKE PAD KIT, REAR

(4A0-W0046-00-00)

Unavailable

3

PISTON ASSEMBLY, CALIPER

(1X2-W0057-00-00)

Unavailable

4

. CALIPER SEAL KIT

1X2-W0047-00-00

Unavailable

5

. SCREW, BLEED

306-25824-00-00

Unavailable

6

CAP

306-25825-01-00

$9.99

7

BOLT, SOCKET

91317-10030-00

$9.49

8

BOLT,SOCKET

91317-10040-00

$7.49

9

BOLT, HEAD W/HOLE

(90103-10022-00)

Unavailable

10

BOLT, HEAD W/HOLE

(90103-10021-00)

Unavailable

11

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

12

WASHER, PLATE

92990-10600-00

Unavailable

13

BRACKET, CALIPER

(3G2-25819-00-00)

Unavailable

14

DISC, BRAKE

(1H3-25831-00-00)

Unavailable

15

BOLT

90109-08432-00

Unavailable

16

WASHER, LOCK (447)

341-25412-00-00

Unavailable
