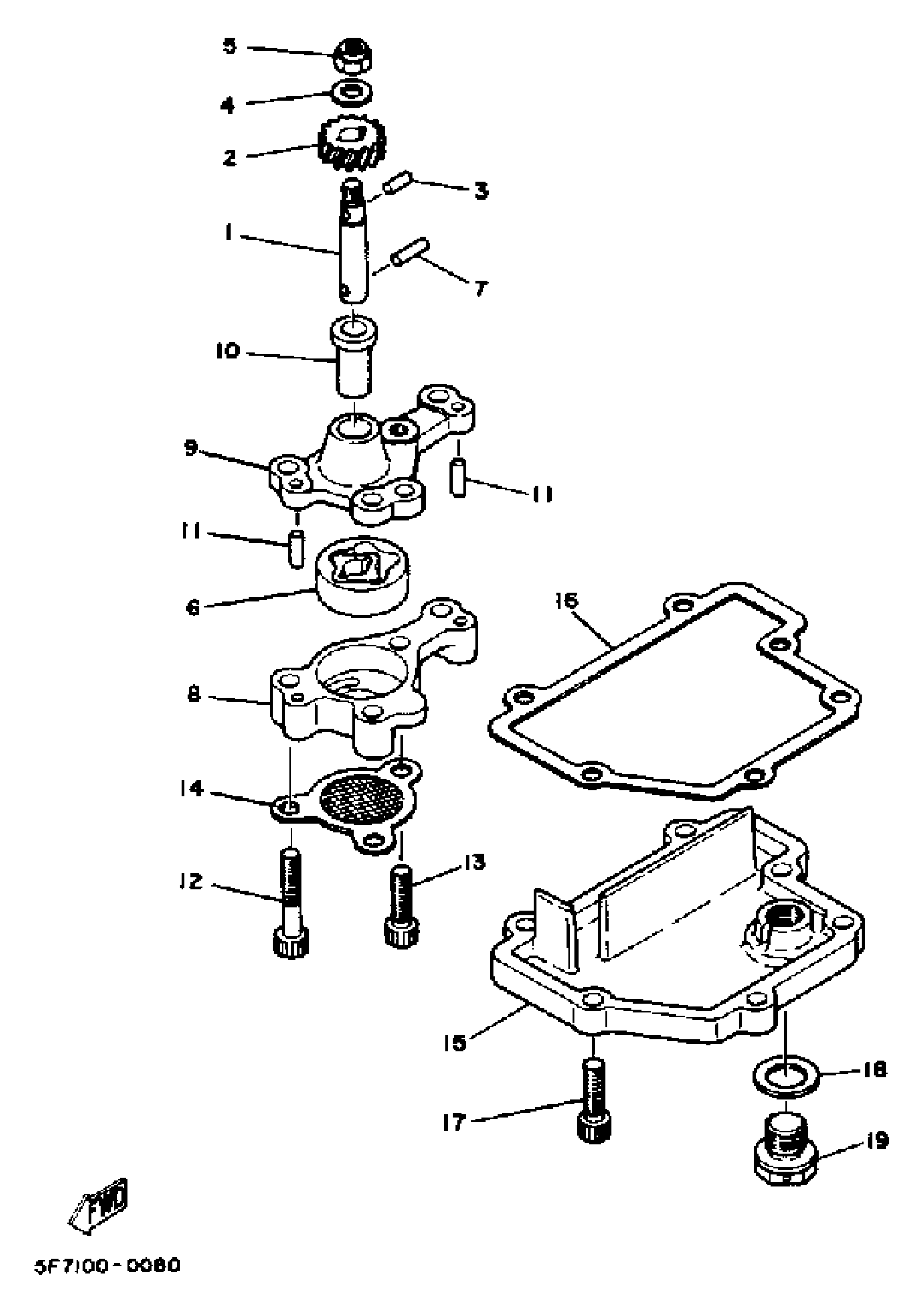

Yamaha TZ250J (TZ250) 1982 OIL PUMP Diagram

#

Description
Price

1

SHAFT, PUMP

(5F7-13314-00-00)

Unavailable

2

GEAR, PUMP DRIVEN

5F7-13325-00-00

Unavailable

3

PIN, DOWEL (341)

93603-09106-00

$2.28

4

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

5

NUT, SELF-LOCKING

95617-06100-00

$8.49

6

ROTOR ASSEMBLY 1

5F7-13310-00-00

Unavailable

7

PIN,DOWEL (603)

93603-12007-00

$2.55

8

HOUSING, ROTOR

5F7-13336-00-00

Unavailable

9

COVER, PUMP

5F7-13316-00-00

Unavailable

10

BUSH, SPEC''L NYLON

(90386-08105-00)

Unavailable

11

PIN, DOWEL (409)

93604-16092-00

$3.18

12

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

13

BOLT,SOCKET

91317-06020-00

Unavailable

14

STRAINER, OIL

5F7-13411-00-00

Unavailable

15

COVER, STRAINER

(26J-13417-00-00)

Unavailable

16

GASKET, STRAINER COVER

5F7-13414-01-00

Unavailable

17

BOLT,SOCKET

91317-06020-00

Unavailable

18

GASKET (3JD1)

90430-12207-00

Unavailable

19

BOLT

90109-12621-00

Unavailable
