1982 Yamaha TZ250 (TZ250J) Handlebar - Cable Diagram

← All diagrams

Find the part on the Handlebar - Cable diagram for your 1982 Yamaha TZ250 (TZ250J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

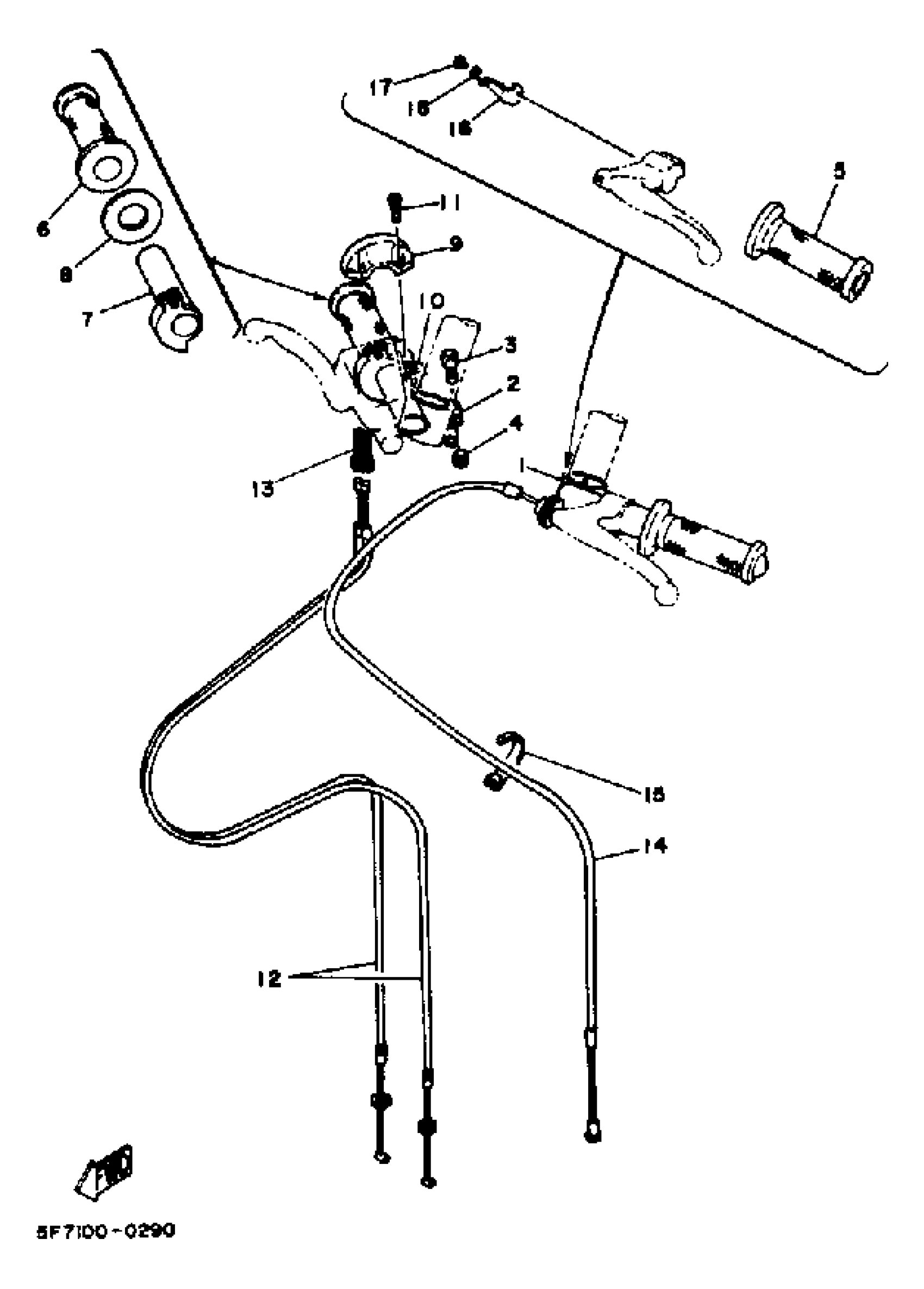

1982 Yamaha TZ250 (TZ250J) Handlebar - Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR LH

5F7-26121-01-00

1
Out of stock

2

HANDLEBAR RH

5F7-26122-01-00

1
Out of stock

3

BOLT

97013-08035-00

1

$4.80

In stock

4

NUT

90185-08055-00

1

$8.31

In stock

5

GRIP (L.H)

47X-26241-00-00

—
Out of stock

6

GRIP (R.H)

47X-26242-00-00

—
Out of stock

7

TUBE, THRTL GUIDE

5F7-26243-00-00

1
Out of stock

8

RING, LEAF

3Y1-26249-00-00

1

$8.54

In stock

9

CAP, GRIP UPPER

3G2-26281-01-00

1
Out of stock

10

CAP, GRIP LOWER

3G2-26282-01-00

—

$38.11

In stock

11

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

12

CABLE, THROTTLE 1

5F7-26311-01-00

1
Out of stock

13

BOLT 177262530100

90123-06007-00

1
Out of stock

14

CABLE, CLUTCH

5F7-26335-00-00

1
Out of stock

15

CLAMP(MF1)

90464-15152-00

1

$4.37

In stock

16

SPRING, LOCK

5F6-26368-00-00

—
Out of stock

17

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

18

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock
