1982 Yamaha TZ250 (TZ250J) Front Fork Diagram

← All diagrams

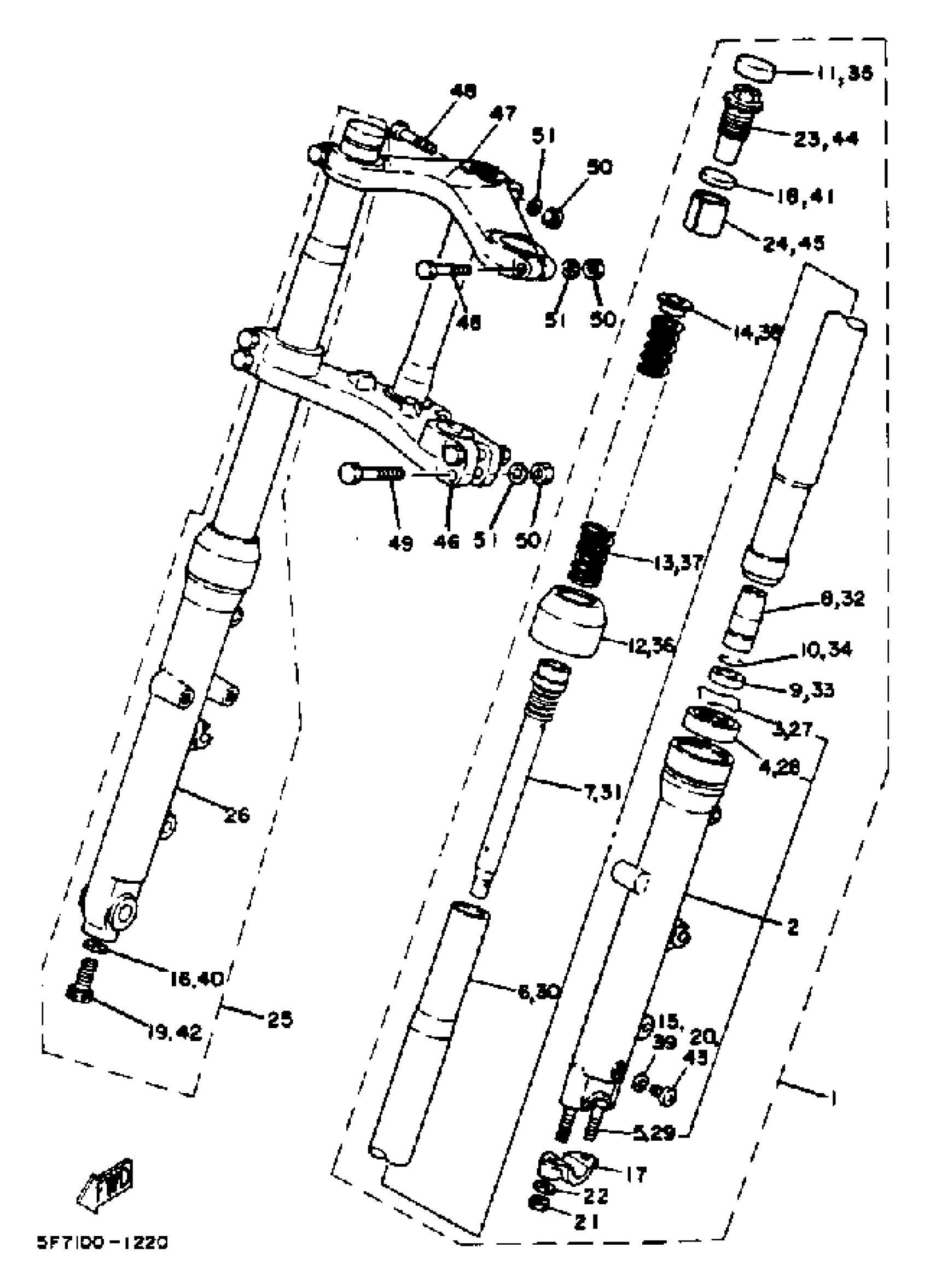

Find the part on the Front Fork diagram for your 1982 Yamaha TZ250 (TZ250J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha TZ250 (TZ250J) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY L

(5F7-23102-01-00)

1
Out of stock

2

TUBE, OUTER 1

(5F7-23126-00-00)

1
Out of stock

3

RING, SNAP

4A1-23156-00-00

1

$4.74

In stock

4

OIL SEAL

4ES-23145-00-00

1

$18.57

In stock

5

BOLT, STUD (278)

90116-08261-00

1
Out of stock

6

BUSH 2

(5F7-22124-00-00)

1
Out of stock

7

CYLINDER, FRTFRK

(5F7-23170-00-00)

1
Out of stock

8

SPINDLE, TAPER

(3G2-23173-00-00)

1
Out of stock

9

CAP, AIR VALVE

(3G2-23184-00-00)

1
Out of stock

10

CIRCLIP

(3G2-23183-00-00)

1
Out of stock

11

. CAP, FRONT FORK

2F0-23168-00-00

1
Out of stock

12

. SEAL, DUST

583-23144-00-00

1
Out of stock

13

SPRING, FRONT FORK

(5F7-23141-00-00)

1
Out of stock

14

. SEAT, SPRING UPPER

583-23142-00-00

1
Out of stock

15

GASKET, DRAIN PLUG

122-23129-00-00

1

$6.37

In stock

16

GASKET

509-23158-L0-00

—

$14.34

In stock

17

HOLDER,AXLE

341-23167-50-00

—
Out of stock

18

. WASHER, SPRING UPR

2H7-23149-00-00

1
Out of stock

19

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

20

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

21

NUT, SELF-LOCKING (3Y2)

90185-08089-00

—

$7.31

In stock

22

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

23

BOLT, CAP

(5F7-23111-00-00)

1
Out of stock

24

SPACER

(1U6-23118-M0-00)

1
Out of stock

25

FRONT FORK ASSEMBLY R

(5F7-23103-01-00)

1
Out of stock

26

TUBE, OUTER 2

(5F7-23136-00-00)

1
Out of stock

27

RING, SNAP

4A1-23156-00-00

1

$4.74

In stock

28

RING, SNAP

4A1-23156-00-00

1

$4.74

In stock

29

BOLT, STUD (278)

90116-08261-00

1
Out of stock

30

TUBE, INNER 1

(5F7-23124-00-00)

1
Out of stock

31

CYLINDER, FRTFRK

(5F7-23170-00-00)

1
Out of stock

32

SPINDLE, TAPER

(3G2-23173-00-00)

1
Out of stock

33

CAP, AIR VALVE

(3G2-23184-00-00)

1
Out of stock

34

CIRCLIP

(3G2-23183-00-00)

1
Out of stock

35

. CAP, FRONT FORK

2F0-23168-00-00

1
Out of stock

36

. SEAL, DUST

583-23144-00-00

1
Out of stock

37

. SPRING, FRONT FORK

5F7-23141-01-00

1
Out of stock

38

. SEAT, SPRING UPPER

583-23142-00-00

1
Out of stock

39

GASKET, DRAIN PLUG

122-23129-00-00

1

$6.37

In stock

40

GASKET

509-23158-L0-00

—

$14.34

In stock

41

. WASHER, SPRING UPR

2H7-23149-00-00

1
Out of stock

42

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

43

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

44

BOLT, CAP

(5F7-23111-00-00)

1
Out of stock

45

SPACER

(1U6-23118-M0-00)

1
Out of stock

46

UNDER BRACKET

(5F7-23340-00-00)

1
Out of stock

47

CROWN, HANDLE

(1H3-23435-00-00)

1
Out of stock

48

BOLT

90101-08263-00

1
Out of stock

49

. BOLT 1

5F7-23346-00-00

1
Out of stock

50

NUT, SELF-LOCKING (3Y2)

90185-08089-00

—

$7.31

In stock

51

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock
