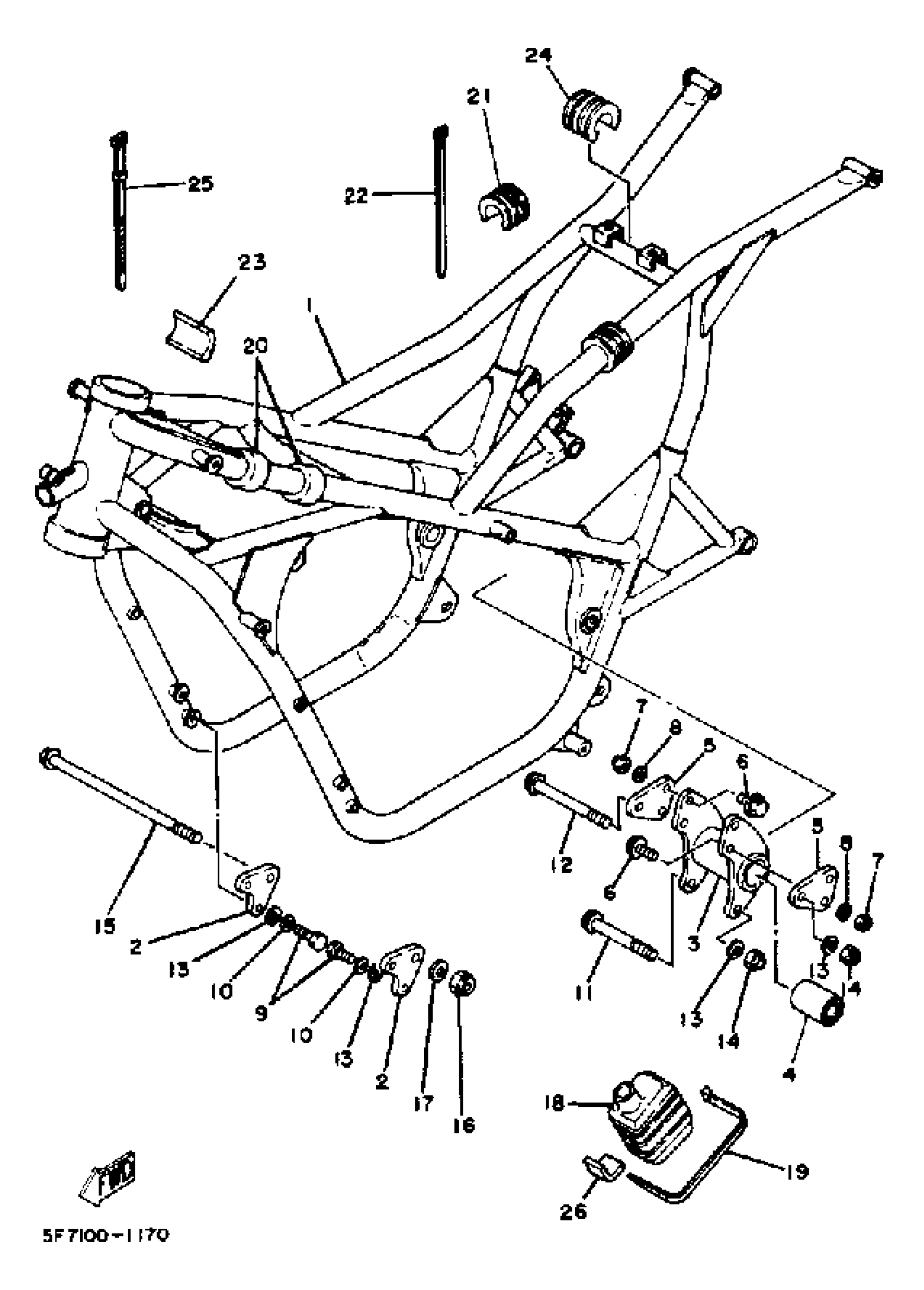

Yamaha TZ250J (TZ250) 1982 FRAME Diagram
#
Description
Price
1
FRAME
(5F7-21110-00-33)
Unavailable
2
BRACKET, ENGINE 1
5F7-21411-00-00
Unavailable
3
BRACKET, ENGINE 2
(5F7-21419-00-00)
Unavailable
4
DAMPER
(5F7-2139X-00-00)
Unavailable
5
BRACKET, ENGINE 3
(5F7-21429-00-00)
Unavailable
11
BOLT, FLANGE
95814-08080-00
Unavailable
12
BOLT,WASHER BASED
90105-08100-00
Unavailable
13
.. WASHER, PLATE
92990-08600-00
Unavailable
15
BOLT, WASHER BASED(4KM)
90105-10780-00
Unavailable
16
NUT, U
95617-10100-00
Unavailable
17
958-69527-00 WASHER, PLAIN
92990-10200-00
Unavailable
18
TANK, OIL
4A0-21751-00-00
Unavailable
19
CLAMP(MF1)
90464-15152-00
Unavailable
20
DAMPER, TANK LOCATING 3
1J7-24183-02-00
Unavailable
21
DAMPER, LOCATING 1
5F6-24181-00-00
Unavailable
22
BAND
1UA-82591-00-00
Unavailable
23
DAMPER,LOCATING 1
240-24181-00-00
Unavailable
24
DAMPER, LOCATING 1
5F6-24181-00-00
Unavailable
25
BAND, SWITCH CORD
437-83936-01-00
Unavailable
26
DAMPER, SIDE COVER
26H-21746-00-00
Unavailable
